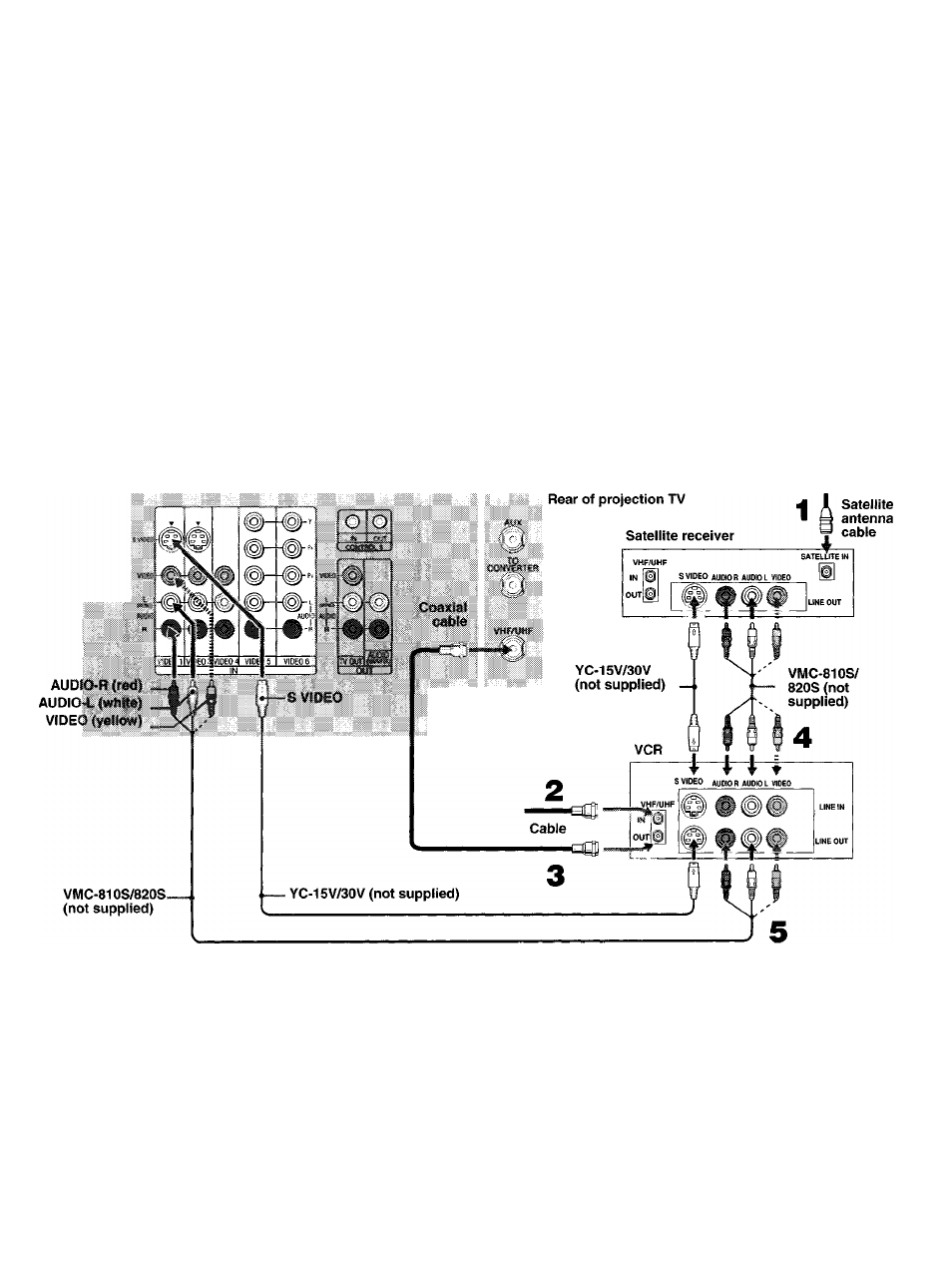

Connecting a Satellite Receiver with a VCR
Installing and Connecting the Projection TV
Disconnect ail power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s VHF/UHF jack.
4
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and
S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
• Be sure your VCR $ video input is set correctly. Consult your VC||'s
operating manual for instructions
* VIDE01 to ¥atch satigliite TV orthe VCR (YOur VCR must be tiimed on).
If your VCR or satellite mceiver is not equipped v/ith S VIDEO, use a
VIDEO cable (yellow) instead of the S VIDEO cable.
