Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if:
□ Your DVD player has component (Y, P
b
, P
r
) jacks.
Disconnect all power sources before making any connections.
1

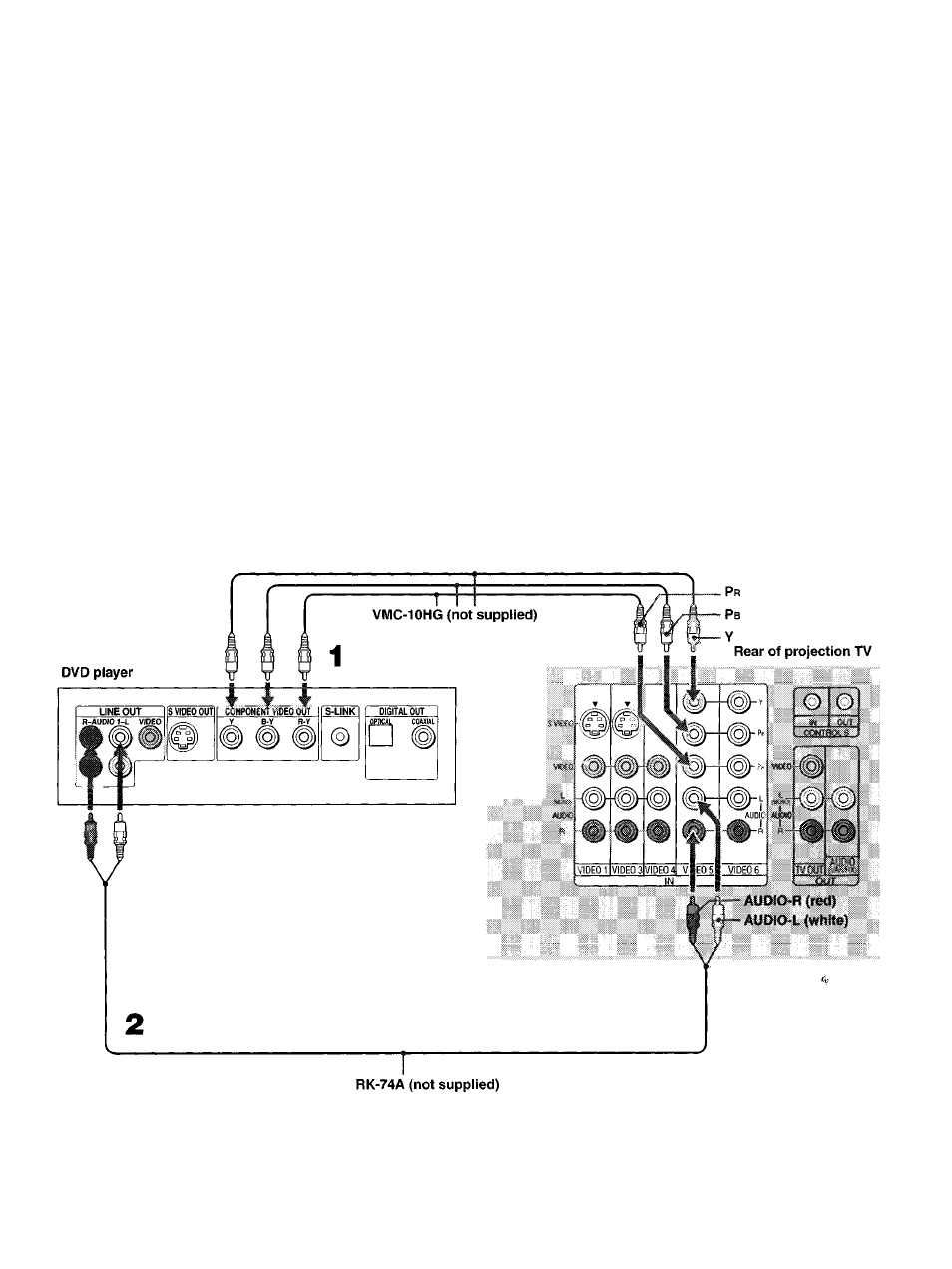

Using three separate component video cables, connect the DVD player’s
Y, P
b
and P
r
jacks to the Y, P
b
and PR jacks on the projection TV. Use
the VIDEO IN 5 or 6 connections.
y
1
'Ihe V. Pu a-id •• • jacHs or. voi.* JVI) piavrr ar« sonetinics laoeied Y,
Cs and C" or Y B-v and R-Y. P so connect tbo cables to like colors.
2
Using an audio cable, connect the DVD player’s Audio OUT jacks to
the projection TV’s AUDIO IN jacks. Be sure to use the same row of
inputs that you used for the video connection (VIDEO IN 5 or 6).
