Installing and Connecting the Projection TV
Connecting a Camcorder
For easy connection of the camcorder, the projection TV has front Audio and
Video inputs (shown below). However, if you prefer, you can also connect
the camcorder to the projection TV’s rear Audio and Video IN jacks.

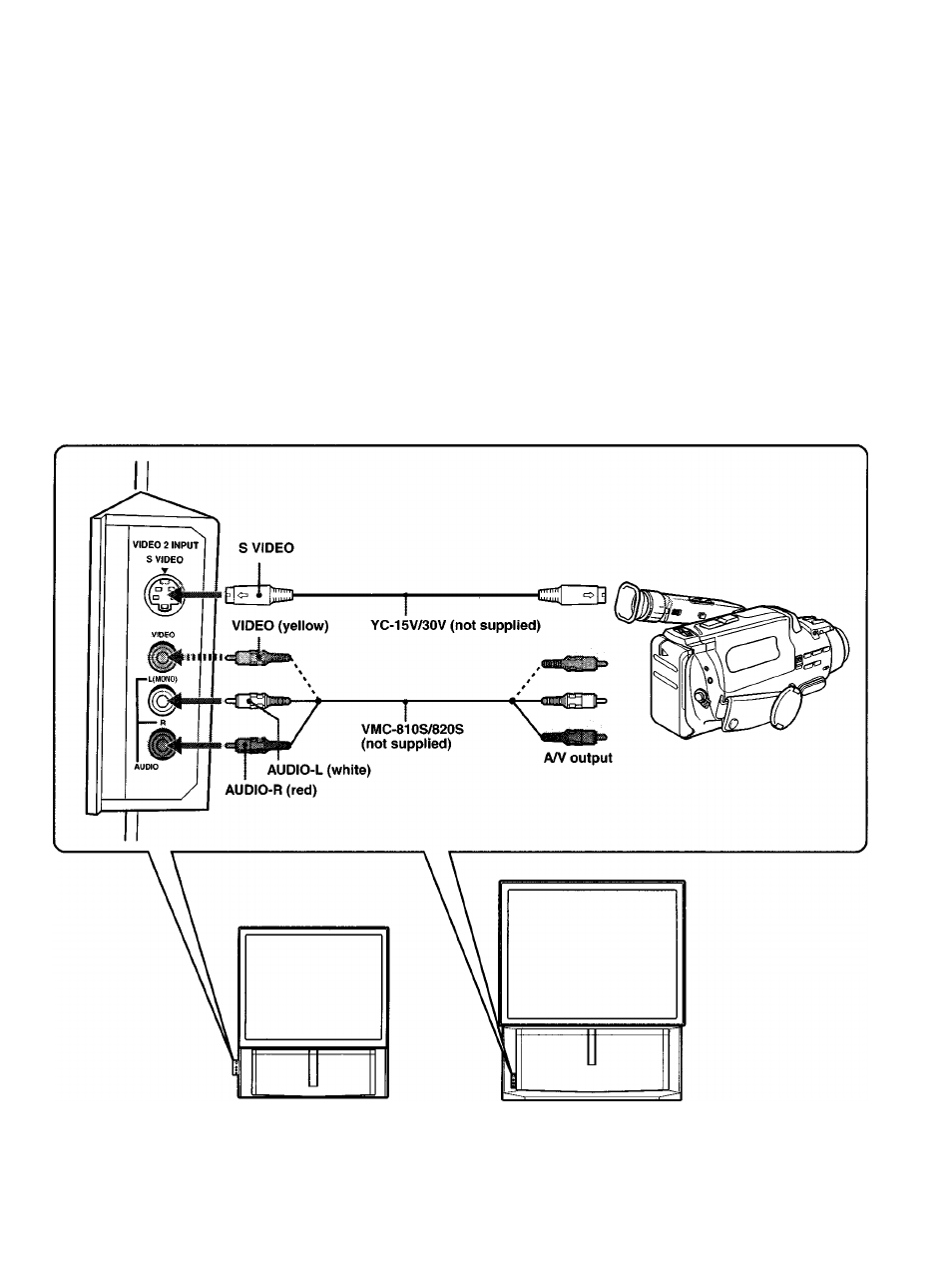

Using AUDIO and S VIDEO cables, connect the camcorder’s Audio and S
VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN jacks.
3
If you h.'ivti a niuiio oarncoicler. connect its left audio output to the
projection TV's AUDIO L jack.
/■ ' If your camcorder is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
