Carrier AQUAZONE 50PSW036-360 - Manual (Page 3)

3
B
C
A
M
L
K
2.5 cm
1
2
3
4
5
6
J
H
G
F
E
D
Required
Service Access
Optional
Service Access
2.5 cm
4.6 cm
1
2
3
4
5
6
Required
Service Access
Optional
Service Access
B
C
A
3.3 cm
6.9 cm
18.5 cm
4.3 cm

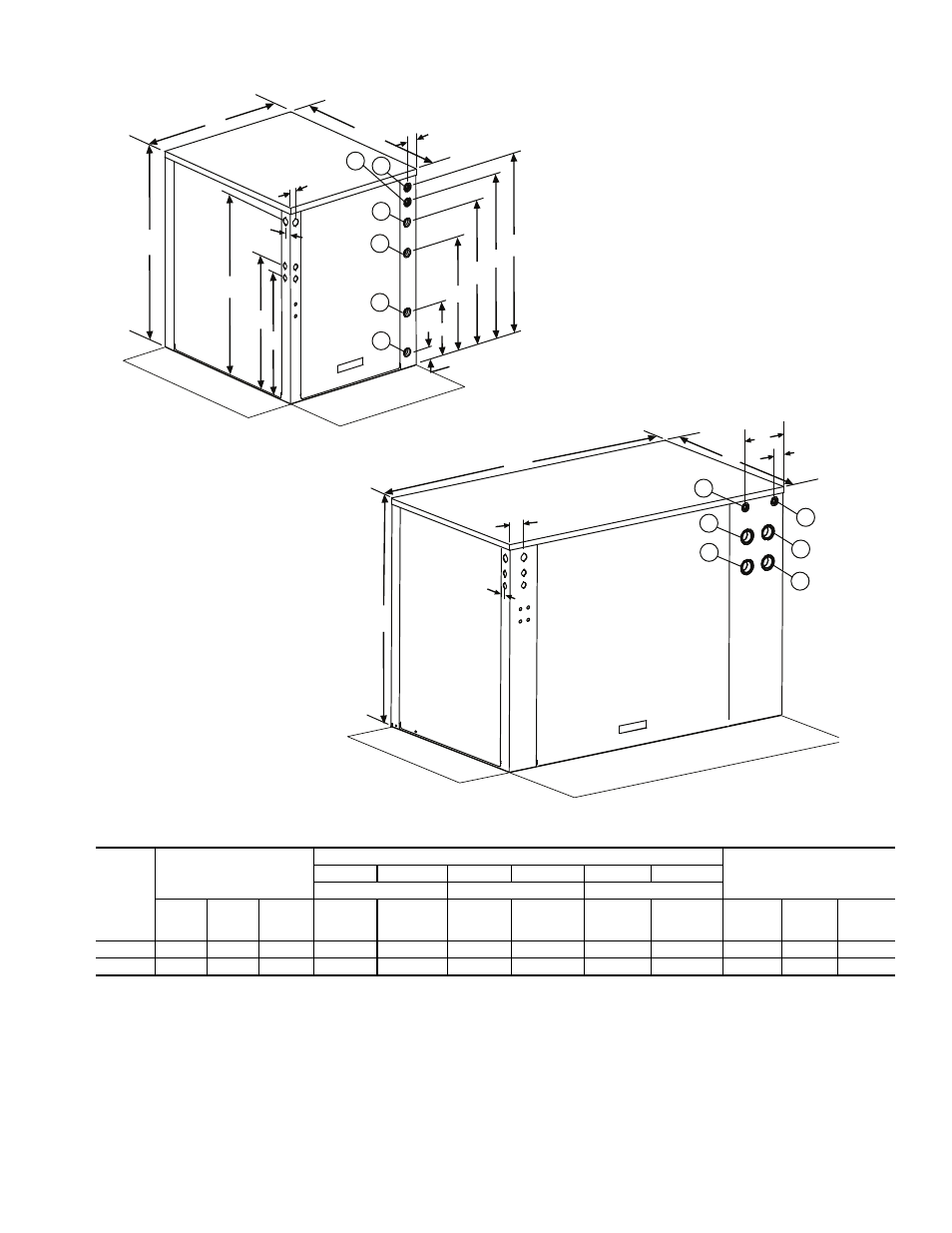

Fig. 1 — 50PSW036-120 Unit
SIZES 036,060
LEGEND
NOTES:
1. Dimensions shown in centimeters unless noted otherwise.
2. HACR circuit breaker in U.S.A. only.
50PSW
UNIT
SIZE
OVERALL CABINET
(mm)
WATER CONNECTIONS (mm)
ELECTRIC ACCESS PLUGS
(mm)
1 2 3 4 5 6
Source (Outdoor) Load (Indoor) HWG
A
Depth
B
Width
C
Height
D
Water In
E
Water Out
F
Water In
G
Water Out
H
Return In
J
Water Out
K
Low
Voltage
L
External
Pump
M
Power
Supply
036,060 778 645 838 69 239 493 622 709 772 531 582 785
120 778 1344 940 640 640 765 765 886 886 759 810 874
HWG — Hot Water Generator
HACR — Heating, Air Conditioning, and Refrigeration
