6.2.4.3 Connection of an incremental encoder and proximity switch on an axis
Connection of an incremental encoder and proximity switch on an axis 6- Drehzahlwaechter_Bsp3_BA
Description
 1 proximity switch, pnp-switching
 1 incremental encoder
 Incremental encoder and proximity switch on one axis

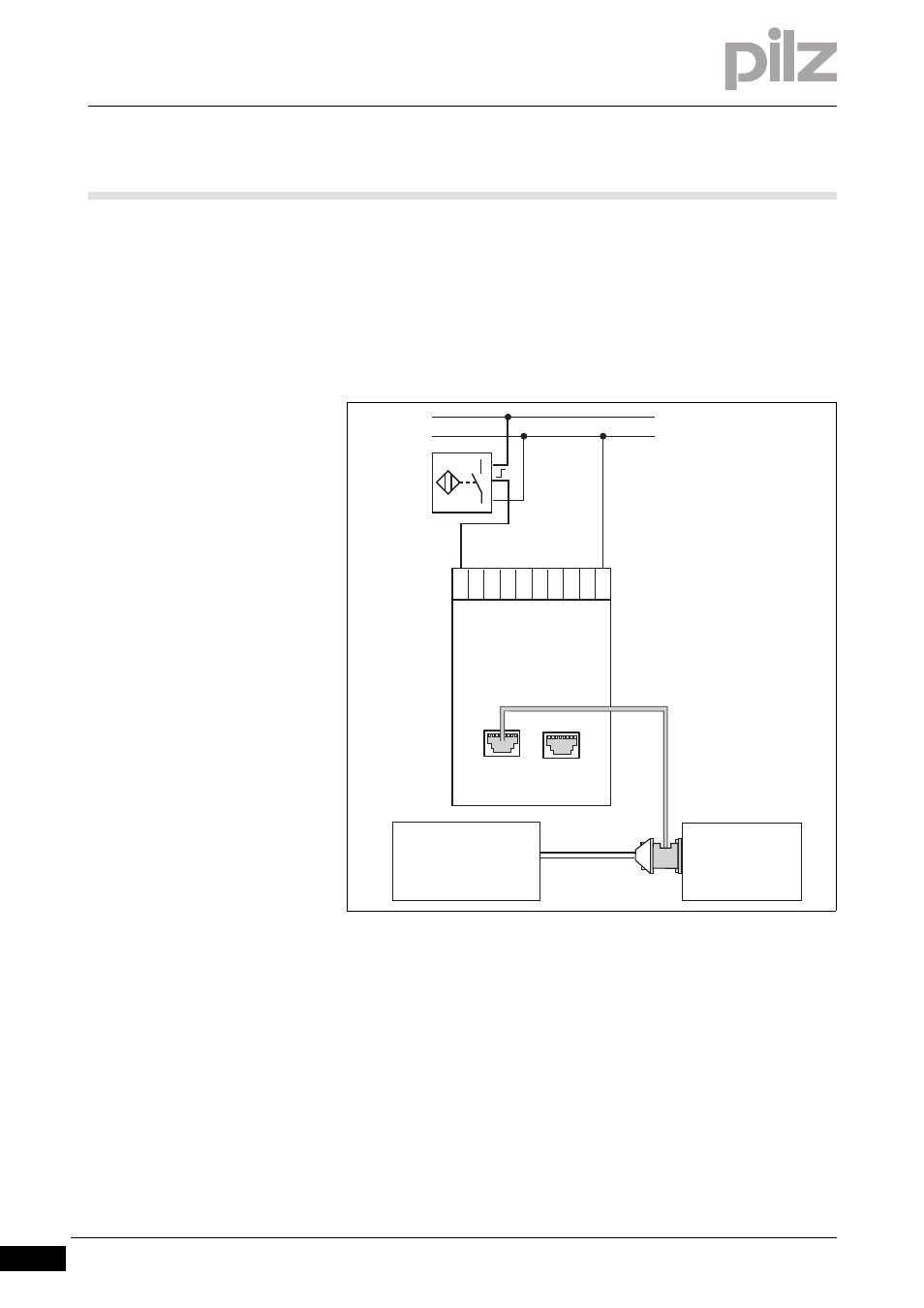

Fig. 6-10: Connection of an incremental encoder and proximity
switch, pnp-switching, on an axis
I10 I11 I20 I21
24V 24V 24V
0V 0V 0V
X22 X12
+
-
Incremental encoder Drive
... PNOZ msi1p ... msi4p ...
24 V DC
0 V
Speed monitor
pnp
