Wiring
Operating Manual PSSu E F DI OZ 2(­T)(­R)
21328­EN­05 23
6 Wiring
6.1 General wiring guidelines
Please note:
} When used for Category 4 applications in accordance with EN 954­1: connect two actu­
ators connected in series within the load circuit!
} The actuators may be connected using unshielded cables.
} The outputs do not need suppression for inductive loads.
} Use copper wiring.
} The terminal configuration as stated on the front plate applies for base modules with C­
rail. The terminal configuration as stated in the technical documentation applies for all
other base modules.
6.1.1 Mechanical connection of the base modules
Procedure:

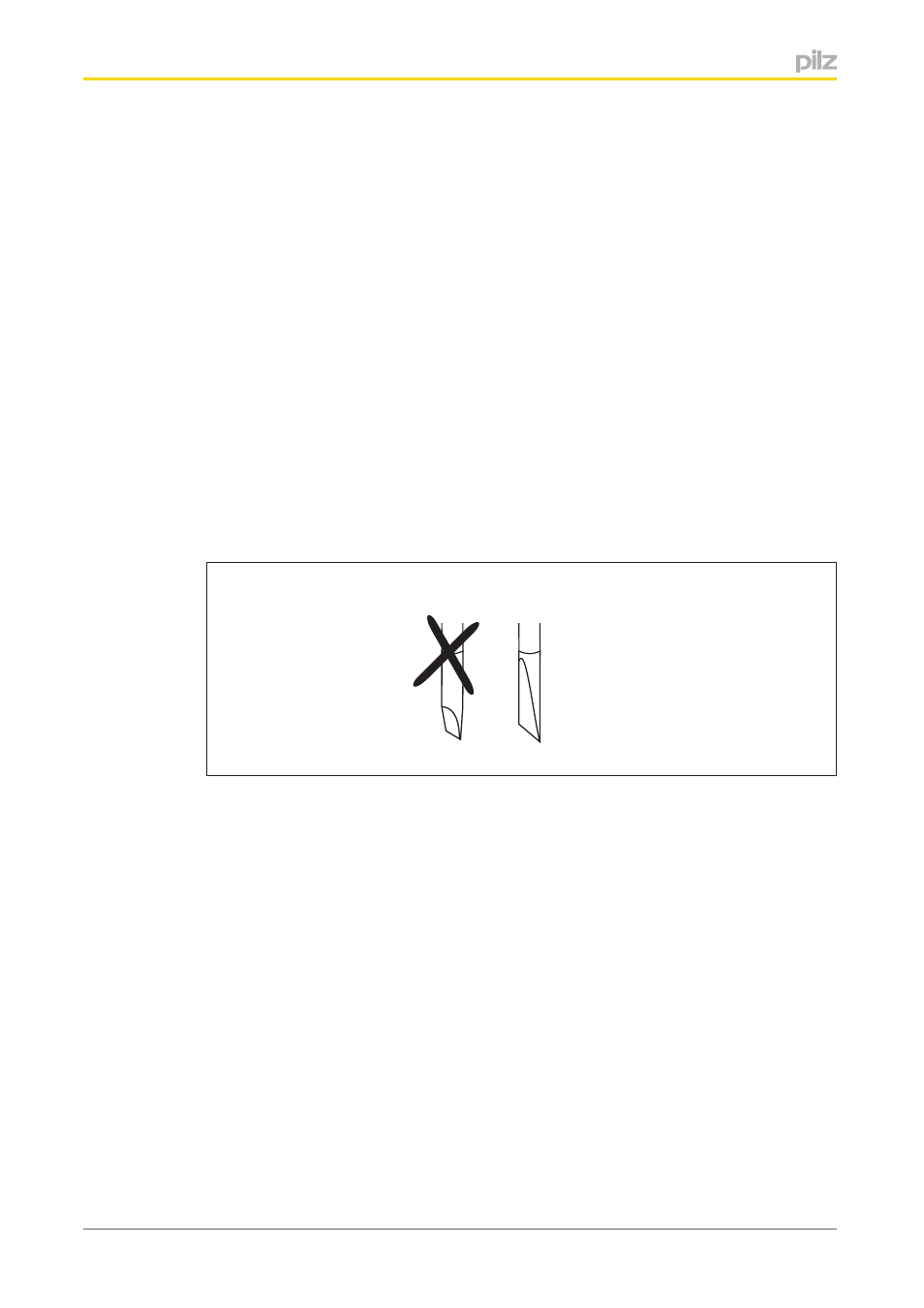

} Use a flat blade screwdriver (DIN 5264­A)!
DIN 5264-A
} Strip the wire back 8 mm.
} If necessary, label the connection level with a colour marker [3].
} Base module with screw terminals:
– Use a screwdriver to loosen the screw on the screw terminal [1]
– Insert the stripped cable into the round fixing hole [2], as far as it will go.
– Tighten up the screw on the screw terminal.
– Check that the cable is firmly seated.
} Base module with cage clamp terminals:
– Insert the screwdriver [4] into the square hole [1].
– Insert the stripped cable into the round fixing hole [2], as far as it will go [5].
– Pull out the screwdriver [6].
– Check that the cable is firmly seated.
