Installation

Operating Manual PSSu E S PD-D
21975-EN-04

18

Removing an electronic module

Procedure:

}

Press the locking mechanisms [1] together simultaneously.

}

Pull out the electronic module [2].

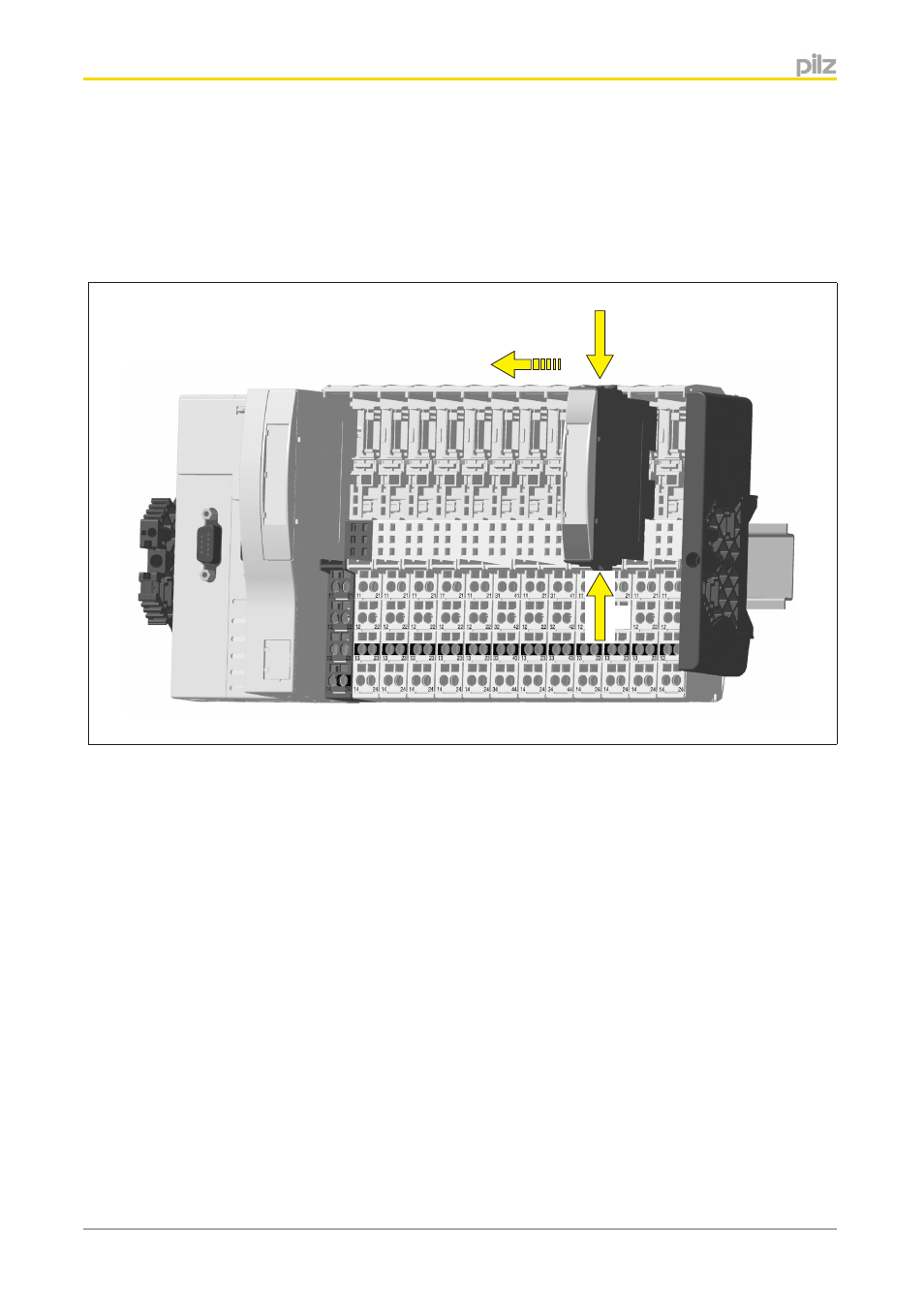

Schematic representation:

[1]

[2]

[1]

5.3.2
