Function description
Operating Manual PMCprotego S1­2(­C)
1002528­EN­02 53
} SS1 Activate: Input for safety function SS1
} STO Acknowledge: Output for feedback from safety function STO
} Setpoint value: Specification of setpoint values
} Enable: Servo amplifier's readiness for operation
SS2 when OPMODE = 0 ... 8
} With the drive­activated safety function "safe stop 2" (SS2), the movement is ultimately
continued.
} The status of the safety card (SS2 activated) is transmitted to the servo amplifier. As a
result, the information is available to a higher level control system (status word).
} The transfer of setpoint values from external servo amplifier interfaces (bus system or
analogue input) is disabled.
} The servo amplifier applies speed­controlled braking with the preset braking ramp until
standstill is achieved.
This status is maintained for as long as safety function SS2 is active.
} If safety function SS2 is deactivated, the status word is updated.
} The servo amplifier automatically switches to the OPMODE that was originally set.
} The transfer of setpoint values from external servo amplifier interfaces (bus system or
analogue input) is once again permitted.
} When OPMODE = 8, the existing motion block can be continued via the "CONTINUE"
command.

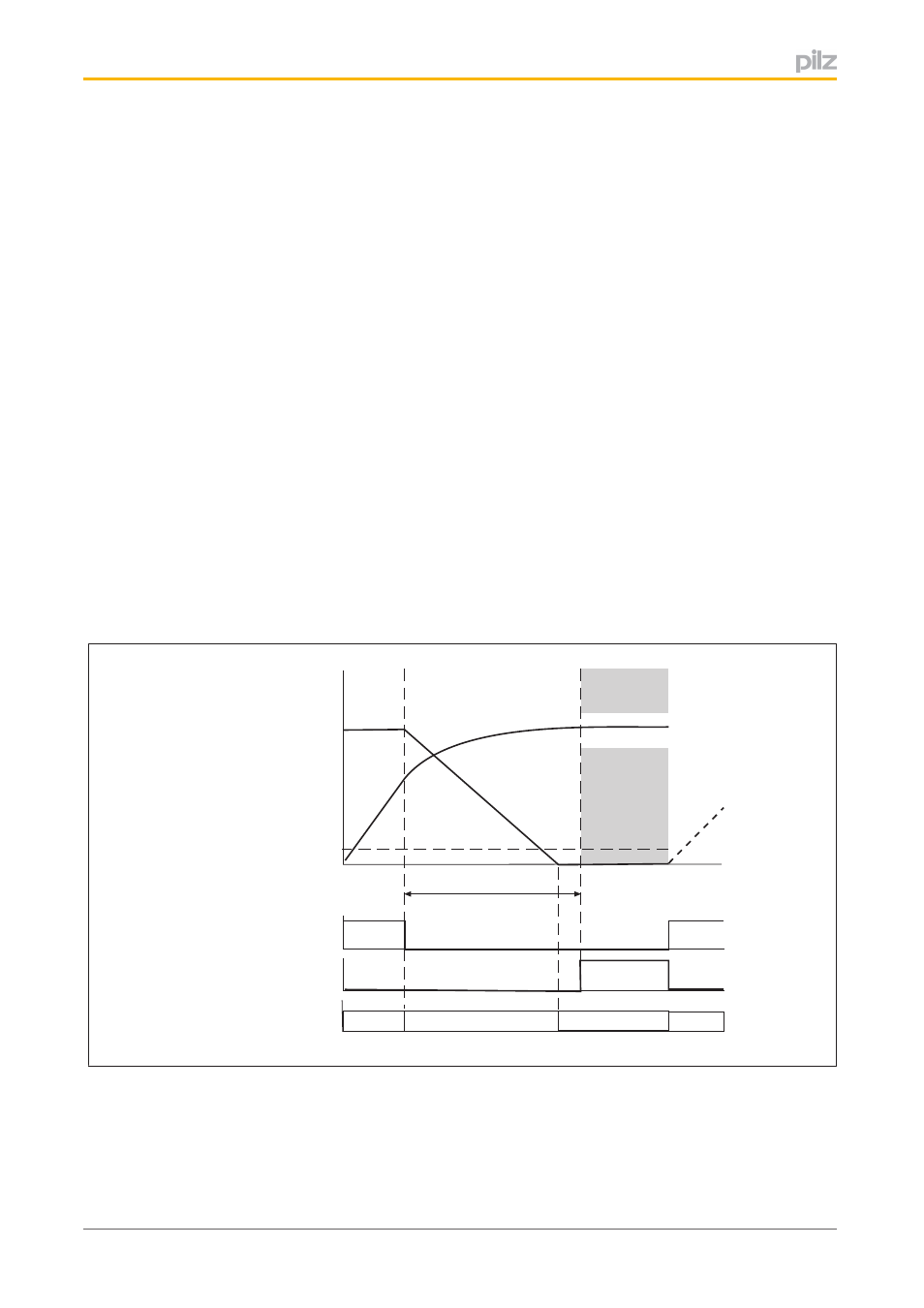

s, v
t t1
SOS delay time
v (t)
s (t)
SOS
t2
SS2 Activate
1
0
Set value
1
0
1
0
SOS Acknowledge
Braking ramp Any Any v = 0
} SS2 Activate: Input for safety function SS2
} SOS Acknowledge: Output for feedback from safety function SOS
} Setpoint value: Specification of setpoint values
