NOTE
For quick response, Nexen recommends a quick exhaust
valve and short air lines between the Control Valves and
the product. Align the air inlet ports to a down position
to allow condensation to drain out of the air chambers
of the product.
CAUTION
Low air pressure will cause slippage and
overheating. Excessive air pressure will
cause abrupt starts and stops, reducing
product life.
All Nexen pneumatically actuated devices require clean
and dry air, which meet or exceeds ISO 8573.1:2001
Class 4.4.3 quality.

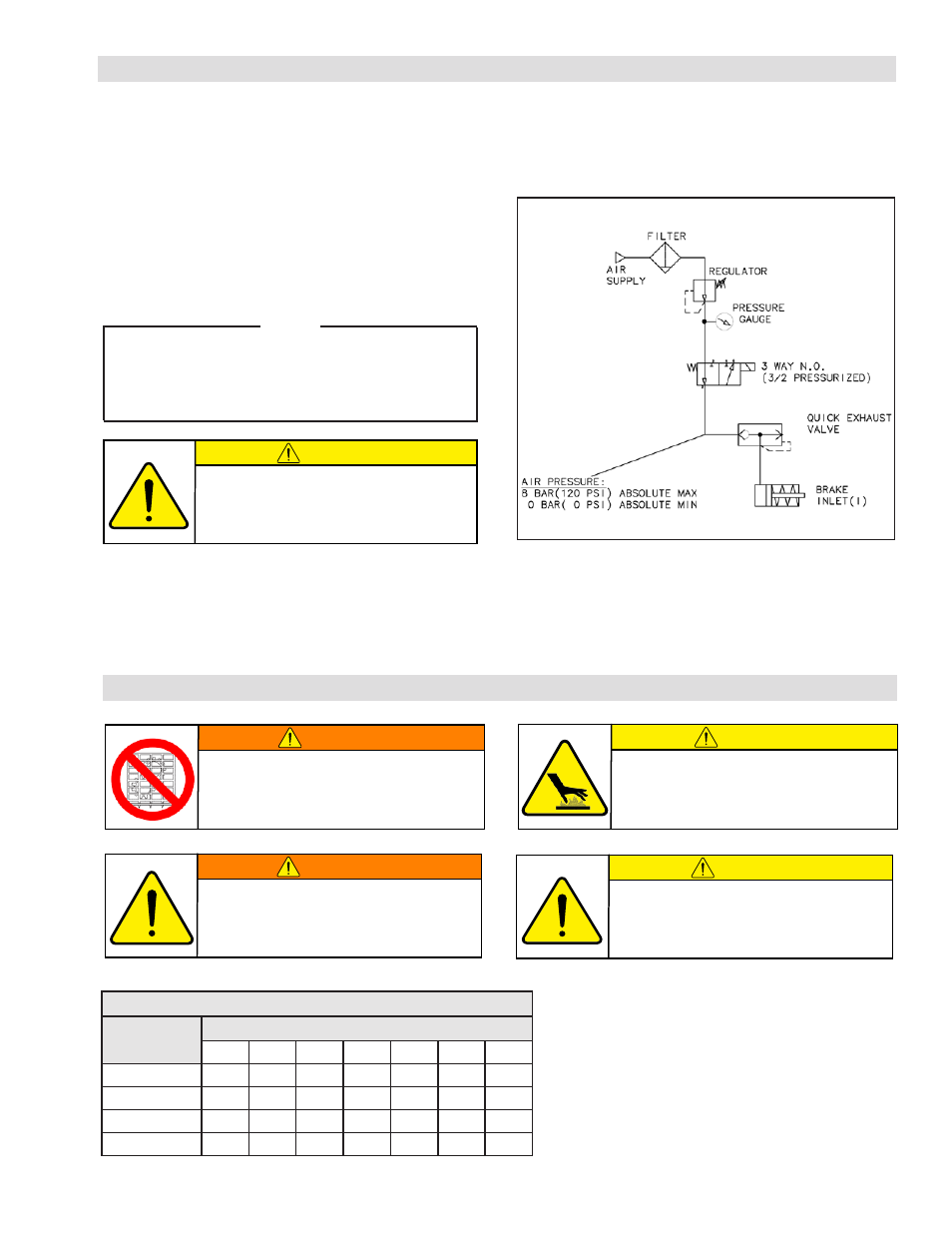

The following is a common air supply scheme used with
this product. This is an example and not an all-inclusive
list. All air circuits to be used with this product must be
designed following EN983 guidelines.
AIR CONNECTIONS
To prevent air line breakage, rest the air line against a support
mounted parallel to the Multiple Disc Clutch.
NOTE: Rigid pipe or tubing when connected directly to the
Multiple Disc Clutch will prevent proper actuation
of the Multiple Disc Clutch. Use only flexible hose
or tubing when making air line connections.
OPERATION
WARNING
Never exceed maximum operating
speeds listed for your product.
(See Table 1).
CAUTION
The temperature limits for this
product line are 4.5-100 Degree
Celsius (40-220 Degree F).
TABLE 1
Max RPM vs. Air Pressure
Air Pressure
(psi)
Clutch Sizes
30 35 40 45 50 60 70
80 1400 1200 800 1000 900 700 700
70 1600 1400 1100 1400 1200 900 900
60 1800 1800 1400 1800 1800 1200 1200
50 --- --- 1800 --- --- 1800 1800
WARNING
Ensure proper guarding of the product is
used. Nexen recommends the machine builder
design guarding in compliance with OSHA 29
CFR 1910 “Occupational Safety and Health
Hazards”.
CAUTION
Never exceed life of facing material. Facing
life depends on the volume of material and
the total energy over the life of the unit.
Expected life (in hrs) can be found by:
Time=Volume/(Power*Wear Rate).
