14
FORM NO. L-20065-K-0110
REPLACEMENT PARTS LIST
The item or balloon number for all Nexen products is used
for part identification on all product parts lists, product
price lists, unit assembly drawings, bills of materials, and
instruction manuals.
When ordering replacement parts, specify model designa-
tion, item number, part description, and quantity. Purchase
replacement parts through your local Nexen Distributor.
* Specify taper or straight bore. Give diameter of straight bore.
ITEM
DESCRIPTION
QTY
1
Hub*
1
2
Rotor Disc
2
3
Cap Screw
3
5
Hex Nut
3
6
Square Key
1
7
Set Screw
2
ITEM DESCRIPTION
QTY
TCB-10 TCB-14 TCB-20
8
Housing
1
1
1
9
Stud Bolt
2
3
4
10
Jam Nut
8
12
16

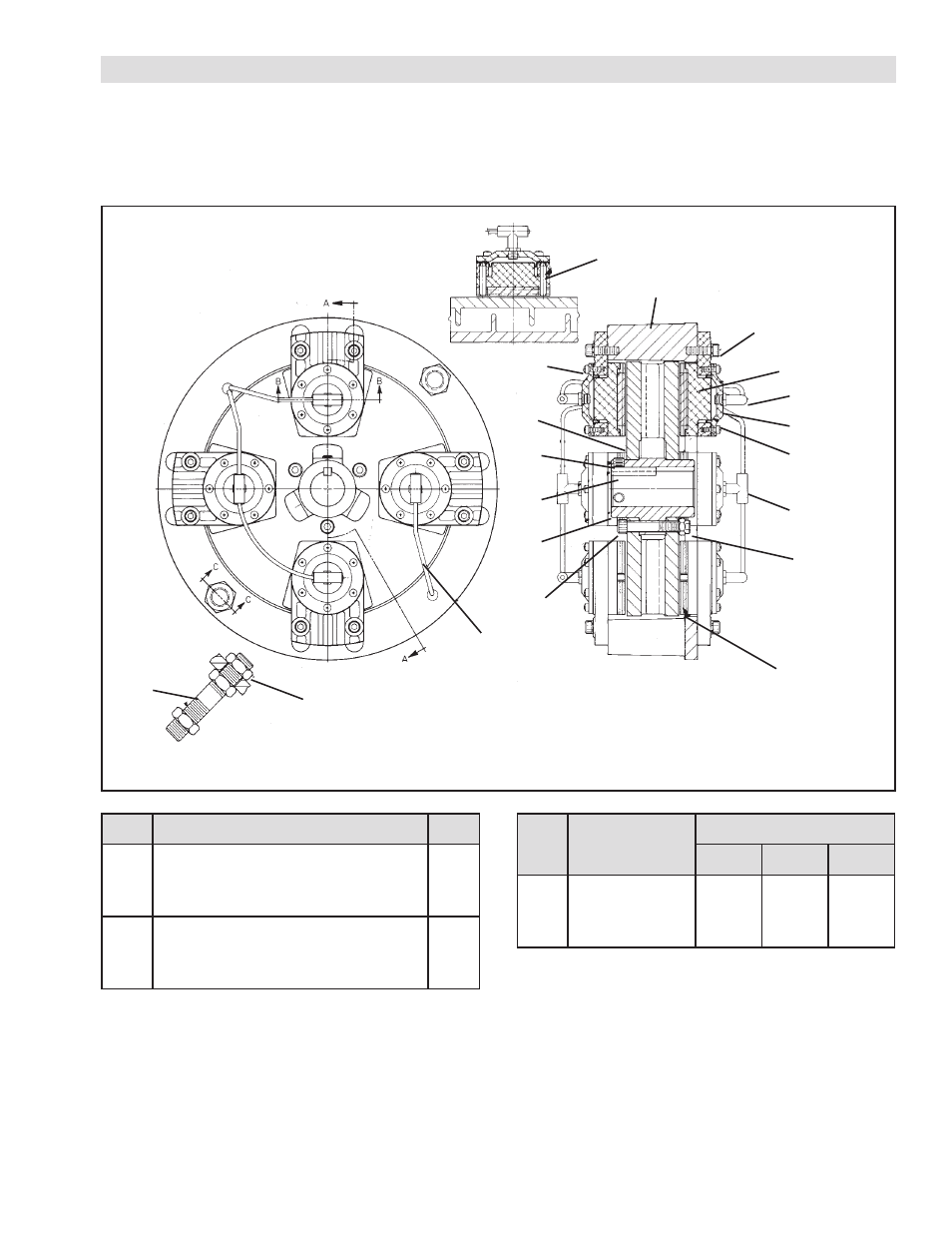

FIGURE 18 TCB FRAME MOUNT
10
9
8
18,19
14
5
Friction
Facing
21
12
13
15
16
3
1
7
6
2
20
17
