Figure 4.3.1
! Attention: in the AV and VGA mode the operate menu have a little difference
compare with DTV and ATV mode.

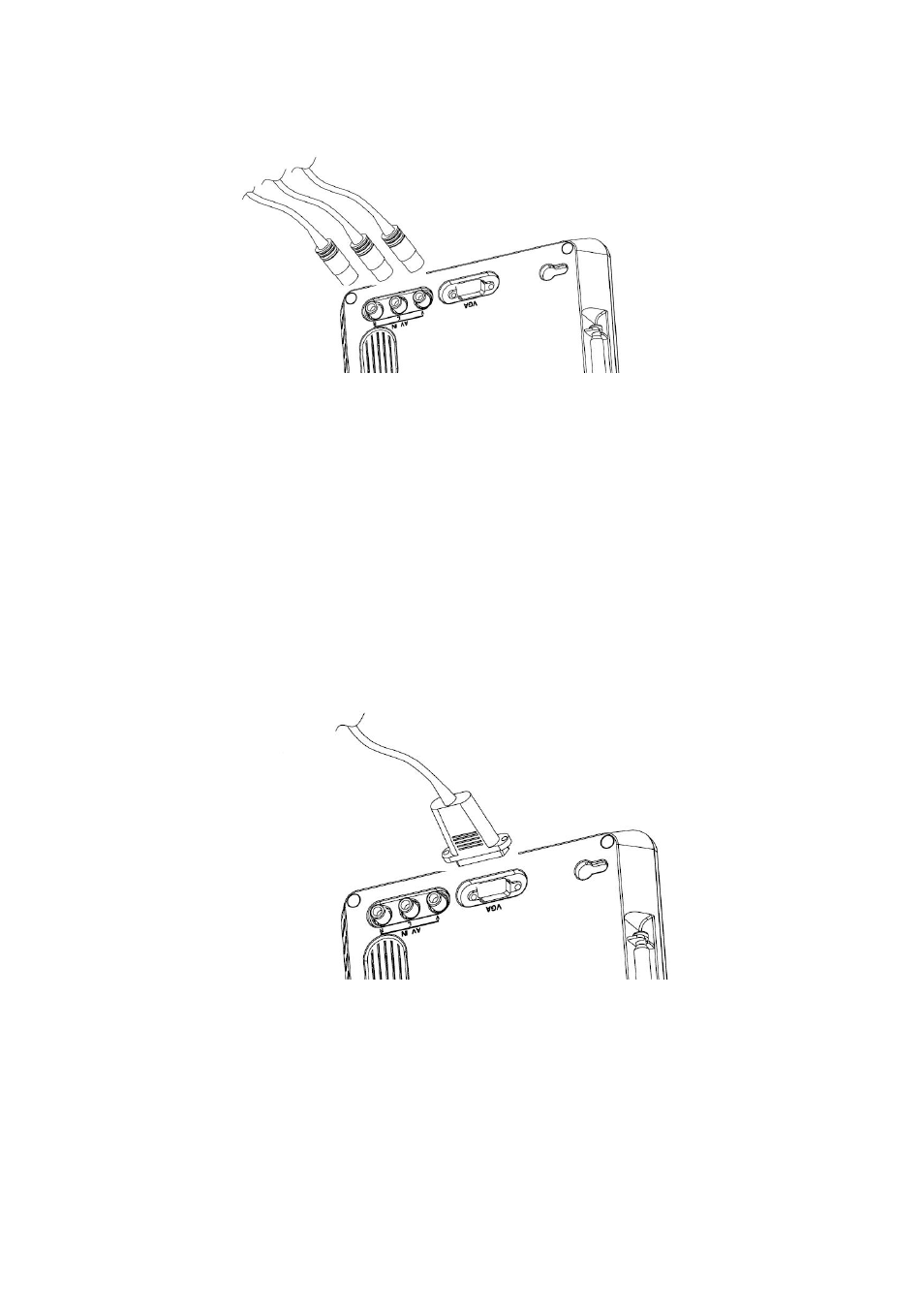

4.4 Connect to PC
Just inset the connect cord to the VGA port of PC, and tighten the screws to keep good
contact, then plug the other end of the cord to the VGA port of the TV set and tighten the
screws as the same.
Then turn the mode to VGA, the screen display as the monitor.
! Attention: The VGA mode only support Standard is 640*480 60Hz and 800*600 60Hz.
Figure 4.4.1
4.5 Multimedia
! Attention: Make sure the memory card into the right slot. If the card is improperly inserted,
it may not function properly.
Press Mode key at the remote control or front panel, and Press CH+/CH- buttons to select
multimedia, press OK button enter.
You can enter the icon by pressing OK key and pressing MENU key to go back to the topper
19
