Fuses and circuits
Fuse panel located behind the coin tray
1
2
3
4
5
6
7
8
9 10 11 12
14
13
15 16 17 18 19
20212223
C00000

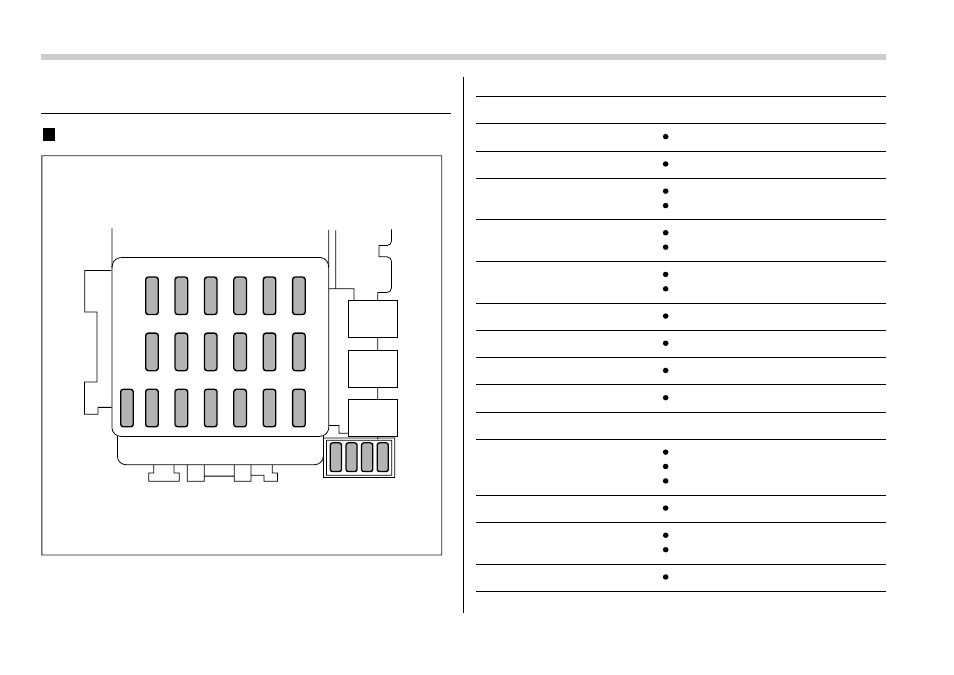

Fuse panel
Fuse rating
Circuit
1
15A
Heater fan
2
15A
Heater fan
3
15A
Power door lock
Remote keyless entry
4
20A
Cigarette lighter
Remote controlled rear view mirrors
5
10A
Tail light
Parking light
6
15A
SRS airbag
7
15A
Fog light
8
20A
ABS solenoid
9
15A
Radio
10
Empty
11
15A
Engine ignition system
SRS airbag
AT control system
12
10A
Illumination brightness control
13
10A
Combination meter
SRS lamp
14
10A
Rear window wiper and washer
