6) Remove the 110 VAC fuse and install the 220 VAC fuse that came with your drive. There is a label
inside the drive that gives the correct fuse values.
7) Place the voltage selector switch in the correct position according to the labels on the printed
circuit board near the switch. See the diagram above.
8) Re-assemble the chassis/PC board assembly to the heat sink/transformer assembly by following
steps 4 & 5 in reverse. Again, pay close attention to the correct orientation of the two sets of wires
connecting these assemblies.
9) Install and tighten the screws removed in step 3. Use the correct length screw according to the
hole location.
You are done converting your drive to 220 VAC operation and
are now ready to install the AC line cord.
CN1 110V
220V
F1
CN3
C23
CN1 110V
220V
F1
CN3
C23
FUSE
110/220 VAC
SWITCH
AC POWER
CONNECTOR
PC BOARD

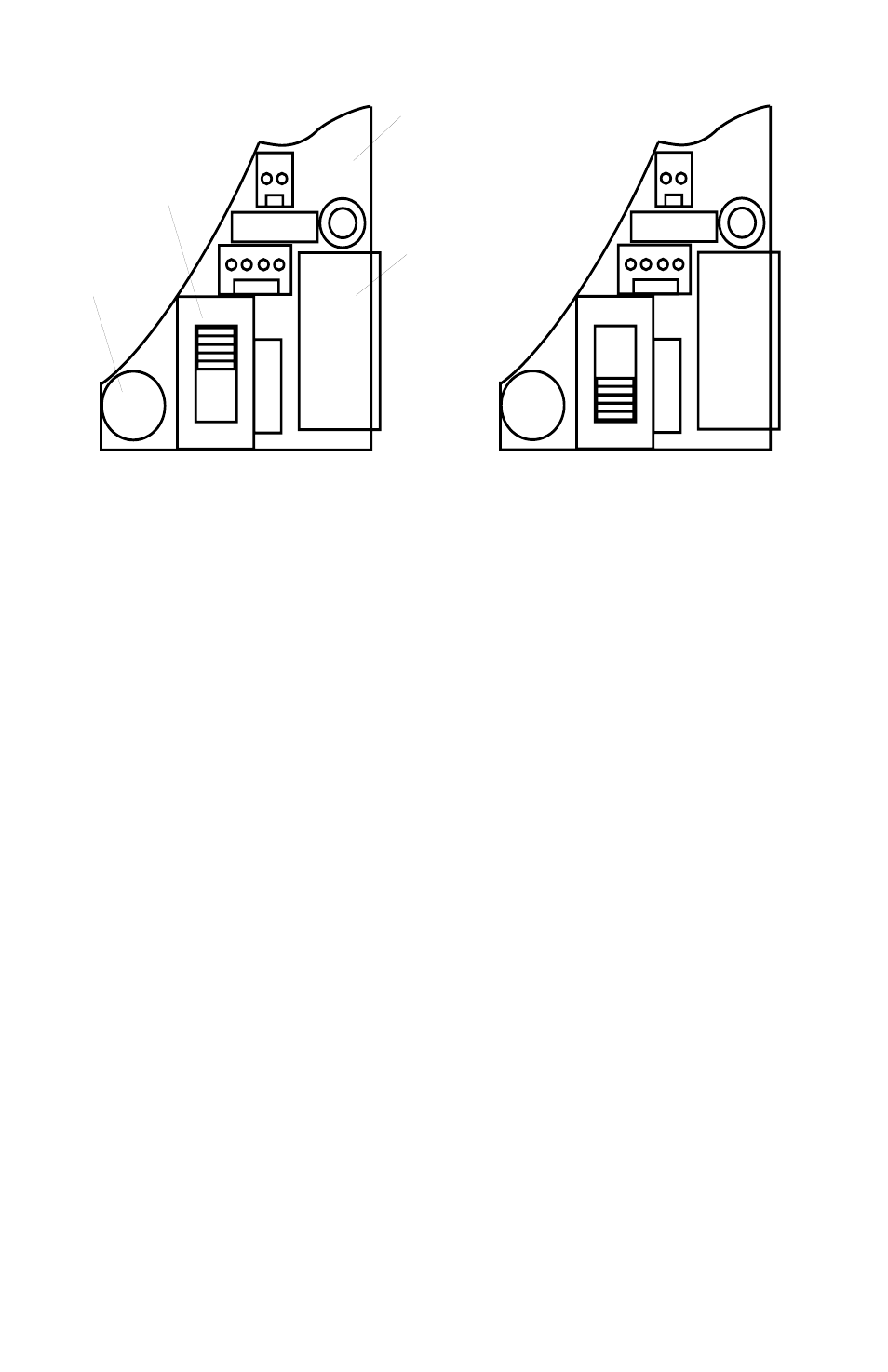

Switch set for 220 VAC Switch set for 110 VAC
