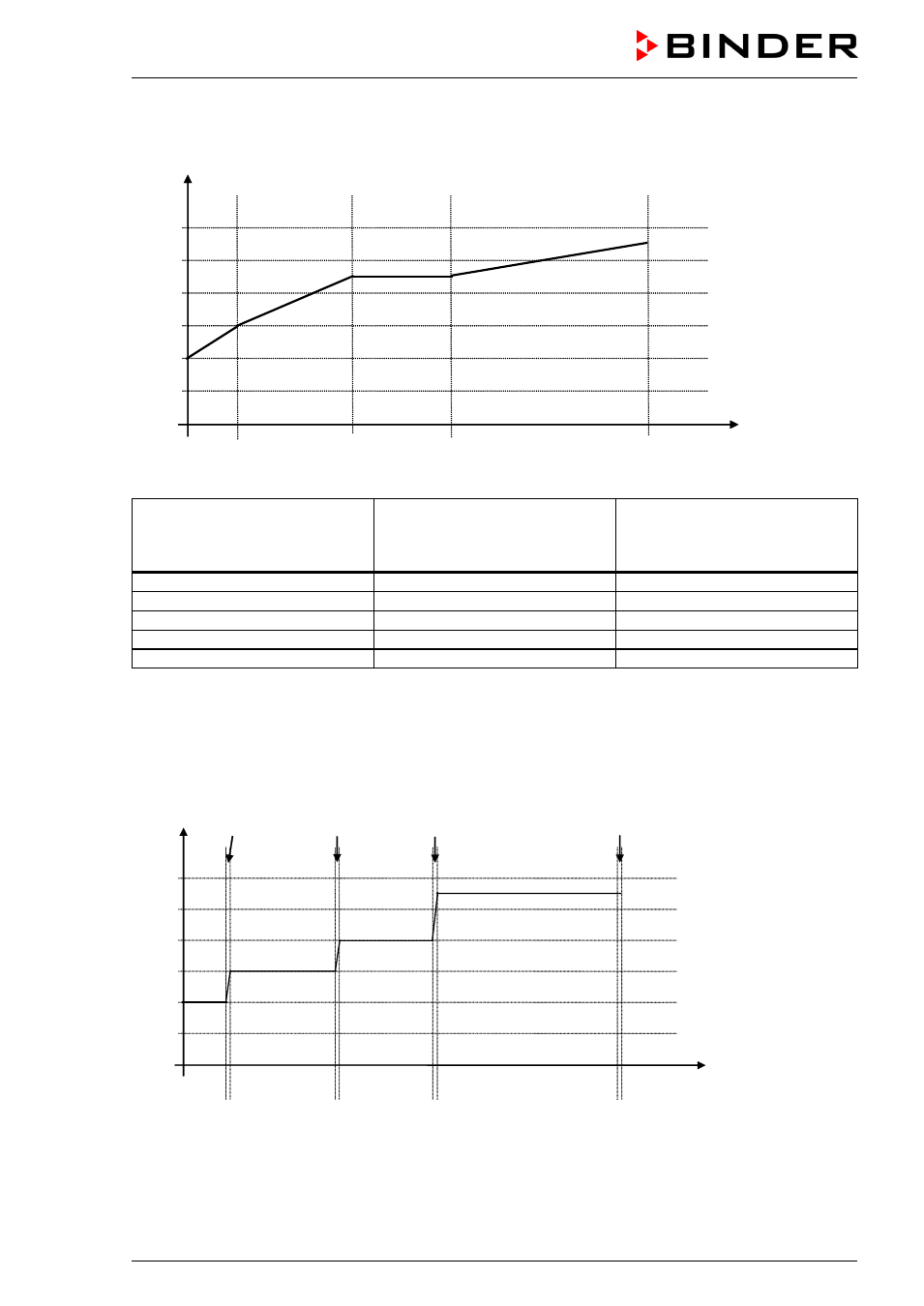

Program entry as set-point ramp (example):
W/°C
t/min.
S01 S02 S03 S04
0
20
40
60
80
100
30 120 180 380
S05
Program table corresponding to the diagram (with default setting “Ramp”):
Section
SEC
Temperature
set-point
[ °C]
TEMP
Section length
[hh.mm]
TIME
S01 40 00:30
S02 60 01:30
S03 90 01:00
S04 90 03:20
S05 110 00:01
The values of such a program table can now be entered to the RD3 program controller (chap. 8.2).
Program entry as set-point step (example):
W/°C
t/min.
S01 S02 S03 S04 S05 S06 S07 S08
0
20
40
60
80
100
30 120 180 380
