The unit is only active when the reset button (2b) is pushed in.
When the safety thermostat class 2 responds, the red alarm lamp (2a) illuminates, the reset button (2b)
pops out and the unit turns off permanently at all poles. Only the fan keeps turning for safety reasons.
Check the safety thermostat regularly and adjust it following changes of the set-point.
Fixed value operation: Adapt the temperature safety device every time the set-point for
temperature is changed. Set the set-point of temperature safety device by about 5 °C to 10
°C above the controller temperature set-point.
Program operation: Adapt the temperature safety device to the highest temperature set-
point value of the program actually used.
Functional check:
Test the functional capability of the safety thermostat at appropriate intervals. It is recommended having
this check performed by the authorized service personnel, e.g. before the beginning of a long working
process.
12.2 Exhaust air monitoring
If the volumetric flow rate of the exhaust air is too low, the heating and fan turn off immediately for safety
reasons. The indicator light “AIR” (3) lights up. As an additional indication there is an acoustical signal
which can be reset on the controller. The visual alarm message “RESET ALARM” on the controller is
shown until the next release of the heating.

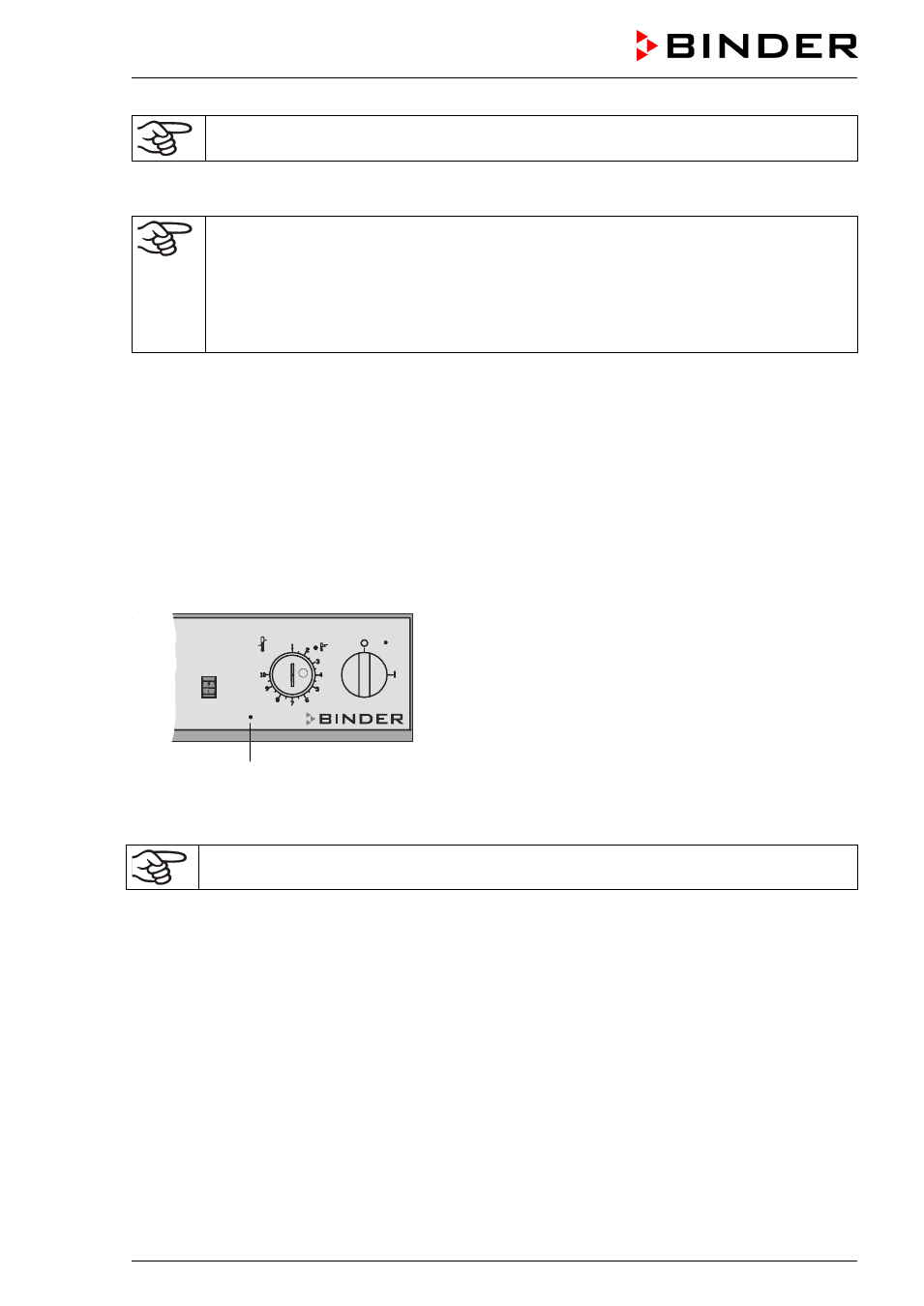

(3)
(3) Red indicator light “AIR”: loss of technical ventilation
Figure 10: Instrument panel (detail)
It is the operator’s responsibility to ensure that the doors of drying ovens are opened immediately on fail-
ure of the technical ventilation system (GUV-R 500 chap. 2.28).
On failure of the technical ventilation, open the door of the safety drying oven.
AIR START
