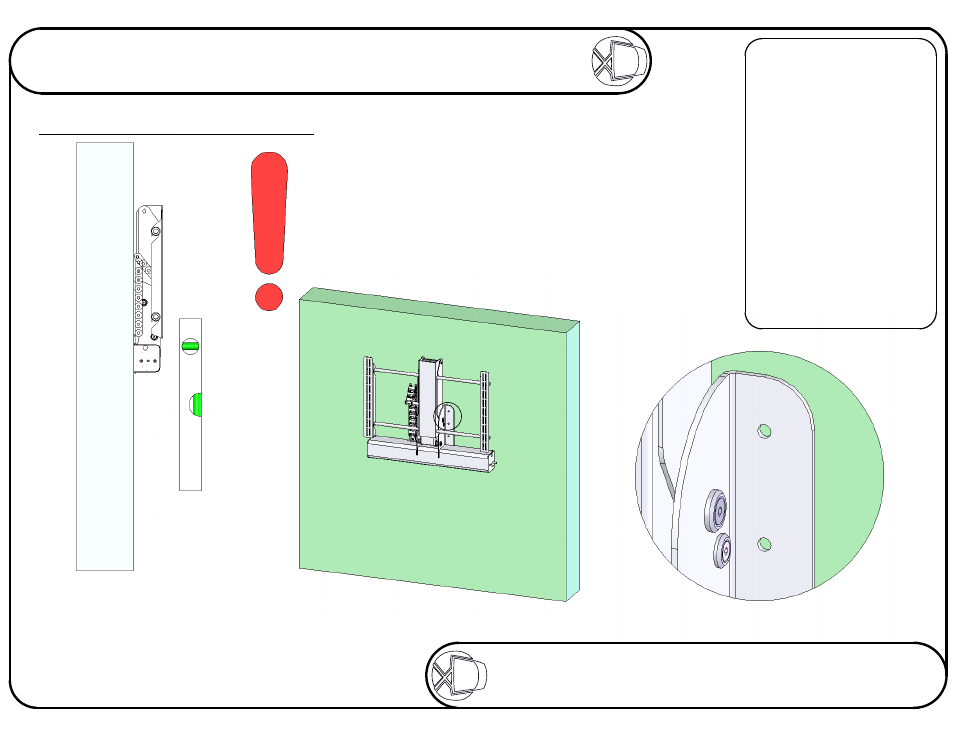

The EAD must be completely vertical.
Make sure with the use of a spirit level
that the wall behind is vertical. If it is not,
you will have to use washers / spacers
behind the wall plates in order to make
the mechanism completely vertical.
A
DETAIL A
Sheet 2 of 8
ISSUE: 003
www.futureautomation.co.uk
FUTUREAUTOMATION
EAD
Electric Advance & Drop
Instruction Sheet
Fitting The Mechanism To The Wall
Always use appropriate
fixing types.
Suitability of wall fixings will
depend on the type of
wall the product is to
be fixed to.
If unsure, please seek
instruction from your
supplying dealer.
