PICH - Picture Lift Heavy Mechanism
Adjusting the stop position
To adjust the top and bottom limits of the mechanism, start by making sure that both the
WHITE and YELLOW buttons are fully depressed.
Press IN on the remote control so the mechanism lowers. When the desired position is
reached hit STOP on the remote control. Then press the YELLOW button so that it pops
out, this sets the down limit position.
Carry out the same procedure with the WHITE button when raising the mechanism to set
the upper limit position, labeled OUT on the remote control.

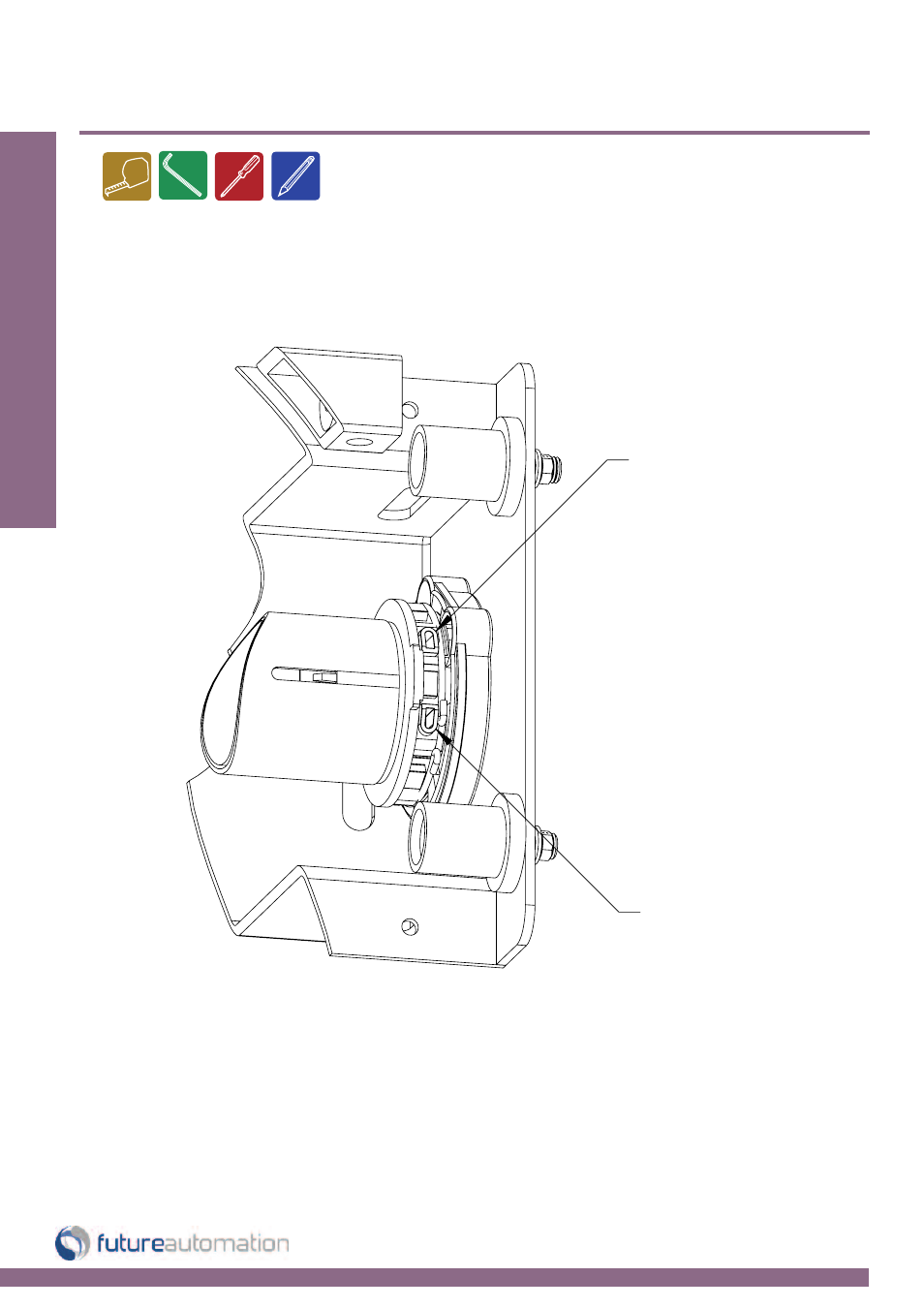

The view below is one where the left hand upright has been removed, although it is not
necessary to remove the upright in order to gain access to the controls. If removed, the
two switches will become visible, as shown below.


YELLOW BUTTON
WHITE BUTTON
