Technical Information
Ilumipanel 180 IP Optic 15/30 RGBWA User Manual Rev. 12 21
Filename: Ilumipanel 180 IP Optic RGBWA
single head 15 degree at full
Manufacturer: ILUMINARC
Luminaire: Ilumipanel 180 IP Optic RGBWA single
head 15 degrees
Luminaire Cat: 13180000
Lamp: 22 Red, 20 Green, 24 Blue, 12 Amber,
12 White
Lamp Output: 1 lamp(s), rated Lumens/lamp: 7960
Max Candela: 66,976.5 at Horizontal: 75, Vertical: 5
Input Wattage: 301.2
Luminous Opening: Point
Test: 20101207RGBWA15
Test Lab: Iluminarc R&D Optics Laboratory
Photometry : Type B
CIE Class: Direct
Cutoff Class: Full Cutoff

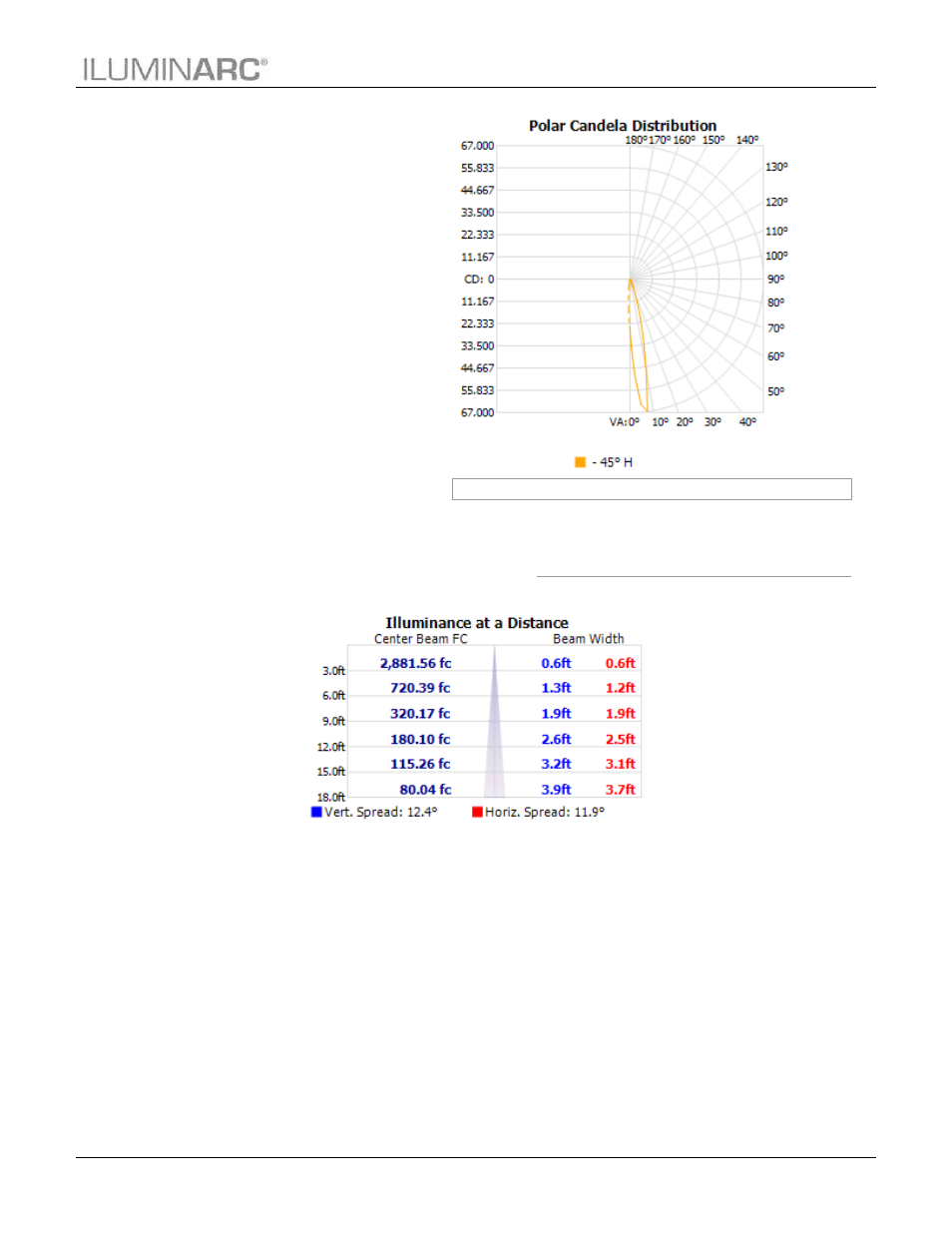

Flood Summary
Efficiency Lumens
Horizontal
Spread
Vertical Spread
Field (10%): 46.2% 3675.8 25.9 25.1
Beam (50%): 19.4% 1547.4 11.9 12.4
Total: 64.9% 5,168.4
Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc.
Reported data calculated from manufacturer's data file, based on IES recommended methods.
