4. LOCATION OF PARTS AND CONTROLS
LOCATION OF PARTS AND
CONTROLS
All control elements give direct access.
In menu modes the LCD-panel shows specific functions.

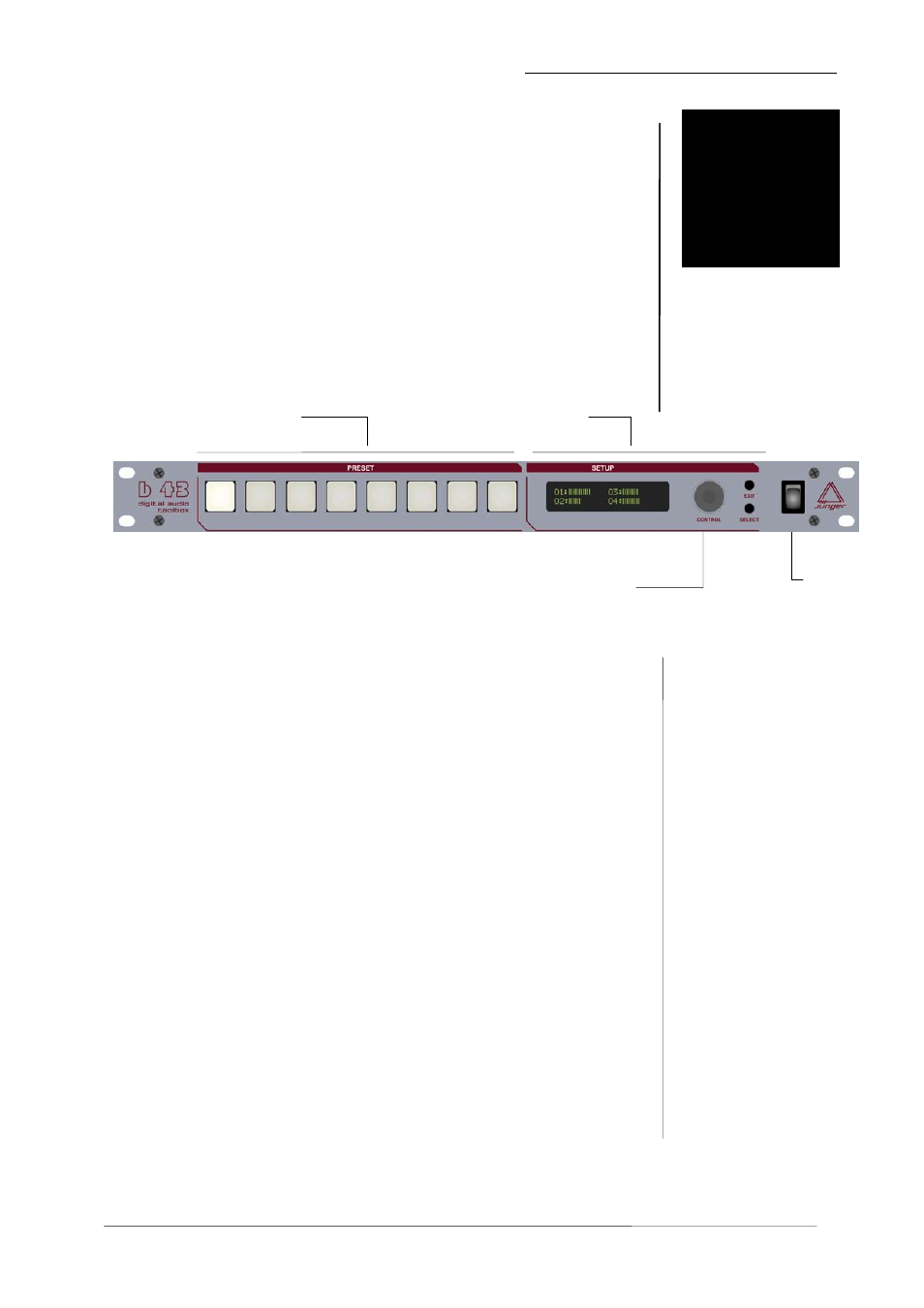

fig1: front panel b43
PRESET 1...4
selection of presets 1...4
CONTROL
selection (push) and adjustment (turn)
of parameters
SELECT
selection of menus (for adjustment of
parameters)
EXIT
exit of adjustment menus and return to
level display
4.1.
FRONT PANEL
CONTROL
ELEMENTS
4
preset
buttons
Adjustment knob,
select und escape
buttons
setup
section
mains
switch
Operation manual b43, chapter 4 -location of parts and controls- page 4-1
