User's Manual CA 106
KLING & FREITAG GMBH ©1995 - 2006 Version 5.1, 09.11.2006 Page 15 of 26

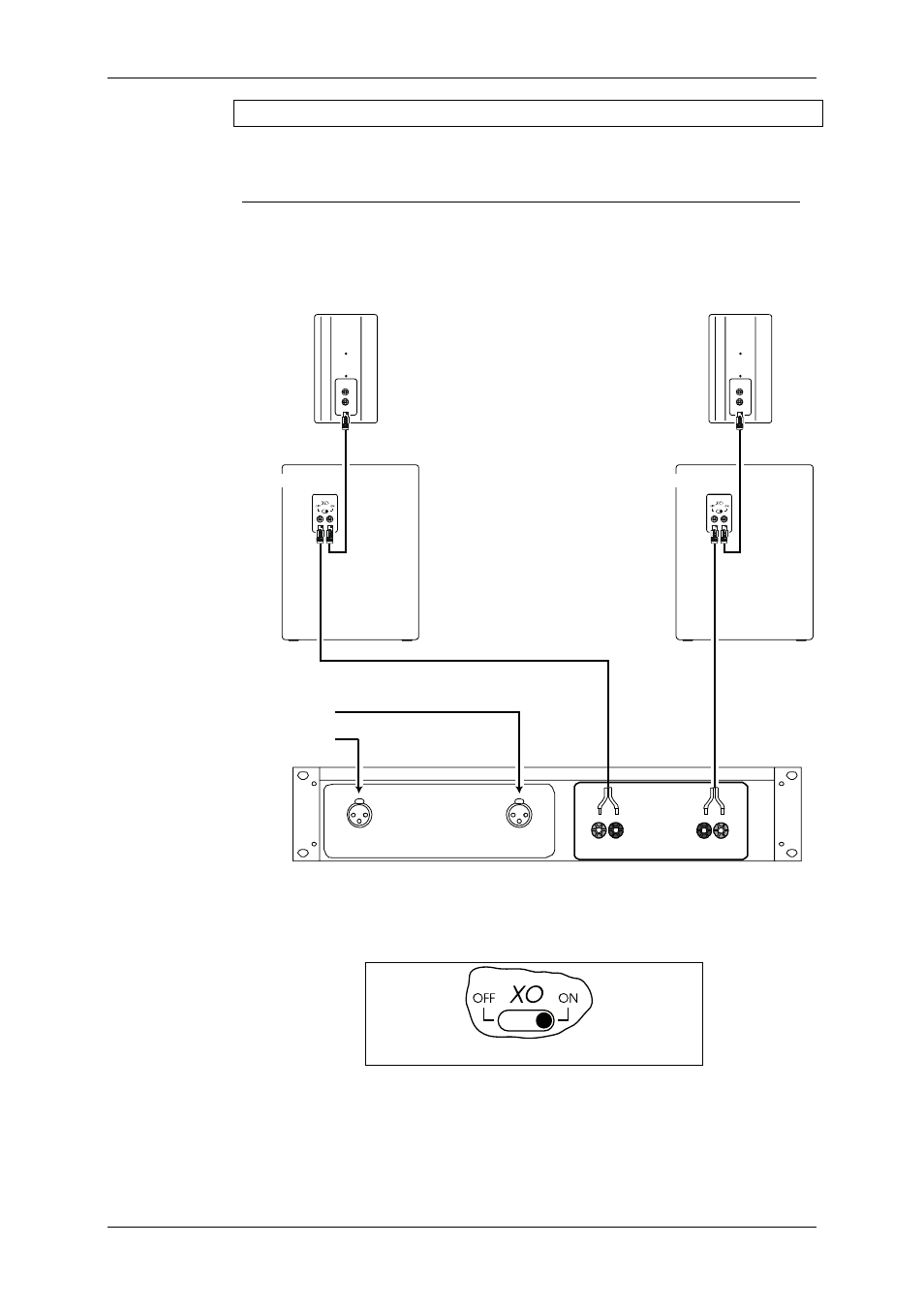

9.1.2 Full Range Mode & Subwoofer with Crossover (XO)
Full Range Mode & Subwoofer with Crossover (XO) Full Range Mode & Subwoofer with Crossover (XO) Full Range Mode & Subwoofer with Crossover (XO)
In this mode of operation you can easily realise applications, where a higher bass level is
needed.
Recommended combinations of CA Systems, as described here, with K&F subwoofers:
2 CA 106 systems: 1 - 2 x SW 112-XO
2 - 4 CA 106 systems: 1 x SW 115D-XO
2 - 4 CA 106 systems: 1 x SW 115E-XO
2 - 4 CA 106 systems: 1 x SW 118E-XO
INPUT CH 2 INPUT CH 1
OUTPUTS
CH 2 CH 1
- + - +
INPUT e.g. from
mixer, AUX or
Connector Panel
Switch To 'XO ON' Switch To 'XO ON'
The switch ‘XO’ on the connecting terminal of the subwoofer must be at ‘XO ON’ for
this mode of operation:
Switch on the subwoofer’s connecting terminal
When using the CA 106 systems in a cluster (speakers in close proximity), reduce the
frequencies below 300 Hz by 3-4 dB. (The K&F C2 Controller is equipped with a special
filter for this purpose, which can be activated by pressing the "Top-Low Cut" switch.)
