SLR™ Quick-Lock™ Articulator

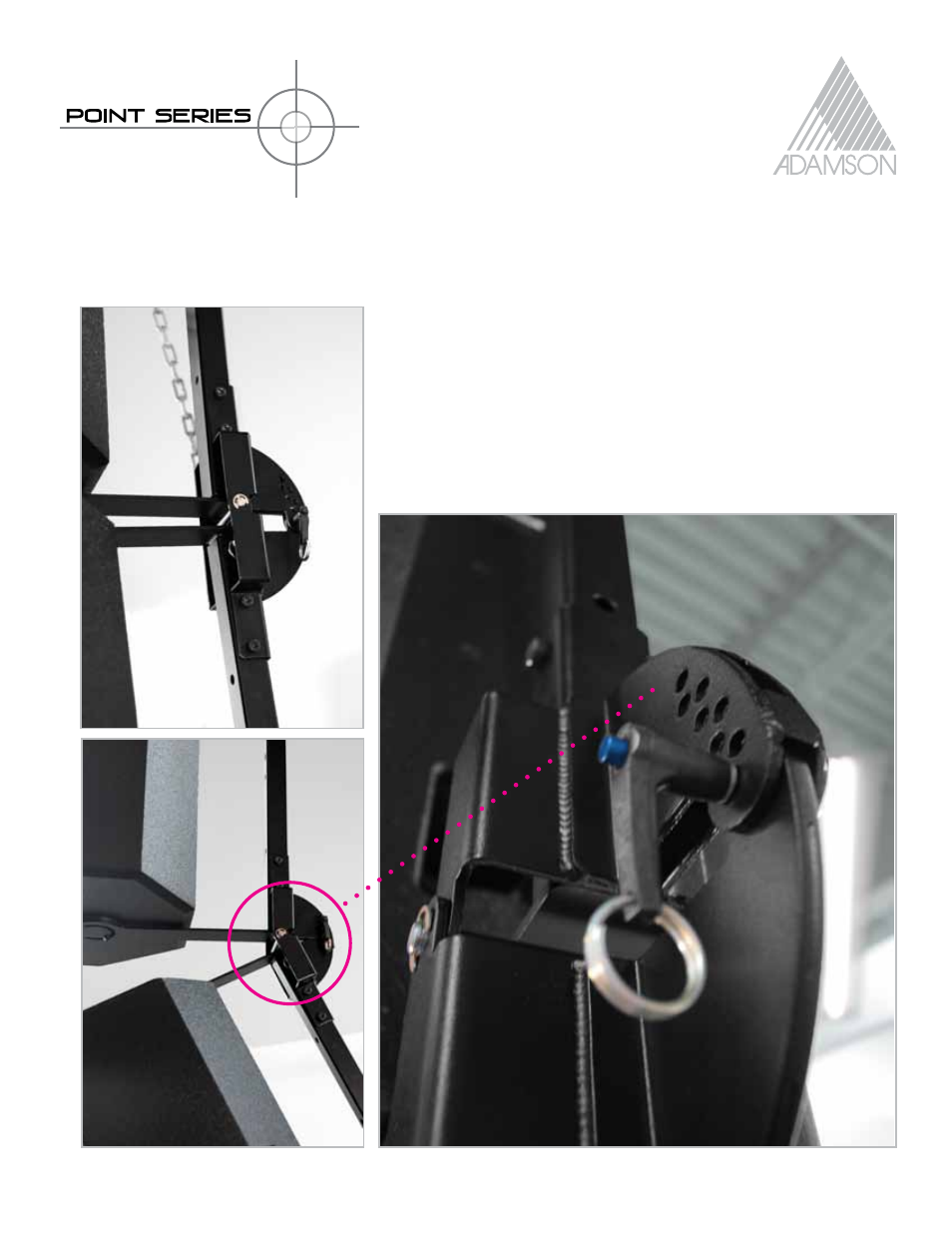

The Quick-Lock™ Articulator is used between two brackets in a vertical array. The Quick-Lock™
Articulator then allows a downward tilt of varying degrees on the bottom bracket. The Quick-
Lock™ Articulator can be used between any combination of Horizontal or Butterfly Brackets- for
example: A Point 8 Horizontal Bracket can be underhung beneath a Point 15 Butterfly Bracket.
The angle is set by inserting a push pin into one of 8 holes each representing a different vertical
angle.
(Part # 920097)
3.7
Parts and Terminology
