SLR™ Point 115 Sub to Point 8 Underhang Adapters
The Point 115 Sub to Point 8 Adapter consists of two Mirror-imaged arms that allow a Point 8
cabinet to be hung horizontally (on it’s side) underneath a Point 115 Sub. The Point 8 can then
be tilted in the vertical plane to achieve the desired coverage angle. NOTE: If both the Point
115 Sub and Point 8 are used in Passive Mode-they both can be powered using 1x amplifier
channel. See Wiring Diagrams (p.22) for details.
The Point 115 Sub to Point 8 Adapters attaches via the SLR™ Sockets on both the Point 115 Sub
and the Point 8 and are held in place via the screw threads in the SLR™ Socket.
(Part # 920099)
3.11
Parts and Terminology

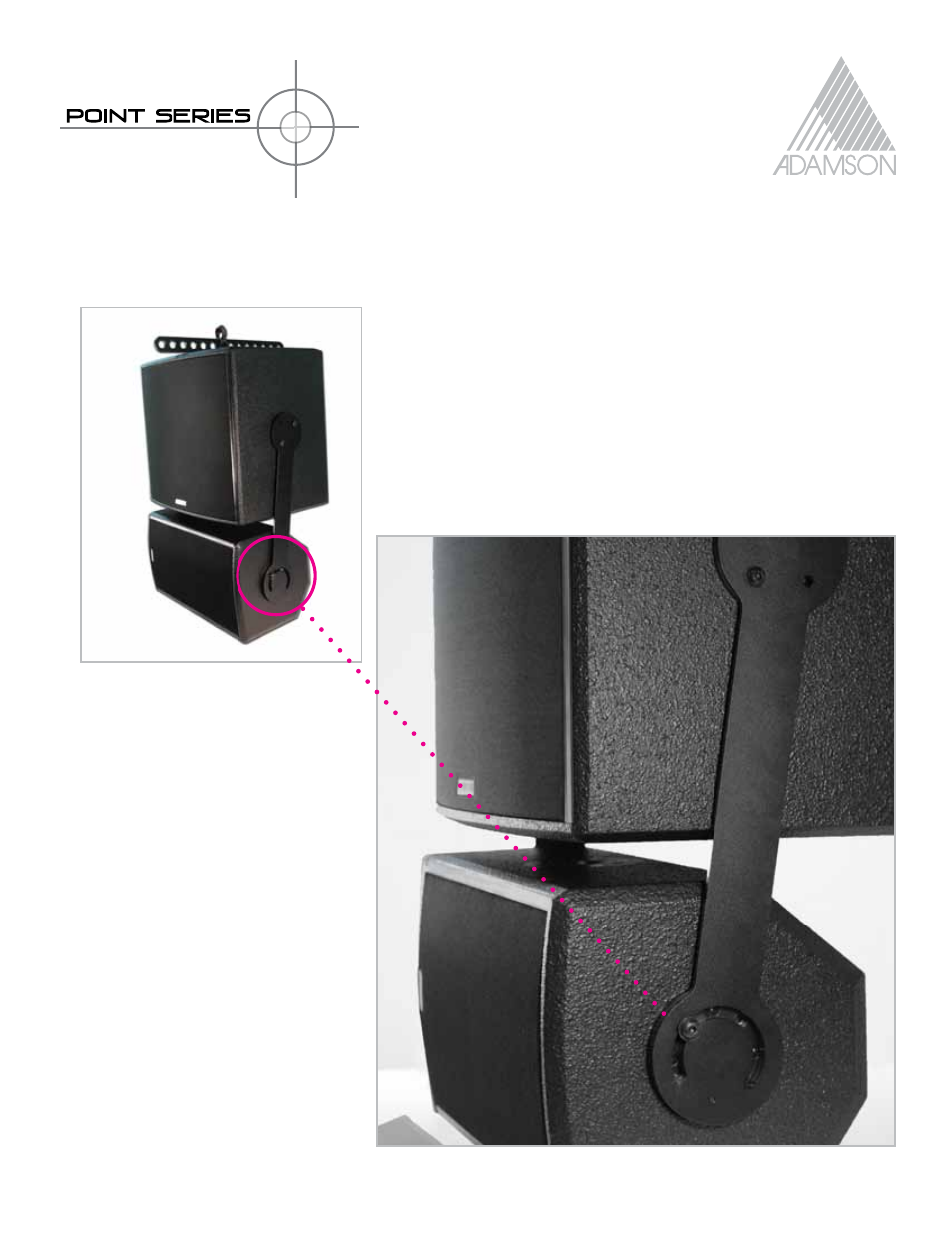

SLR™ Point 15 to Point 8 Underhang
Adapters
The Point 15 to Point 8 Adapter consists of two
Mirror-imaged arms, similar to the Point 115 Sub to
Point 8 kit, which allow a Point 8 cabinet to be hung
horizontally (on it’s side) underneath a Vertically
hung Poin15, 2-way cabinet. The Point 8 can then
be tilted in the vertical plane to achieve the desired
coverage angle.
NOTE: If both the Point 15 and Point 8 are used in
Passive Mode-they both can be powered using
a single amplifier channel. See Wiring Diagrams
(p.22) for details.
The Point 15 to Point 8 Adapters attaches via the
SLR™ Sockets on both the Point 15 and the Point 8
and are held in place via the screw threads in the
SLR™ Socket.
(Part # 920098)
