User’s Manual—SNAP™ 500 Gen 1 and Gen 2 115
19
10
11 6
5
4
17
2
3
1
7
18
15
12
3
2
8
16
14
13
9
8
13
8
20

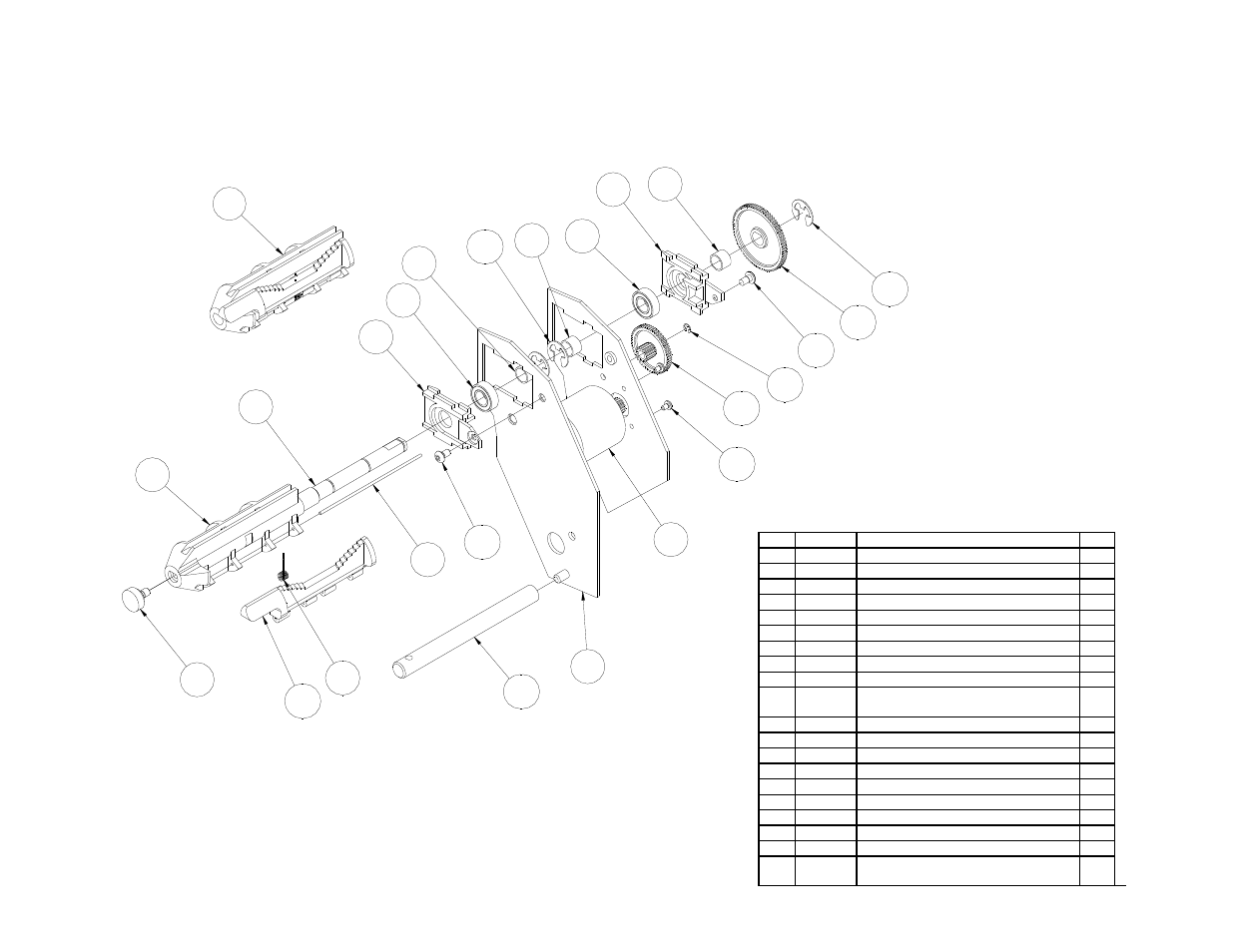

12.8Ink Unwind / Rewind Assembly – Gen 1
*Item 20 may be ordered as a complete arbor assembly
Item Part # Description Qty
1 581201 Frame, Upright 1
2 118052 Holder, Bearing 2
3 117903 Bearing, Platen 2
4 586007 Shaft, Ink arbor 1
5 586008 Core, Ink arbor, Molded 1
6 991454 8-32 x 1/4 Thumb screw 1
7 126468 Motor, Ribbon 1
8 586004 Spacer, Ink arbor, Outer 3
9 586006 Shaft, Ink arbor lock 1
10 586002
586009 Bracket, Inch core stop - Black
Bracket, Metric core stop - Gray 1
11 991370 Torsion spring 1
12 991367 Snap ring, 9/64 e-ring 1
13 990327 Snap ring, 5/16 e-ring 3
14 117954 Gear, Ribbon, 75T 1
15 117955 Gear, Ribbon, 54T - 15T 1
16 991372 6-32 x 1/4 Phillips pan head screw 1
17 990019 Hexagon socket BH cap screw 1
18 991368 2.5mm x 5mm Slotted PH screw 3
19 586003 Shaft, Ink turn 1
20* 586094K
586095K Kit, Single arbor assembly, Inch
Kit, Single arbor assembly, Metric
