User’s Manual—SNAP™ 500 Gen 1 and Gen 2 117

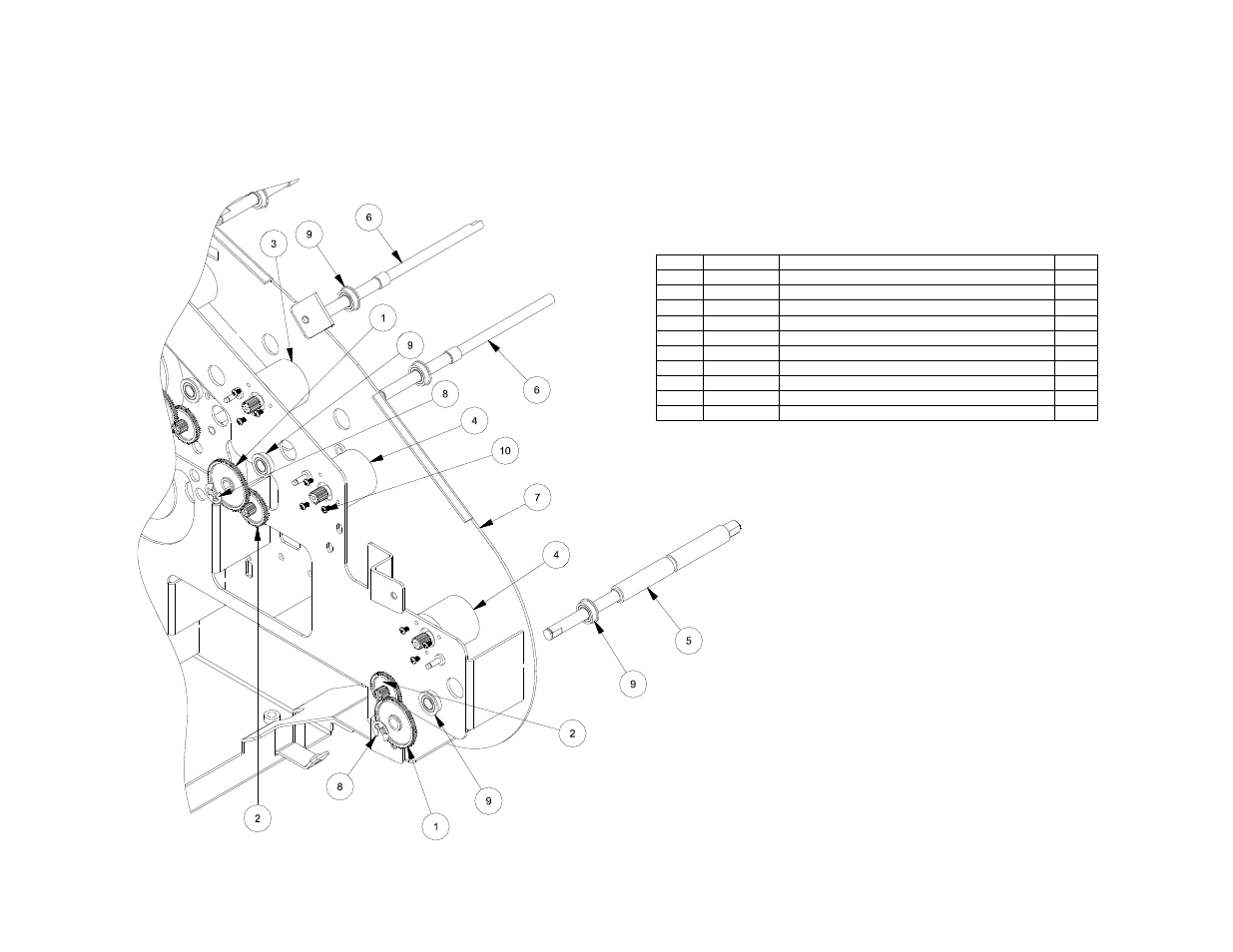

12.10 Ink / Unwind Motor Assembly – Gen 2
ITEM PART NO. DESCRIPTION QTY
1 117954 GEAR-RIBBON 75T 7
2 117955 GEAR-RIBBON 54T-15T 7
3 126468 MOTOR - RIBBON 5
4 581186 MOTOR, STOCK UNWIND W/ EXTENSION 2
5 593001 SHAFT, UNWIND, 600 1
6 596001 SHAFT, INK ARBOR, 600 6
7 631201 KIT, FRAME ASSEMBLY, SNAP 500 2/1 1
8 990327 E-RING, 5/16 7
9 991510 BALL BEARING , 16mm O.D. x 8mm I.D. FLG 14
10 991639 M2.6 X 4mm PPHS 21
