User’s Manual—SNAP™ 500 Gen 1 and Gen 2
121

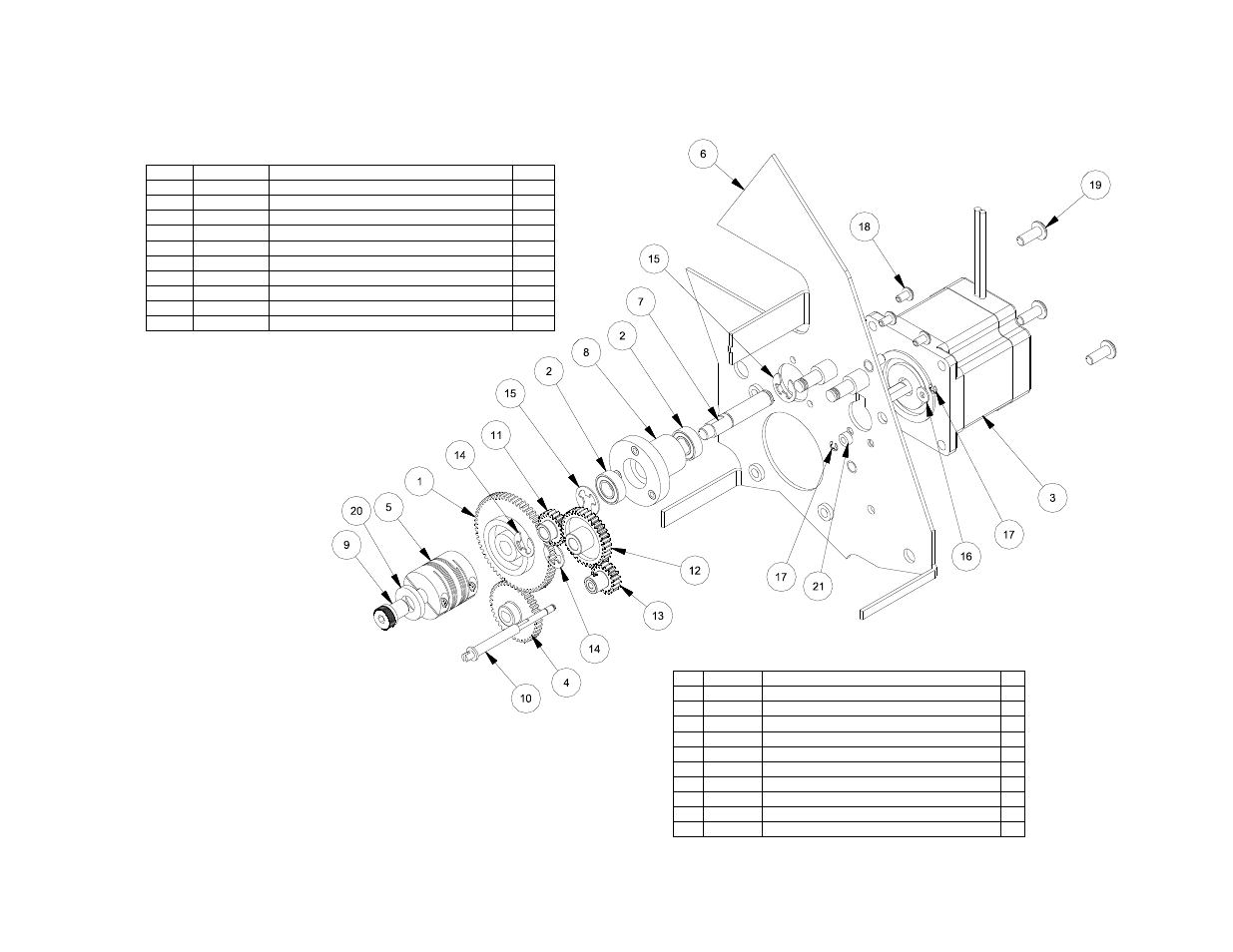

12.14 Drive Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
117902
GEAR, PLATEN
1
2
117903
BALL BEARING
2
3
351141
STEPPER MOTOR, HARNESSED
1
4
585016
GEAR, 38T DRIVE 300DPI
1
5
591642
DRIVE, BEAM COUPLING
1
6
631201
KIT, FRAME ASSEMBLY, SNAP 500 2/1
1
7
634011
SHAFT, FEED DRIVE
1
8
634012
BEARING MOUNT, FEED SHAFT
1
9
634013
DRIVE SOCKET, FEED SHAFT
1
10
634027
SHAFT, NIP ROLLER DRIVE
1
11
634035
GEAR, 20T
1
12
634036
GEAR, 36T
1
13
634037
GEAR, 18T NIP SHAFT
1
14
990326
SNAP RING, 1/4" E-RING
2
15
990327
E-RING, 5/16
2
16
990448
WASHER, .125 X .313 X .031
1
17
991367
E-RING, 9/64
2
18
991372
6 SCREW, 6-32 X 1/4 PAN PHILLIPS
3
19
991376
10 SCREW, 10-32 X 1/2 PAN PHILLIPS
3
20
991645
WASHER, 11/32ID 11/16OD .11THK
1
21
999802
BUSHING, 1/8 X 1/4 X 1/8
1
