IP POWER 9258 USER MANUAL
- 8 -
IPEDIT will search and display all IP Products 9XXX series under the same local Ethernet. The
default name for the IP Power 9258 is “IP9258”
1. Double click and highlight your IP Power 9258 device. The default device name and
IP/Network settings will all be displayed on the right hand side of IPEdit.
Make sure that the IP Address of your 9258 is setup on the same subnet network as your
PC
’s (Subnet mask, Gateway)
* Represents that your 9258 does not match the gateway of your router.
(E.g. If the Default Gateway of your computer is 192.168.1.1 The IP Address of your 9258 will
need to be set up to 192.168.1.XXX.)
2a. Automatically Detect Network settings (Please go to 2b. for steps on how to manually
enter network settings)

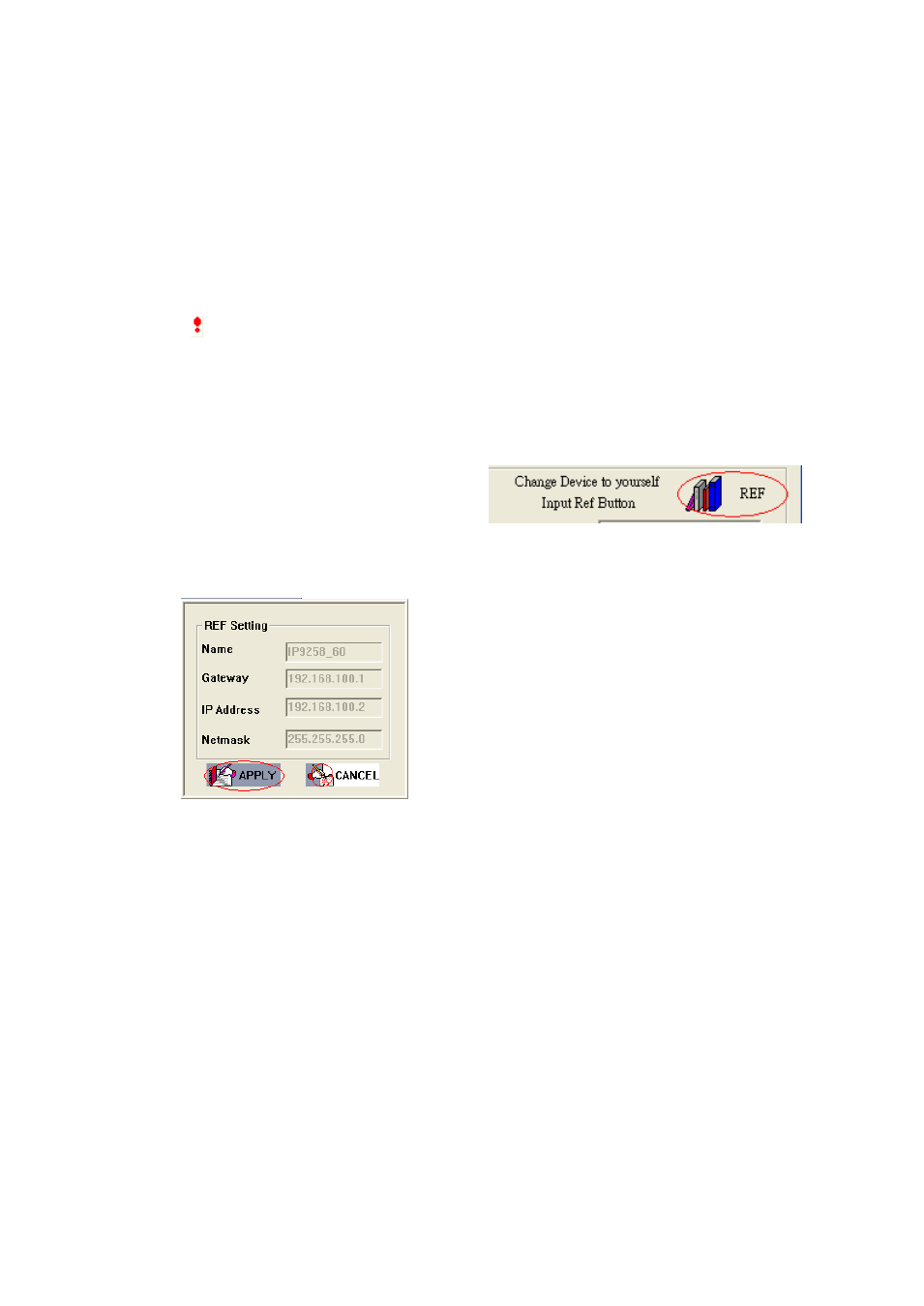

a.) Click on the REF button to the right of IPEdit
b.) Please wait a few seconds while IPEdit detects your network settings. Then click the Apply
button to apply the new network settings
2b. Manually enter network settings In Ipedit:
a.) You can manually enter the networks settings for the following:
The name: (please use numbers or letter)
Gateway IP: (The default gateways IP can be found using
IP Address: (please set in the same subnet as your PC) in the text windows.
b.) Then click Submit after the settings have been selected. Wait about 20 seconds for the new
settings to be updated.
c.) Click Rescan, and the new device settings will display in text window.
Note:
1.) Make sure the RJ45 network cable is connected and the 9258 is powered on.
