10
MAINTENANCE
Hand shower
• Tightly screw the new flexible to the connection, with the gasket in between, paying attention not to
loose grip on the flexible (point A in picture C) because an incidental recovery below the bath deck
mixer will hamper its collection.
• The distance between the feeding point and the exit point of the hand shower on the bath deck,
MUST NOT EXEED THE LENGTH OF (70 cm. / 27½") due to the fact that it will be IMPOSSIBLE sub-
stituting flexible B. (150 cm / 60”.)
12
Installation
1) Thermostatic body
2) Diverter body
3) Spout base
3
• Insert the thermostatic body in the deck mounted.
• Screw the upper and bottom flange for fit the body. See the drawing.
• Screw the flexible pipe of hot inlet; screw the flexible pipe of mix water; screw the flexible
pipe of cold water. Remember to use the gaskets supplied.
• Insert the diverter body in the deck mounted
• Screw the upper and bottom flange for fit the body. See the drawing.
• Screw the flexible pipe of the mix water, screw the flexible pipe of the spout outlet, screw
the flexible pipe of the hand shower outlet. Remember to use the gaskets supplied.
• Insert the spout holder in the deck mounted.
• Screw the upper and bottom flange for fit the spout holder. See the drawing.
• Screw the flexible pipe of the spout outlet. Remember to use the gaskets supplied.
c b a
c b a
c b
a
Maintenance
a b
c d
Old New
A A
B
B

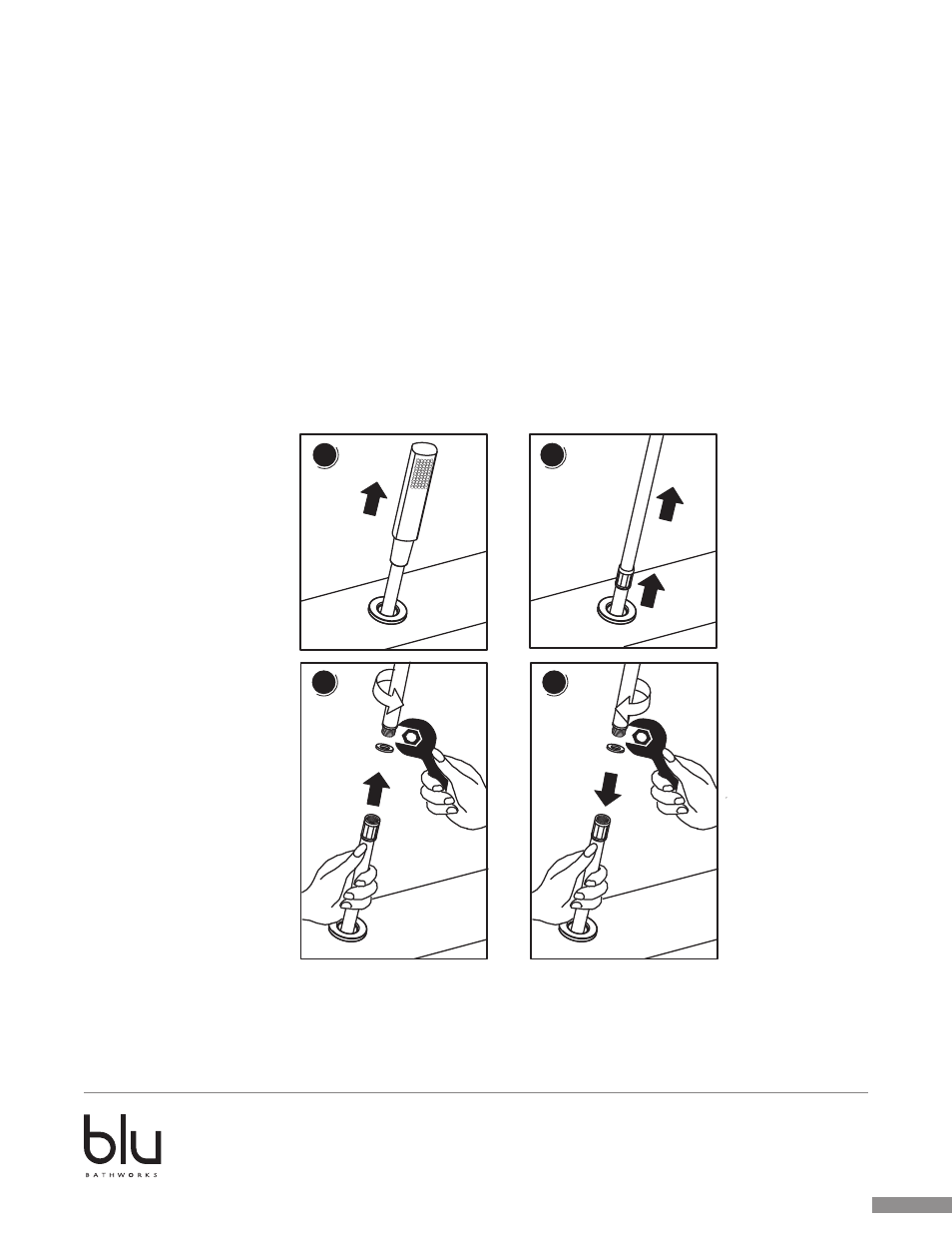

FLEXIBLE REPLACEMENT (A)
• Tightly screw the new flexible to the connection,with the gasket in between,
paying attention not to loose grip on the flexible (point A in picture C),
because an incidental recovery be low the bath deck mixer will hamper its
collection.
• The distance between the feeding point and the way out of the hand shower
on the bath deck, MUST NOT EXEED THE LENGHT OF (70 Cm.) due to the fact
that will be IMPOSSIBLE substituting flexible B. (150 Cm.)
• Hand shower
