Digicast Media Router S2 Receiver CMR-6000 Revision 1

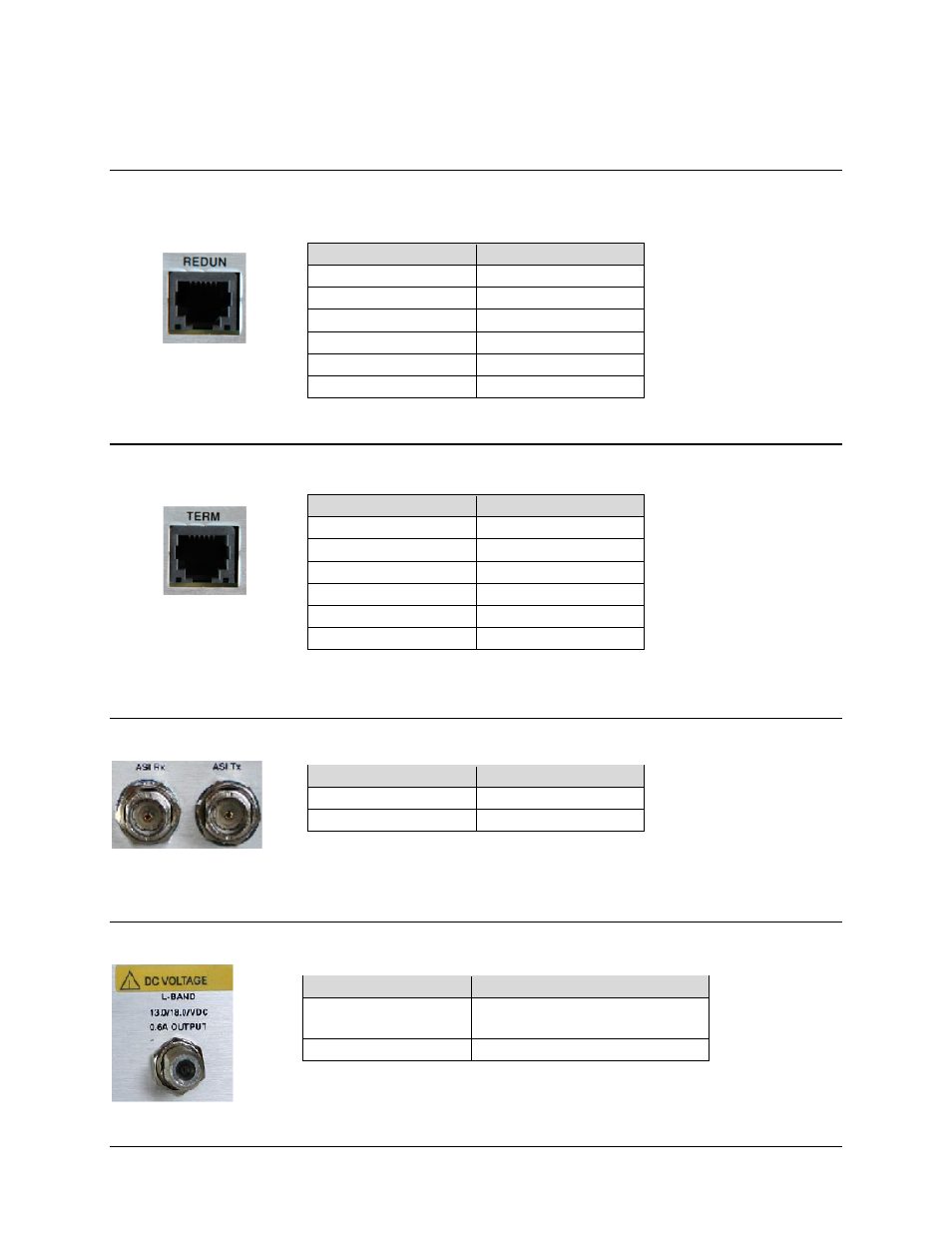

Interface Pinouts MN-CMR6000-IOM
3-2
3.3 RJ-12 Redundancy
3.4 RJ-12 Terminal
3.5 ASI (RX and TX)
3.6 F-Type L-Band
Pin Definition
1 GND
2 TXD
3 RXD
4 GND
5 N/C
6 N/C
Pin Definition
1 GND
2 TXD
3 RXD
4 GND
5 N/C
6 N/C
Pin Definition
Center 8B/10B 270 Mbps
Outer Ring GND
Pin Definition
Center
Input 950-2150 MHz
Output +13VDC or + 18VDC 0.6A
Outer Ring GND
