Client Cable Connection
The cable that connects from the client radio to the top jack of the quick connect on the
back of the display is pre-terminated at Daktronics. The cable is connected inside the
client radio as shown in Figure 1.

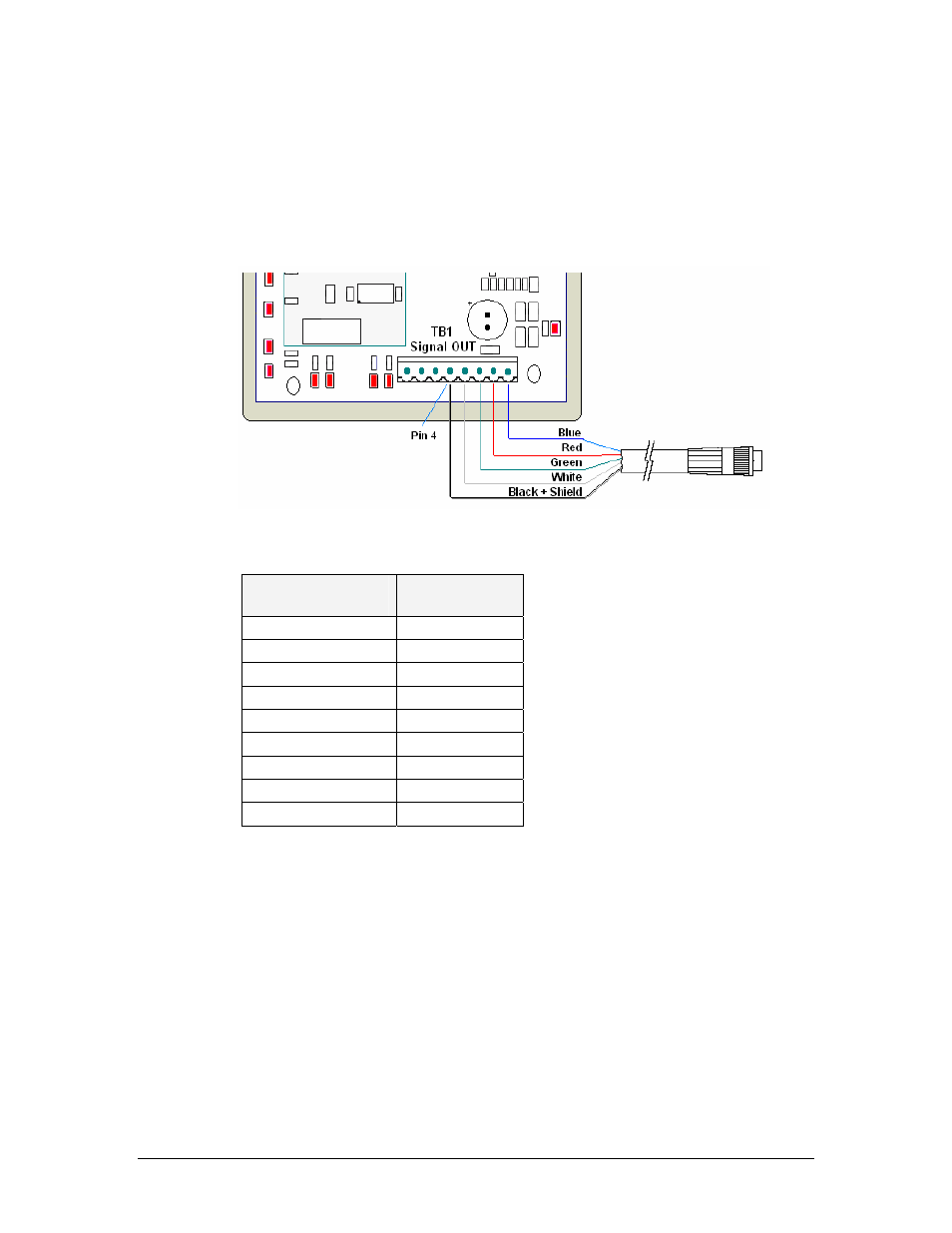

Figure 1: Client Radio Connection
Client Connection
(TB 1)
Cable Color
CAN L (Pin 1)
CAN H (Pin 2)
+5V (Pin 3)
GND (Pin 4) Black + Shield
RX (Pin 5) White
TX (Pin 6) Green
AC Power (Pin 7) Red
AC Power (Pin 8) Blue
N.C. Brown
Maintenance and Troubleshooting 25
