Start-up Procedure
Before starting up the display, go over this checklist to ensure that all parts are ready to operate
correctly. Figure 24 shows the basic display components referred to in each step.
5.1 Start-up Checklist
D
Is power connected to the display?
The power conduit will leave the display from the rear and connect to a power source either
on the display structure or inside a building. Refer to Figure 2 for approximate location of the
power cable or conduit.
D
If the display has two faces, are the two sides connected?
Check that a quick-connect cable or hard-wired communication cable runs between the back
connections of the two display cabinets. Refer to the illustration in Figure 15.
D
Is the control computer connected to the display?
Some type of communication line or wireless device will send signal between the control
computer and the display, depending on the communication method. Refer to Section 4 for
assistance with checking the communication.
D
Is the computer software set up to work with the display?
The software manual provides the information necessary to allow the computer to
communicate with the display. Follow the step-by-step directions in the Configuration
section of the software manual for correct set-up.

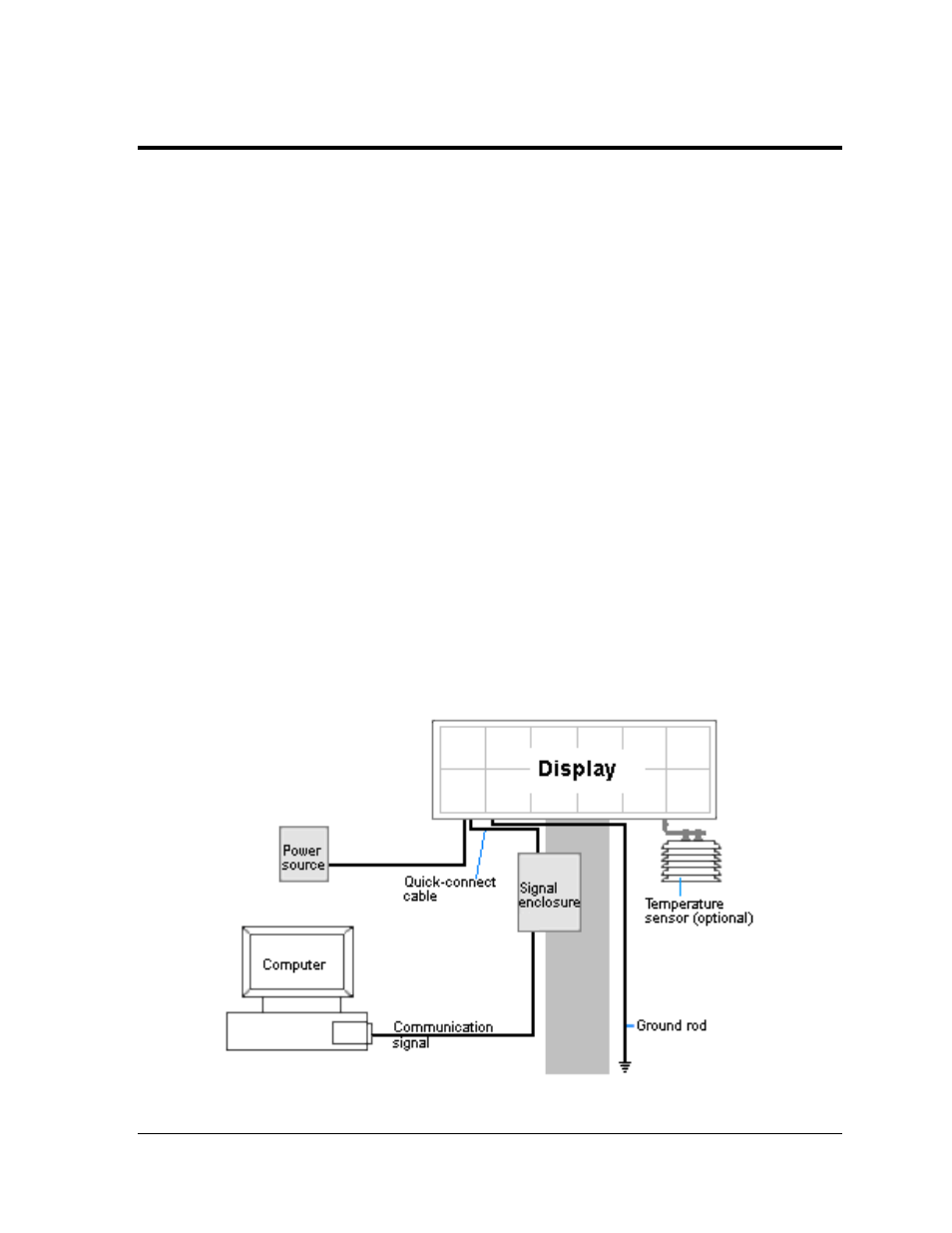

Figure 24: Basic Display Set-up
