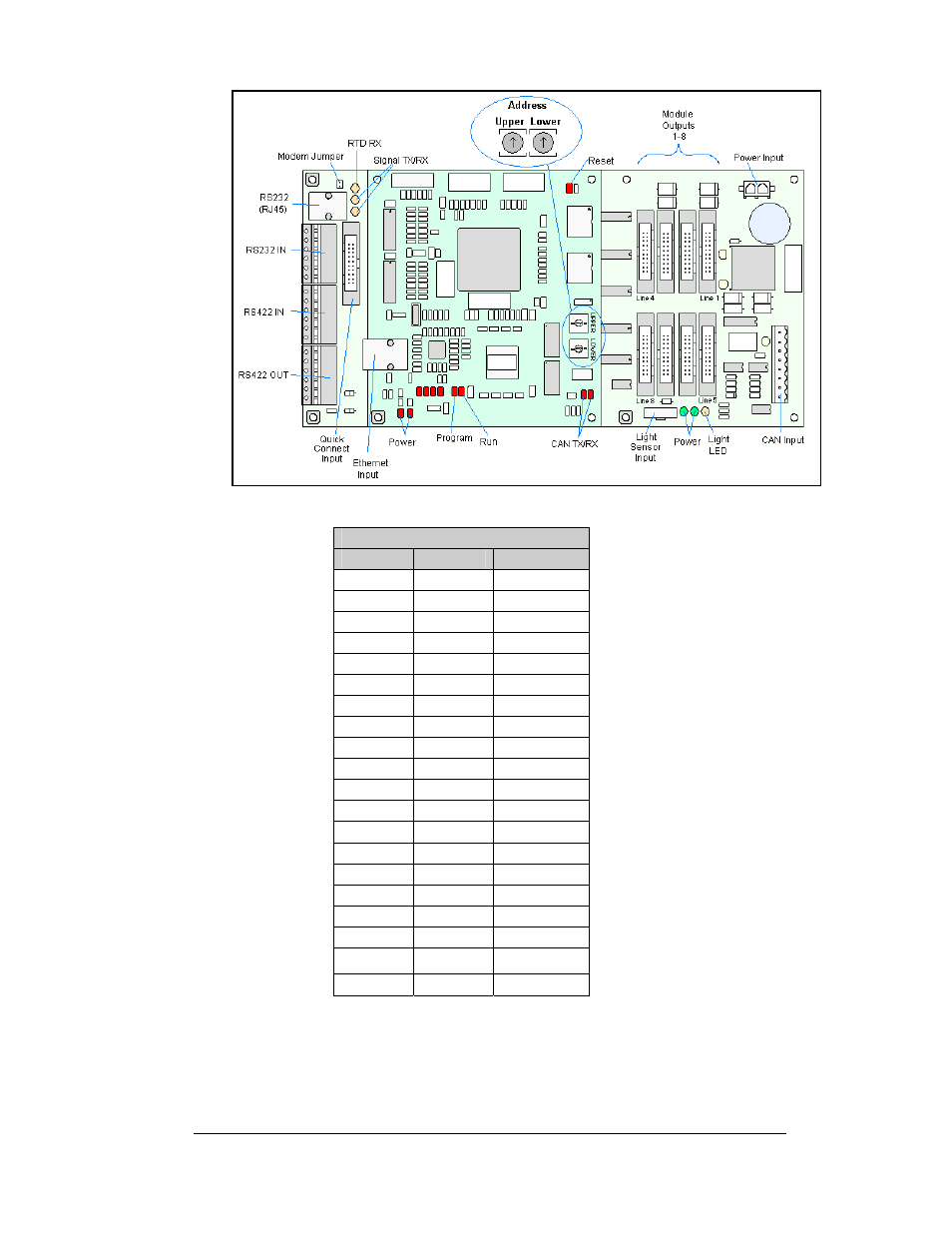

Figure 20: Controller Component Layout

Controller Address Settings

Upper

Lower

Address

0 0

Test

Mode

0 1 1

0 2 2

0 3 3

0 4 4

0 5 5

0 6 6

0 7 7

0 8 8

0 9 9

0 A 10

0 B 11

0 C 12

0 D 13

0 E 14

0 F 15

1 0 16

1 1 17

… … …

F 0 240

Maintenance and Troubleshooting

4-5
