64.875
VISIBLE AREA
HEIGHT
93.125
VISIBLE AREA
WIDTH
70.375
OVERALL HEIGHT
98.625
OVERALL
WIDTH
TENSION CLIP MARKS
5" C-C ALL AROUND.
TENSION CLIP
LINE TO BE 1-1/4""
FROM ACTIVE AREA
TYP. ALL AROUND
95.625
TENSION CLIP
LINE WIDTH
67.375
TENSION CLIP
LINE HEIGHT
FIRST MARK IS TO BE
2" FROM VISIBLE
AREA.
TYP. ALL AROUND
01 19 APR 10 CHANGED ACTIVE AREA TO HATCH LINE.
DISTANCE FROM 1.5 TO 1.25.
DECREASED OVERALL SIZE .5" ALL AROUND.
KCS
02 27 SEP 10 ADDED CORN ER CUT LINES.
INCREASED CORNER TICK MARK START DISTANCE FROM
3" TO 5". cHANGED HATCH SPACING TO 5" C-C.
KCS
03 4 JUN 12 ADDED MESH PART NUMBER AND REV TO DRAWING
CHANGED MESH SPEC TO ULTRAMESH SUPREME
KCS
04 20 SEP 12 UPDATED NOTES WITH UV COATING AND SEAMLESS
REQUIRMENTS.
KCS
REV DATE: BY:
DAKTRONICS, INC. THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON
THIS DRAWING ARE CONFIDENTIAL AND PROPRIETARY.
DO NOT REPRODUCE BY ANY MEANS WITHOUT THE
EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2011 DAKTRONICS, INC.
BROOKINGS, SD 57006
DO NOT SCALE DRAWING
PROJ: DAKTRONICS AUDIO SYSTEMS

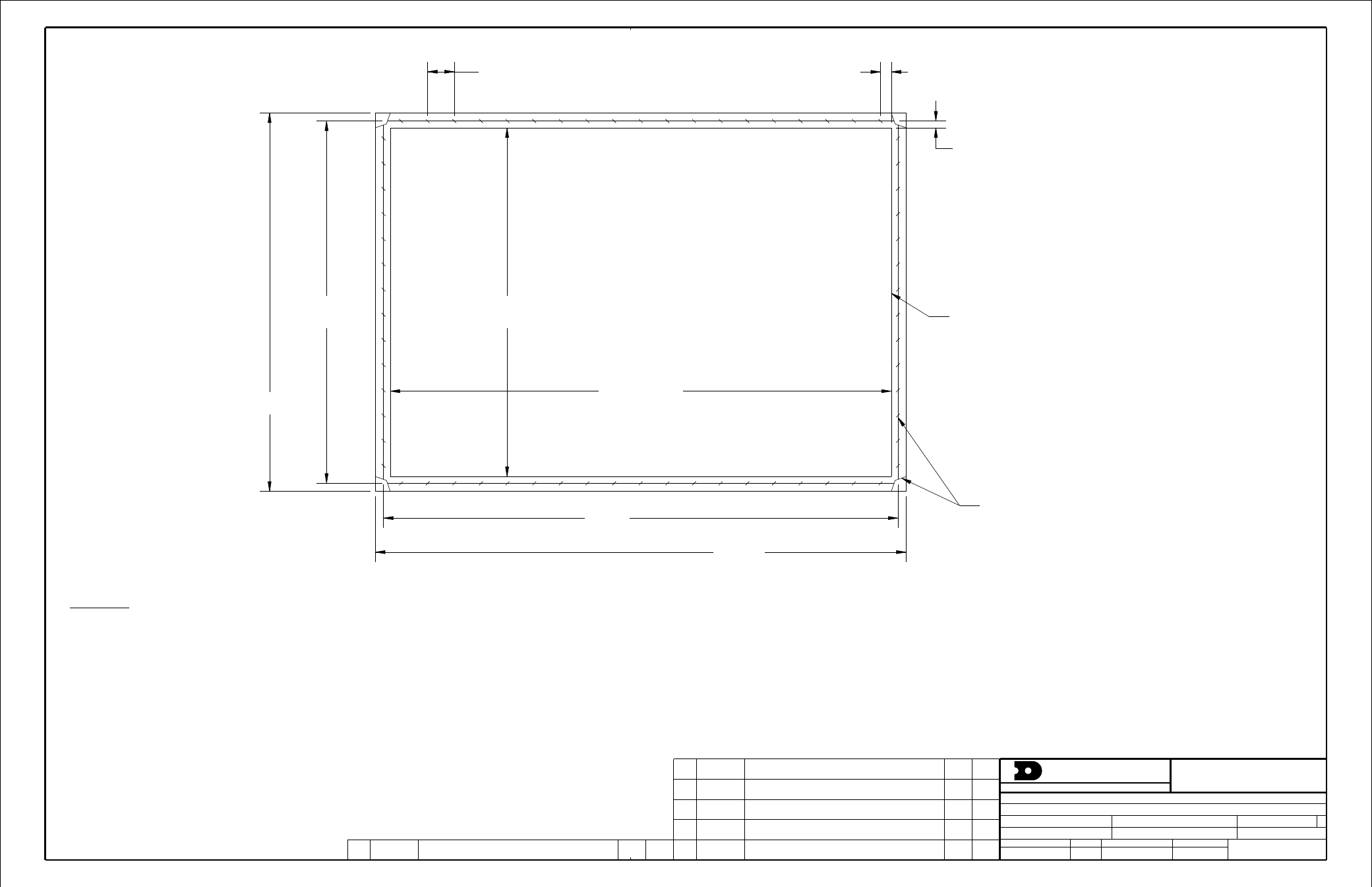

TITLE: MESH LAYOUT; 1500HD GEN II
DESIGN: KSCHNABEL DRAWN: KSCHNABEL DATE: 19-JUN-13
SCALE: 1/15
SHEET: REV JOB NO: FUNC-TYPE-SIZE 983304
1 OF 2 05 P 1534 E
-
10
-
B
05 19 JUN 13 MOVED HATCH LINES 1.75" CLOSER TO THE CORNERS
PER EC-10967
KCS
NOTES:
1. OVERALL DIMENSIONS ARE CRITICAL TO +/- 1/8"
2. ALL DIMENSIONS ARE IN INCHES.
3. ACOUSTICAL MESH SHALL BE SEATTLE TEXTILE 5071, ULTRAFLEX ULTRAMESH SUPREME, OR APPROVED.
4. ACOUSTICAL MESH TO BE SEAMLESS
5. PROTECTIVE UV CLEAR COAT TO BE APPLIED TO MESH
6. BACKGROUND COLOR SHALL BE PRINTED ON ENTIRE MESH LENGTH AND HEIGHT.
7. ACOUSTICAL MESH TO BE SHIPPED IN TUBE. (DO NOT FOLD MESH)
DAK PART NUMBER: EN-2687
FRONT LAYOUT VIEW
ACTIVE AREA
LINE SHOWN ONLY
FOR A REFERENCE.
DO NOT PRINT
HATCHED LINE AND CORNER
CUT LINES TO BE PRINTED.
LINES TO BE A MINIMUM OF
.125" THICK AND IN A COLOR
VISIBLE ON THE BACKGROUND
COLOR.
