Tutorial #2: how to open an existing message, Figure 77: open message dialog – Daktronics Venus 1500 Ver 3.x User Manual
Page 71
The Venus 1500 Message Studio
57
Tutorial
1.
Click the Open button
or select Open from the File pull-down menu. The Open
Message dialog box opens. Refer to Figure 77.
2.
Select the desired display type.
3.
Click on the plus sign (+) and select a library. A list of messages contained within that
library appears on the right side of the screen.
4.
Double-click on the name of the message, or highlight the name on the left side of the
window and click Open. The message is loaded into the Message Studio for editing.
Multiple messages and messages for more than one display type and size can be open
for editing at the same time.
5.
Save the message once the desired changes have been made on the existing message
opened.
See Tutorial #25 ―How to Save, Rename, and Delete Messages.‖

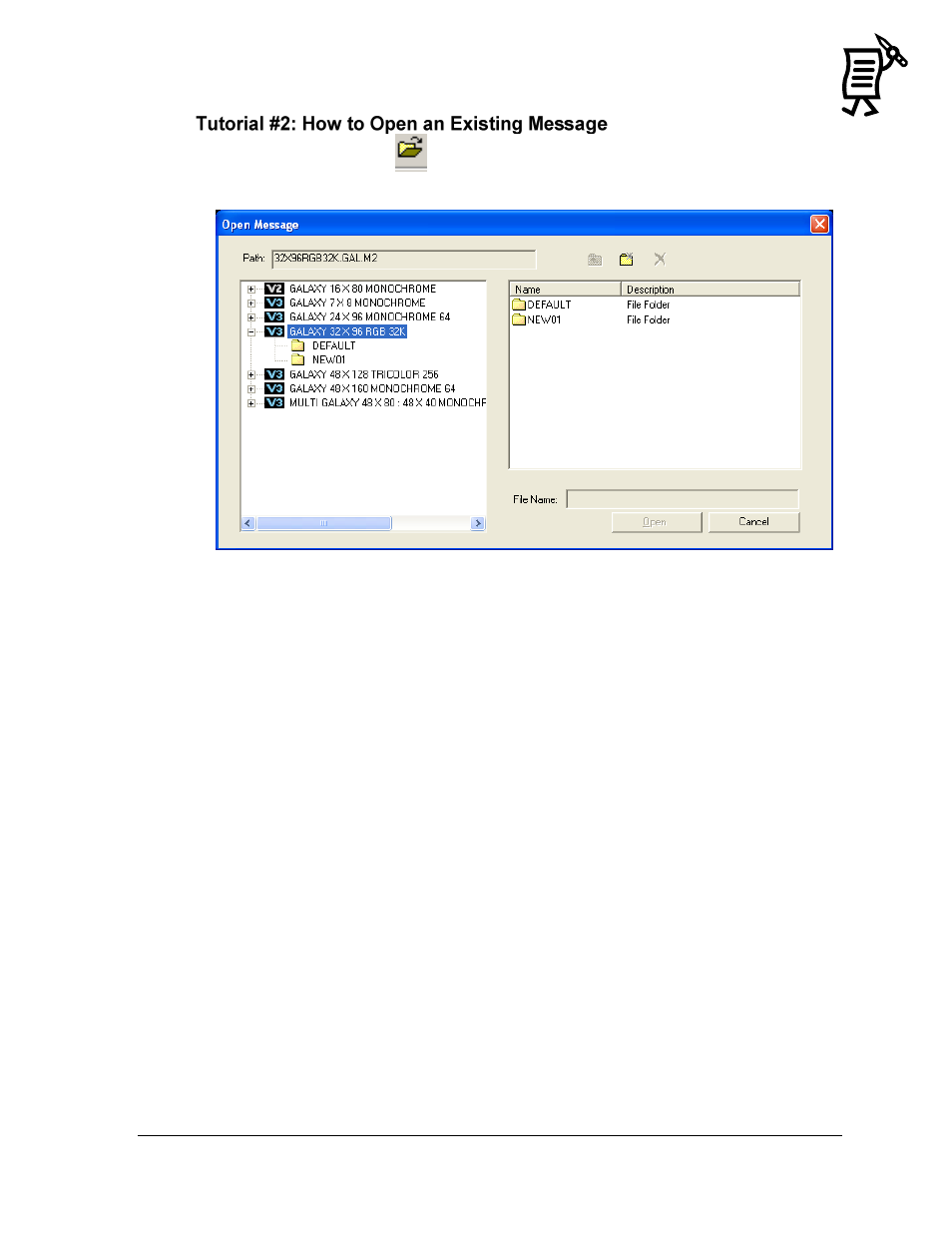

Figure 77: Open Message Dialog
