24
2
Hardware Installation
Wake-up Test
1
ON
4
5
1
ON
4
5

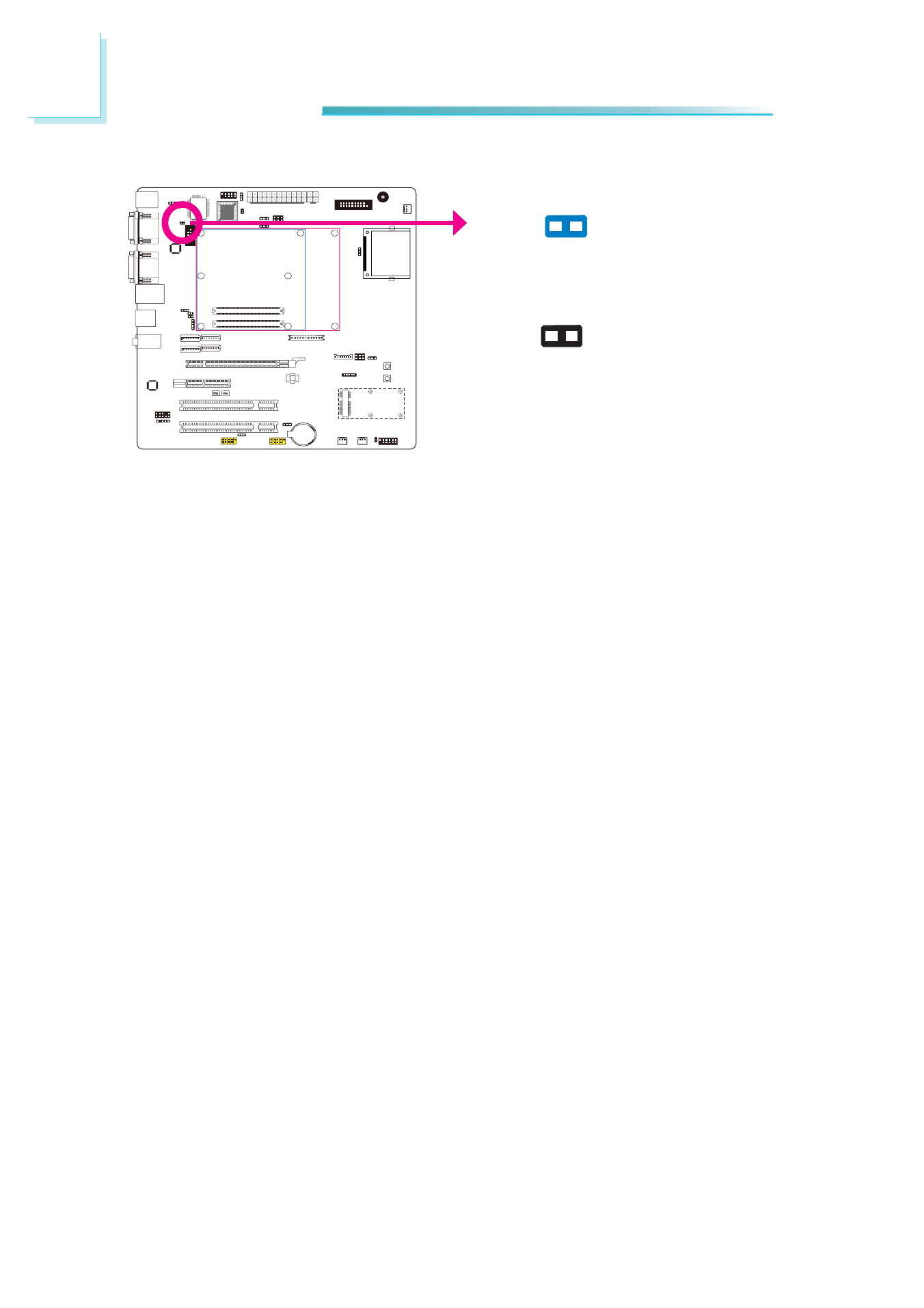

This jumper is used to simulate the signal status that indicates the wake-on-ring
or PME# event from the Super I/O. It is also used to simulate a general purpose
wake-up signal such as wake-up on PS/2 keyboard or PS/2 mouse. Set J24 pins
1 and 2 to On to send WAKE# signal to the module.
J24
1-2 Off: Normal
(default)
1-2 On:
Wake-up test
1 2
1 2
