The Serial ATA connector is used to connect the Serial ATA device. Connect one end of the Se-
rial ATA cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Refer to the module’s BIOS for more information.

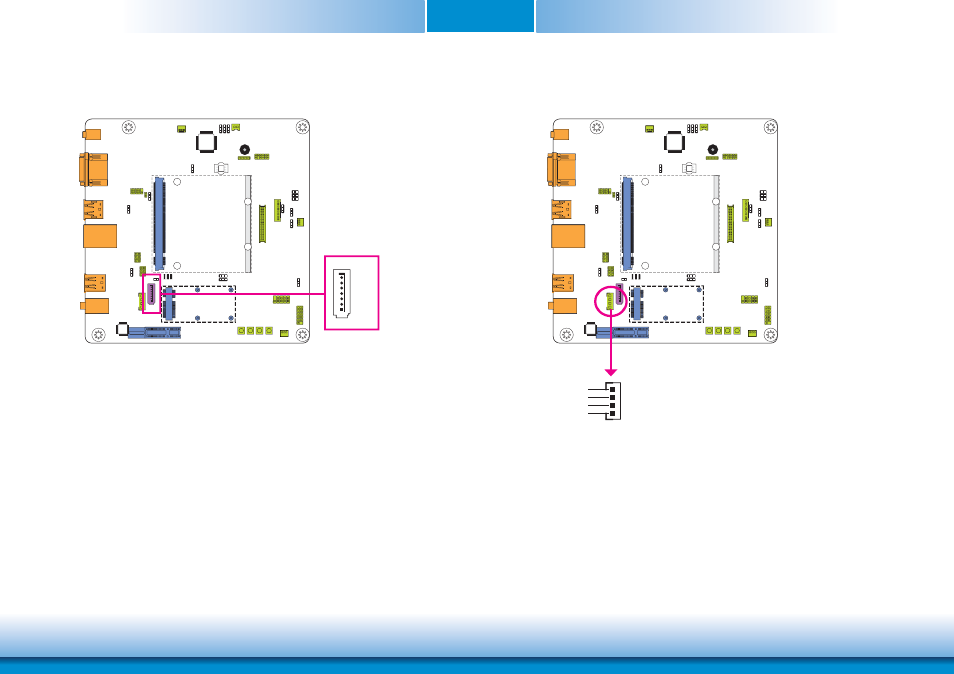

SATA (Serial ATA) Connector SATA (Serial ATA) Power Connector
The SATA power connector supplies power to the SATA drive. Connect one end of the provided
power cable to the SATA power connector and the other end to your storage device.
SATA
Power
7
RXN
GND
TXP
TXN
GND
1
RXP
GND
SATA 3.0 6Gb/s
(The SATA port provides adequate
space for SATA DOM.)
+12V
+5V
Ground
1
Ground
4
