www.dfi .com Chapter 2 Hardware Installation
27
Chapter 2

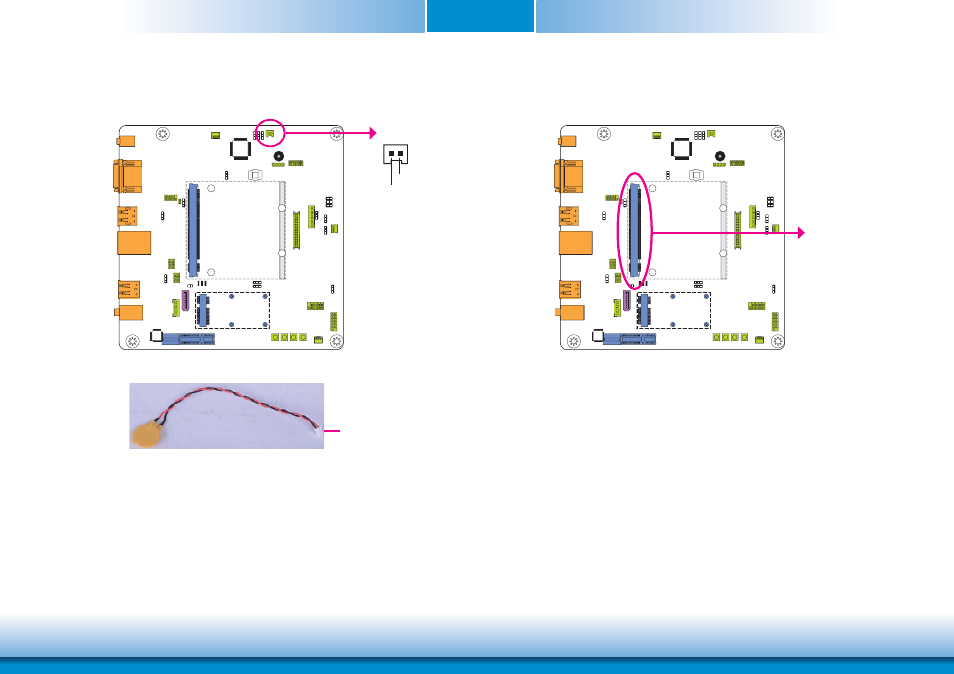

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source
of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Battery
Connect to the
battery connector Battery
1
+3.3V
GND
2
Battery
MXM Connector
MXM
Connector
The MXM connector is used to interface the carrier board with a Qseven board. Refer to the
tables in the following page for the pin functions of the MXM connector.
