38
2
Hardware Installation

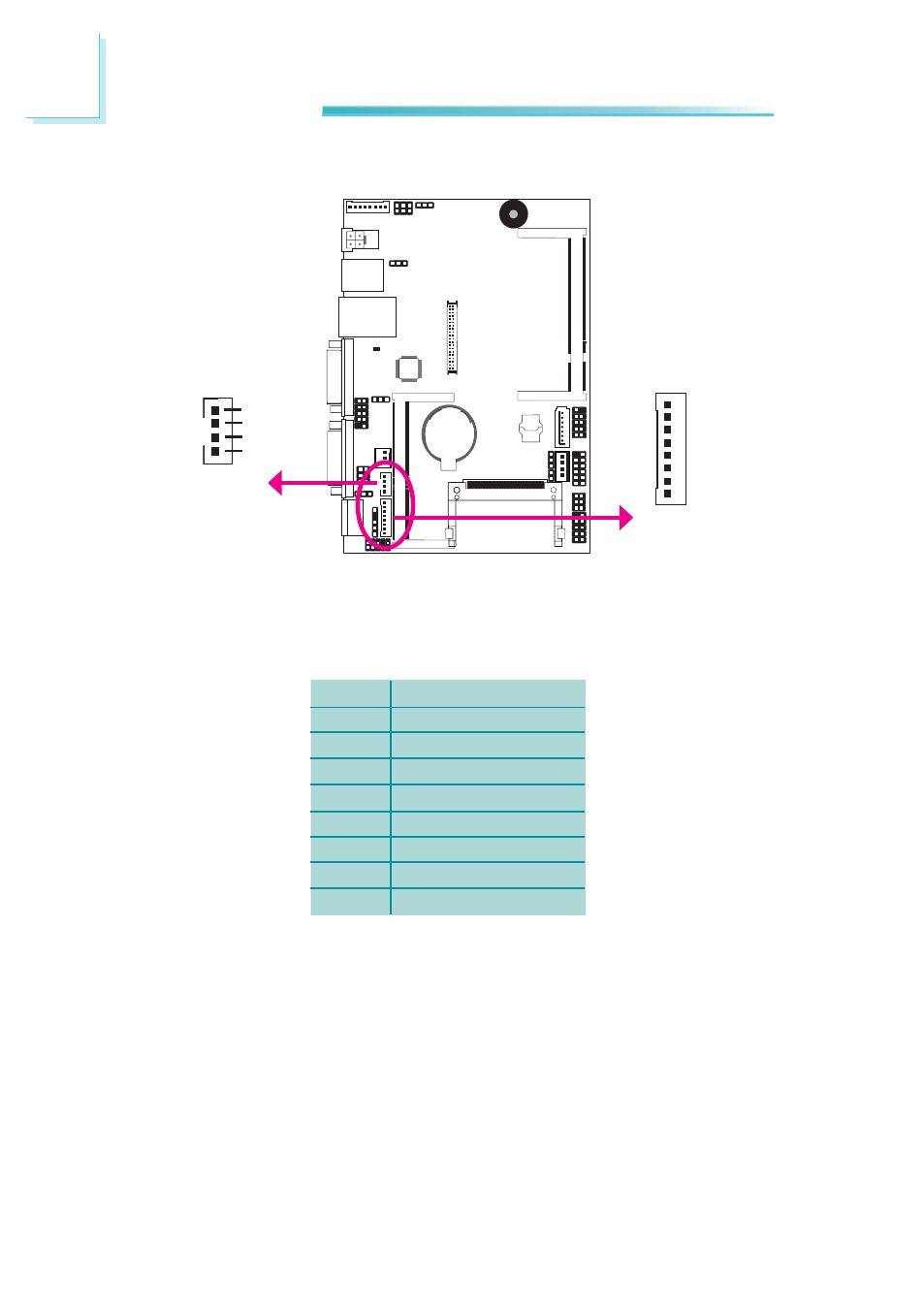

Digital I/O Connector
The Digital I/O connector provides powering-on function to an external device
that is connected to this connector.
1
8
1
4
+12V
Ground
5VSB
+5V
Digital I/O
Digital I/O
power
Pins
1
2
3
4
5
6
7
8
Function
DIO0
DIO1
DIO2
DIO3
DIO4
DIO5
DIO6
DIO7
Digital I/O Connector
