39
2
Hardware Installation

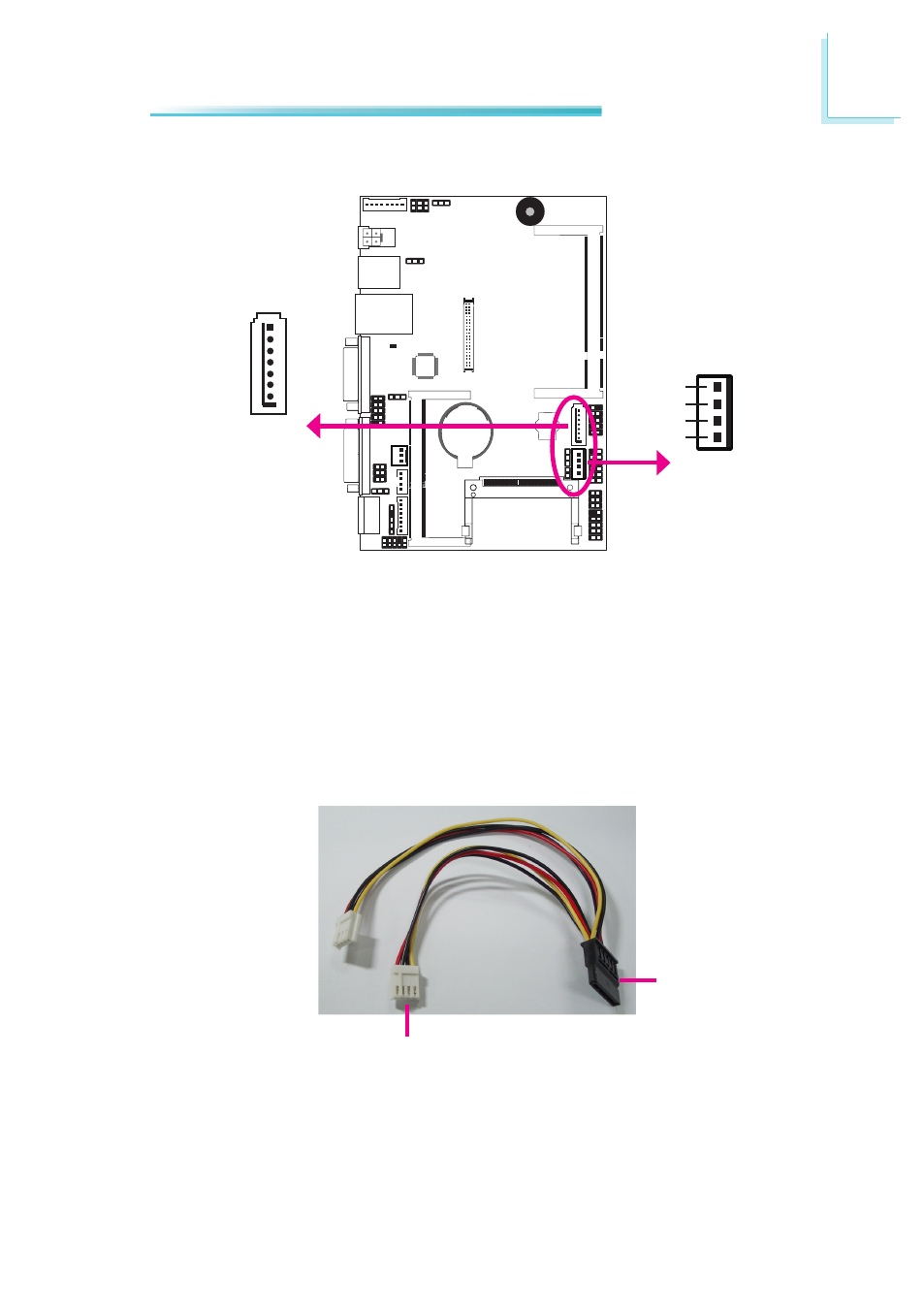

SATA (Serial ATA) Connector
SATA 1
1
7
RXN
GND
TXP
TXN
GND
RXP
GND
+5V
Ground
+12V
Ground
1
4
Peripheral
power
The Serial ATA connector is used to connect a Serial ATA device.
Connecting a SATA Device
The system board package comes with a Serial ATA data cable. Connect one end
of the cable to SATA 1 and the other end to your Serial ATA device.
The system board package also comes with a power cable that must be connect-
ed to the system board’s peripheral power connector and the SATA drive’s power
connector in order to provide power to the drive.
Connect to the peripheral
power connector
Connect to the
SATA drive
BIOS Setting
Configure the Serial ATA drives in the Integrated Peripherals submenu (“OnChip
IDE Device” section) of the BIOS. Refer to chapter 3 for more information.
