41
2
Hardware Installation

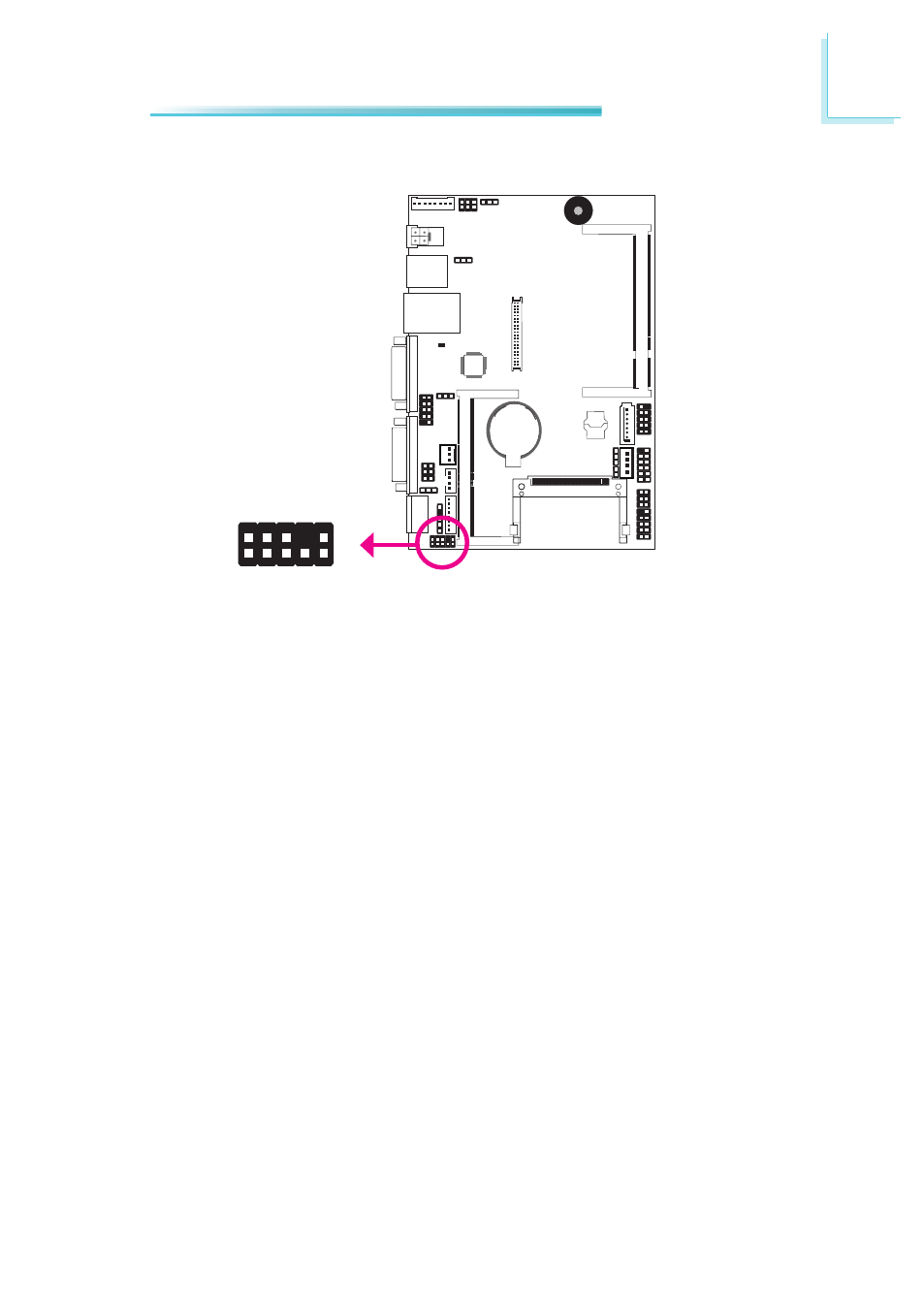

Front Audio Connector
1
Mic2-L
Line2-R
Front_IO_Sense
GND
N.C.
K
ey
2
10
Mic2-
JD
Line2-
JD
9
Mic2-R
Line2-L
The front audio connector allows you to connect line-out and mic-in jacks.
Driver Installation
Install the audio driver. Refer to chapter 4 for more information.
