DR Power Walk-Behind 11.50 fpt (August 2010 - Present) User Manual
Page 28
Advertising
28
DR
®
LEAF AND LAWN VACUUM

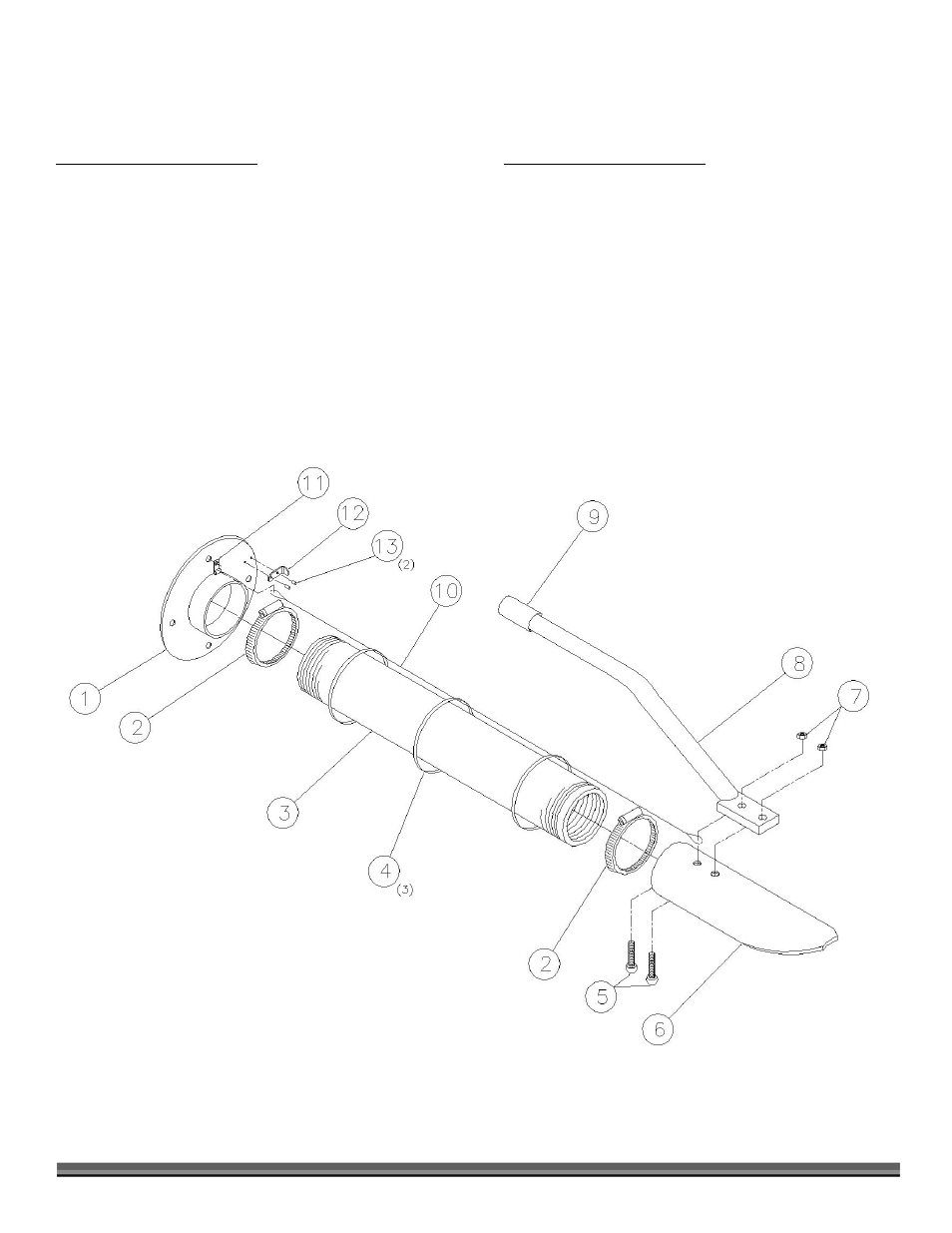

Parts List and Schematic – OPTIONAL VACUUM KIT #284221
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part#
Description
01 284711 Adapter,
Vacuum
02 144401 Clamp,
Hose,
6-1/8"
03
140821
Hose, 6" Dia. X 8' Long
04
145201
Cable Tie, 32"
05
145461
Screw, Machine, Rd Hd, 1/4-20 x 3/4"
06 145271 Snout,
Pick-up
07
143401
Nut, Nylon Lock, 1/4-20
Ref# Part#
Description
08 145451 Handle
09 144251 Grip,
Handle
10 145191 Tether,
Wire
11 143061 Guide,
Cable
12 285621 Contact,
Interlock
13 284581 Rivet,
3/16"
