NOTE:
- SLIGHT MANIPULATION OF THE
WEIGHT CARRIAGE MAY BE REQUIRED
TO LOCK SHAFTS (24) IN PLACE.
- WRENCH TIGHTEN HARDWARE.
- WRENCH TIGHTEN HAND TIGHTENED
HARDWARE FROM PREVIOUS STEP.
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.

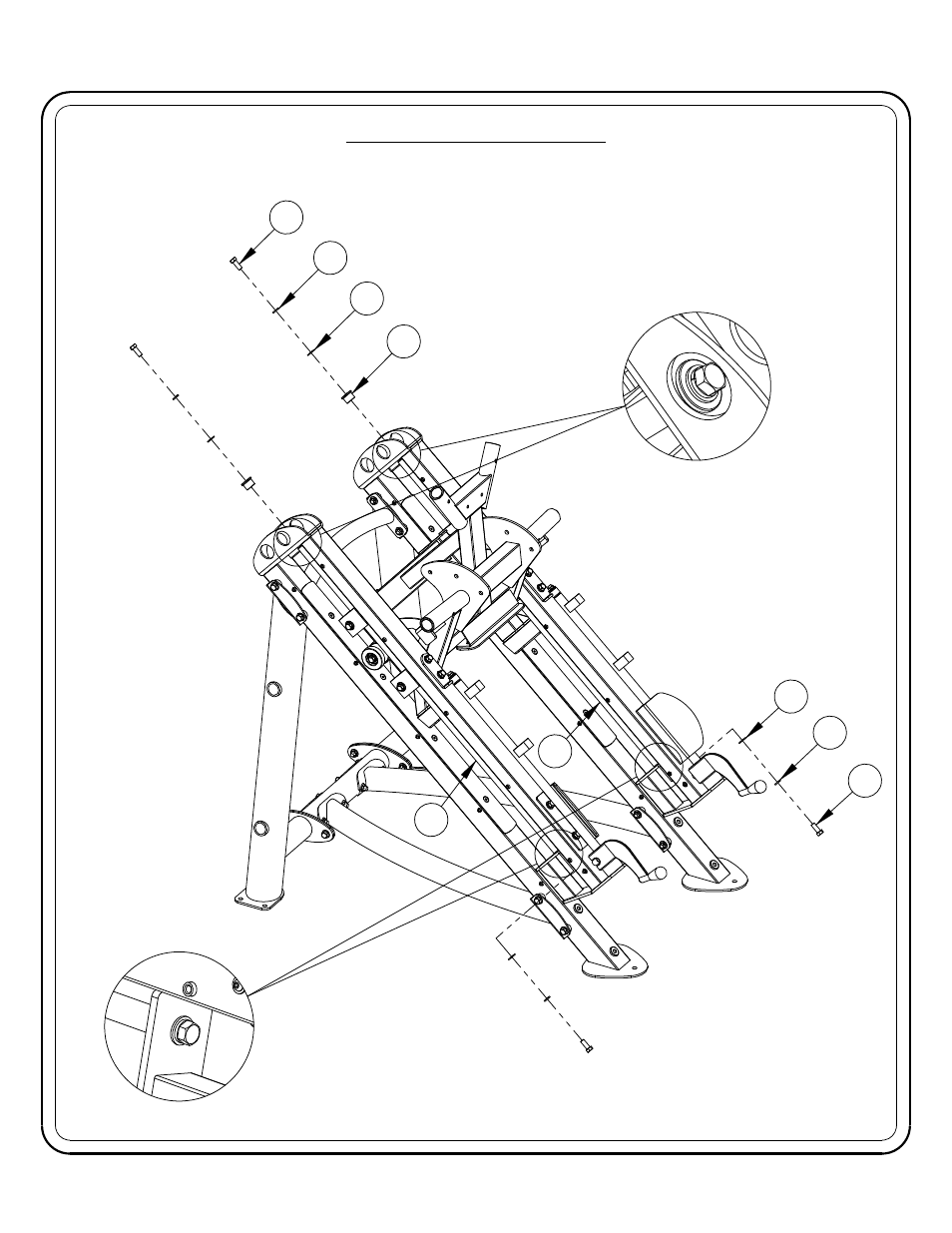

FRAME ASSEMBLY
OWNER'S MANUAL
PAGE 23 CF-3355 ASSEMBLY
75
63
61
34
61
63
75
24
24
PROPERLY INSTALLED VIEW
PROPERLY INSTALLED VIEW
