INSTALLATIONS
18 IB908F User’s Manual

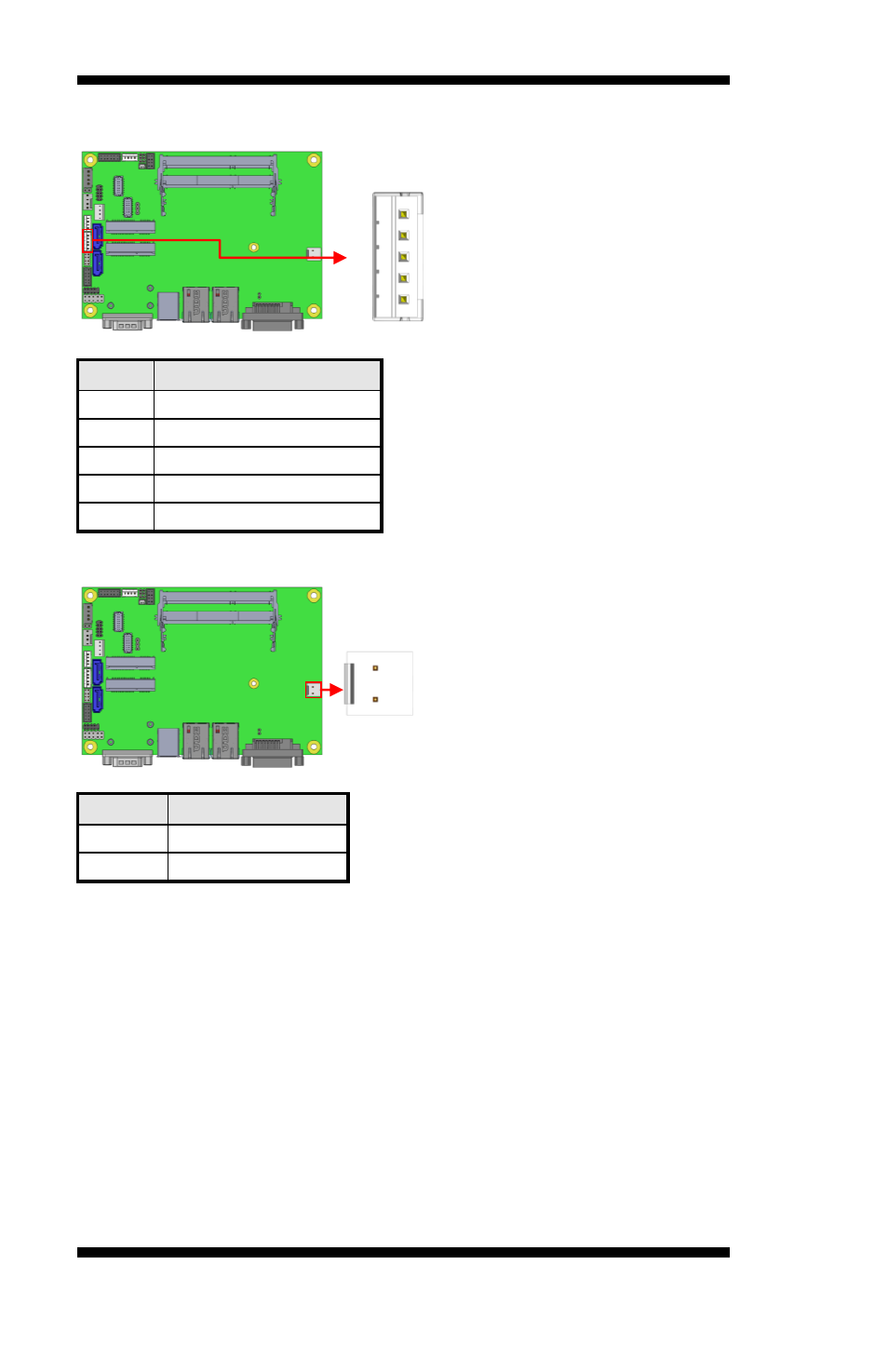

J12: Smart Battery
Pin # Signal Name
1 RST#
2 ICHSWI#
3 Ground
4 SMB_DATA
5 SMB_CLK
J13: Board Input Power Connector
Pin # Signal Name
1 +9V to +24V
2 GND
1
2
1
5
