Connectors on IB938

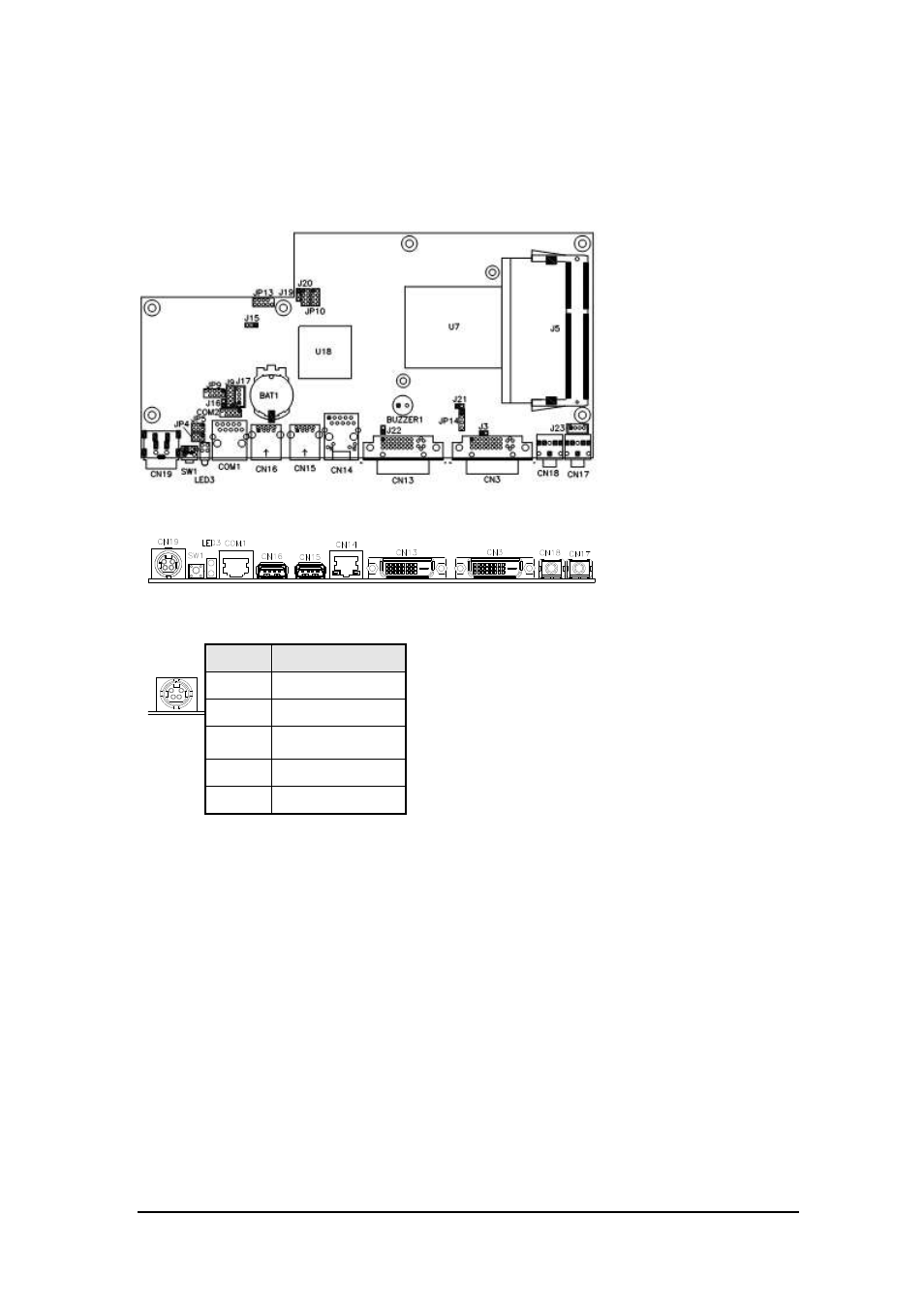

Connector Locations on IB938
CN19: DC_IN Connector (+12V Adaptor 4 Pin)
Pin #
Signal Name
1
+12V
2
+12V
3
GND
4
GND
5
GND
SW1: Power Button
LED3: Power LED (Green), HDD LED (RED)
The green LED at the bottom is power LED. The red LED on top is the HDD LED.
