Draco major
34 2011-10-11
4.3.2 Dual-Head Matrix (KVM)
Up to 8 users can have access to up to 16 CPUs in the Dual-Head
operation mode. Though a non-blocking access is given for all users that
means not user can be disturbed by any activity from another user.

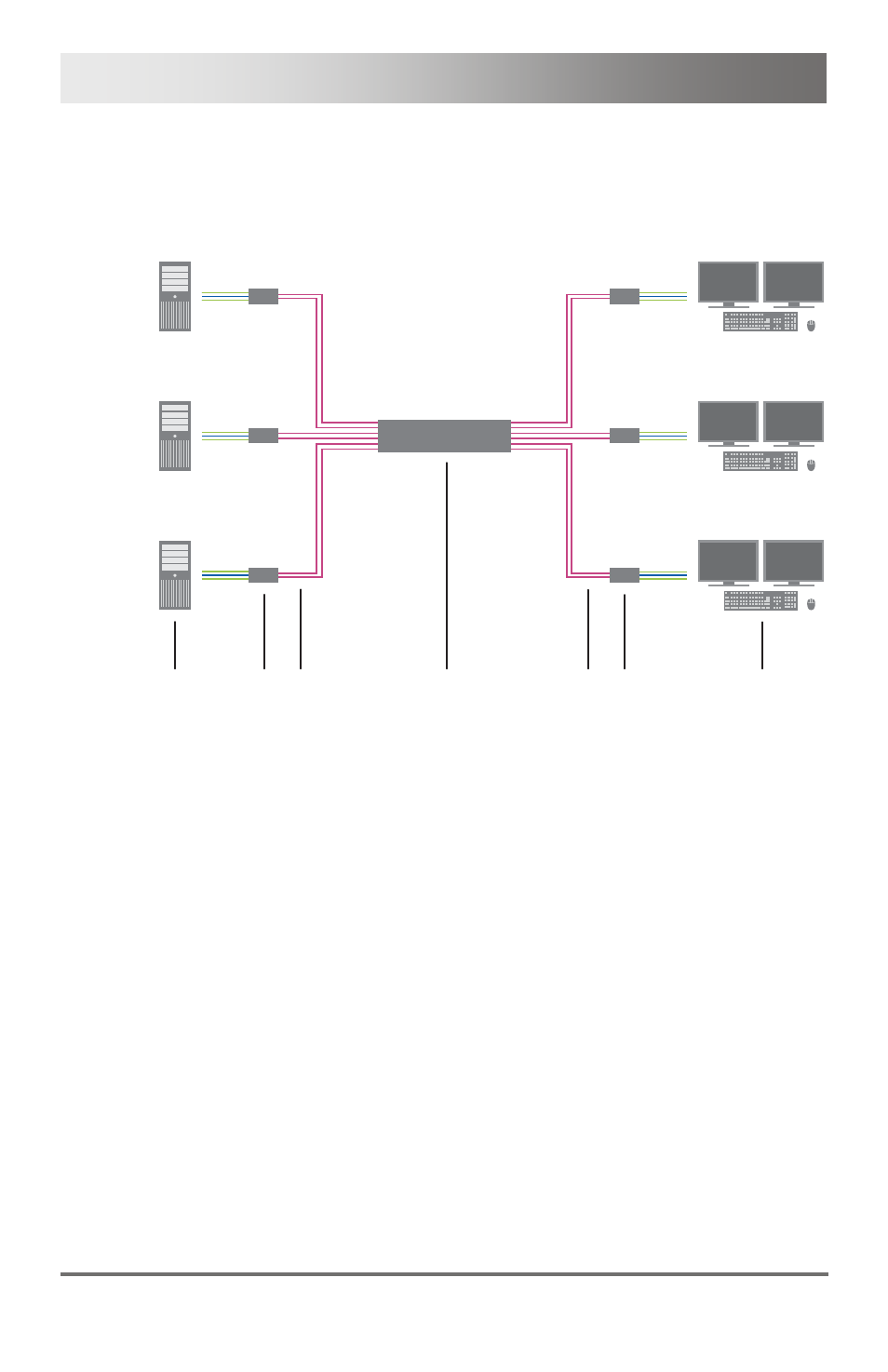

1 2 3 3 5 6 4
Quad-Head Matrix (KVM)
1 Dual-Head source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 Draco major matrix
5 CON Unit
6 Console (2x monitor, keyboard, and mouse)
If you have a Dual-Head console, you can also get access to a Single-
Head or Quad-Head CPU. However, the second monitor will remain black,
if you have a Single-Head CPU and if you have a Quad-Head CPU,
control will only be given at monitor one and two.
