2.2. SITING THE MACHINE
Site the machine on a stationary, horizontal, dry base from which there doesn´t come any dust
etc. into cooling air (front grate).
- Preferably site the machine somewhat higher above the fl oor level.
- See to that in front of the machine as well as at the rear of the machine there is at least 20 cm
free distance to allow good circulation of the cooling air through the machine.
- Protect the machine against heavy rain and in hot circumstances against direct sunshine.
Ensure free circulation of the cooling air.
Degree of protection of machine IP23 allows at its maximum the water jet coming
in 60° angle to hit machine´s outer covering.
See to that the machine is positioned away from the line of particle spray, created by grinding
tools etc.
2.3. CONNECTION TO MAIN SUPPLY
Master 5000 power source is delivered equipped with 5 m mains cable without plug. If local
electricity regulations of operating country are stating otherwise, the mains cable should be
replaced in conformity with them.
Connection of the mains cable and mounting of the plug should only be carried out
by a competent electrician.
Remove machine´s right side plate for the time you are mounting mains cable.
By change of the mains cable take into attention the following:

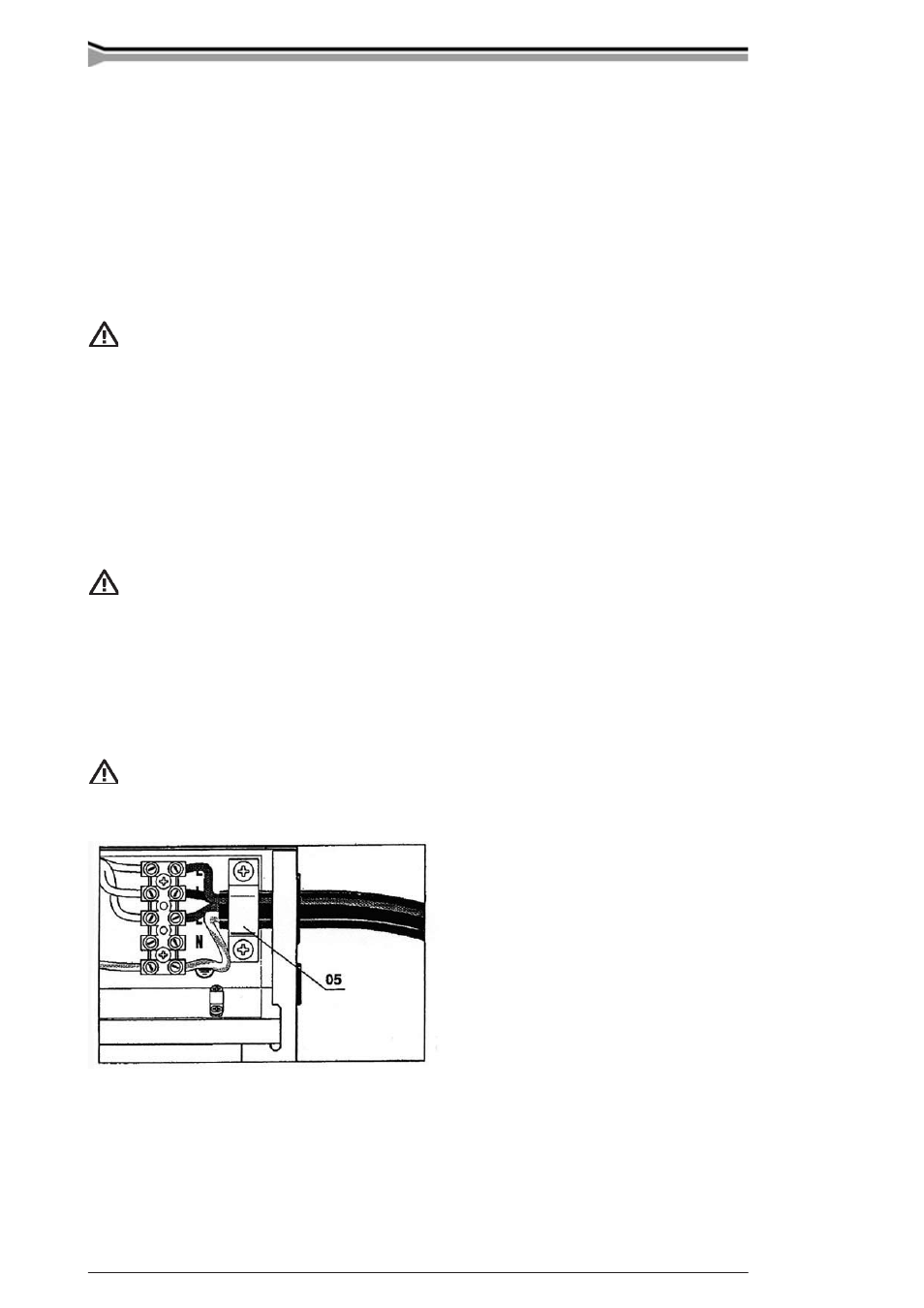

The cable is entered into the machine through the inlet ring on the rear panel of the machine and
fastened with a cable clamp. The phase conductors of the cable are coupled to connectors L1,
L2 and L3. The earth protection coloured green-yellow is coupled to connector.
If you are using 5-lead cable, you must connect neutral conductor with terminal N.
