3.5. CONTROL FOR MMA WELDING DYNAMICS
MMA welding dynamics is controlled with potentiometer R22. The potentiometer R22 has the
reference scale -9…0…9 can be seen also on the V display P22, which otherwise is showing no-
load/welding voltage. Setups for dynamics remain on the display still for approx. 3 s after you
have fi nished the control.
With control of MMA dynamics you can infl uence on arc in different situations. When you
make the arc harder, blow and at the same time spatter is increased.
-9…-1 Softer arc. Object: minimizing spatter in welding at upper end of recommended currents
for electrode.
0 Factory setup. Normal setting for all electrode types.
1…9 Harder arc. Object: eg cellulose covered electrodes (9) and thin stainless electrodes in
welding at lower end of recommended currents for electrode.

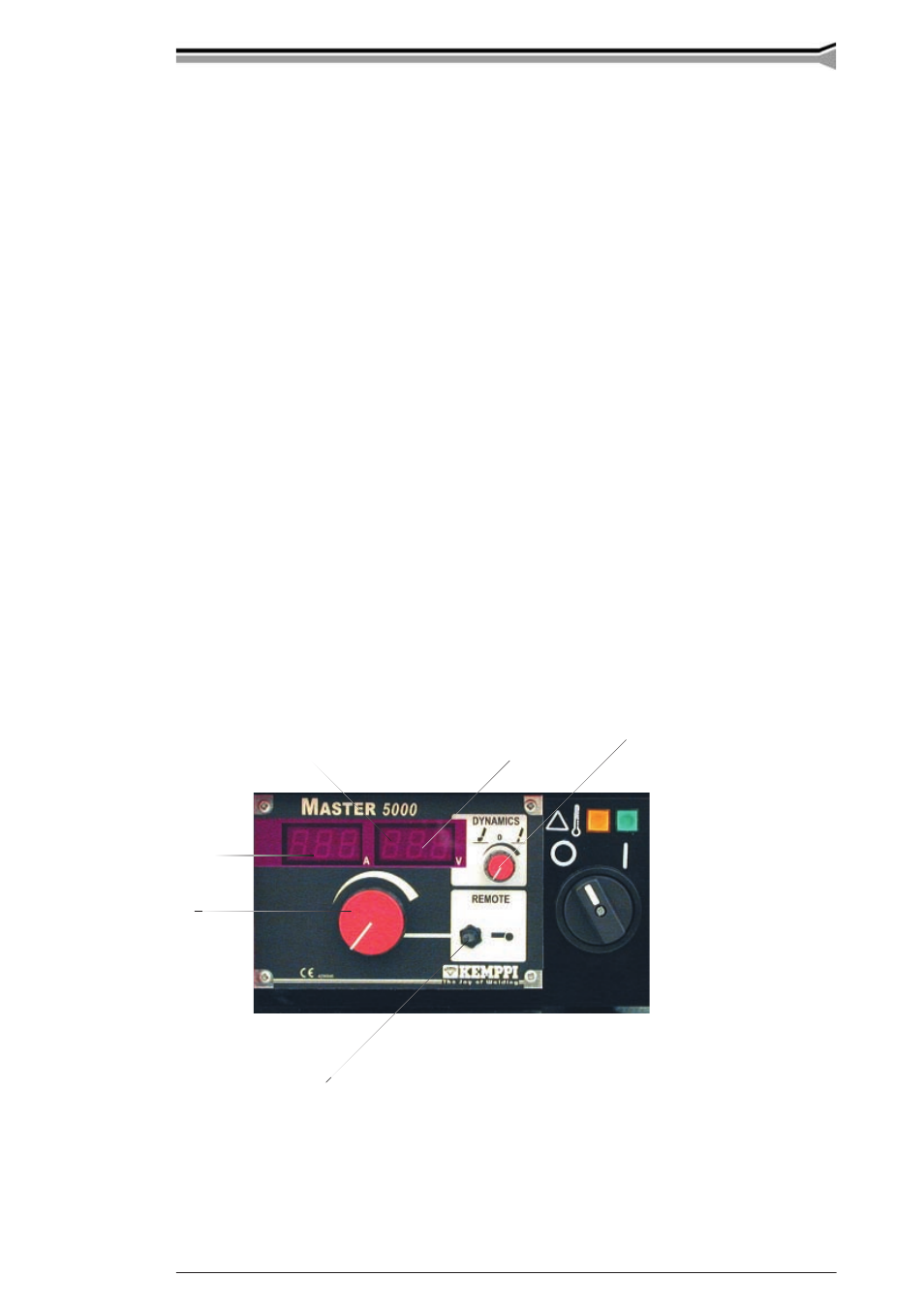

P21 Current meter
P22 Voltage meter
P23 Display for adjustment value of MMA welding dynamics -9…0…9.
R21 Adjustment of welding current
R22 Adjustment of MMA welding dynamics
S21 Selection for local/remote control
