Instructions for the installer
15

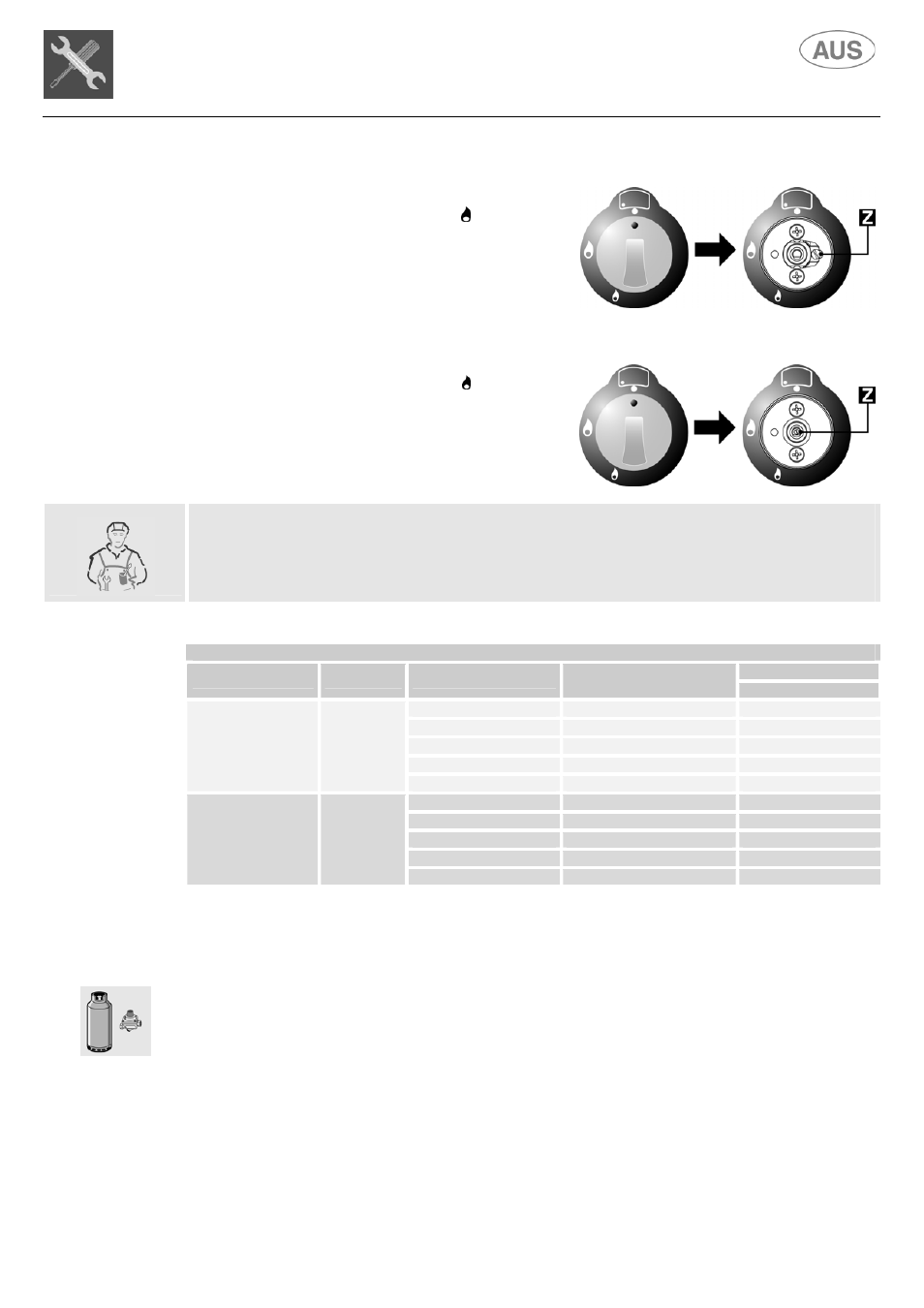

3.9.1 Minimum flow of valved cooking hob taps
• Switch on the burner and turn the control knob
towards the minimum flow position ;
• remove
the knob;
• using a screwdriver, adjust the internal screw Z
until the correct low flame is obtained;
• refit the knob.
3.9.2 Minimum flow of non-valved cooking hob taps
• Switch on the burner and turn the control knob
towards the minimum flow position ;
• remove
the knob;
• insert a small screwdriver into the rod of the tap
and adjust the internal screw Z until the correct
low flame is obtained;
• refit the knob.
• Unscrew the adjustment screw Z to increase the flow, or tighten it to reduce the flow.
• The adjustment is correct when the low flame measures approximately 3 or 4 mm.
•
For propane the adjustment screw should be tightened all the way.
•
When changing quickly from maximum to minimum flow and vice versa make sure that the
flame does not go out.
GENERAL INJECTORS TABLE
CONSUMPTION
TYPE OF GAS kPa NOZZLE NO.
BURNERS
POSITION TYPE MAX.
1.50 RAPID 11.2
1.20 SEMI RAPID 7.2
0.90 AUXILIARY 4.1
1.60 TRIPLE-RING 12.7
NATURAL GAS 1.00
1.20 FISH KETTLE 7.2
0.95 RAPID 11.5
0.73 SEMI RAPID 7.0
0.53 AUXILIARY 3.6
1.00 TRIPLE-RING 12.7
LPG 2.75
0.75 FISH KETTLE 7.3
3.10 Connecting to LPG
Use a pressure regulator and connect to the cylinder in compliance with the guidelines set out in
standards regulations in force.
When converting from Natural Gas to Propane ensure that the NG regulator is removed and
replaced with the Test Point Assembly. A gas regulator suitable for a supply pressure of 2.75kPa
should be part of the gas tank supply and should be adjusted with the Wok burner operating at
maximum. Replace the old data plate with one which is suitable for the type of gas for which the
appliance has been regulated.
