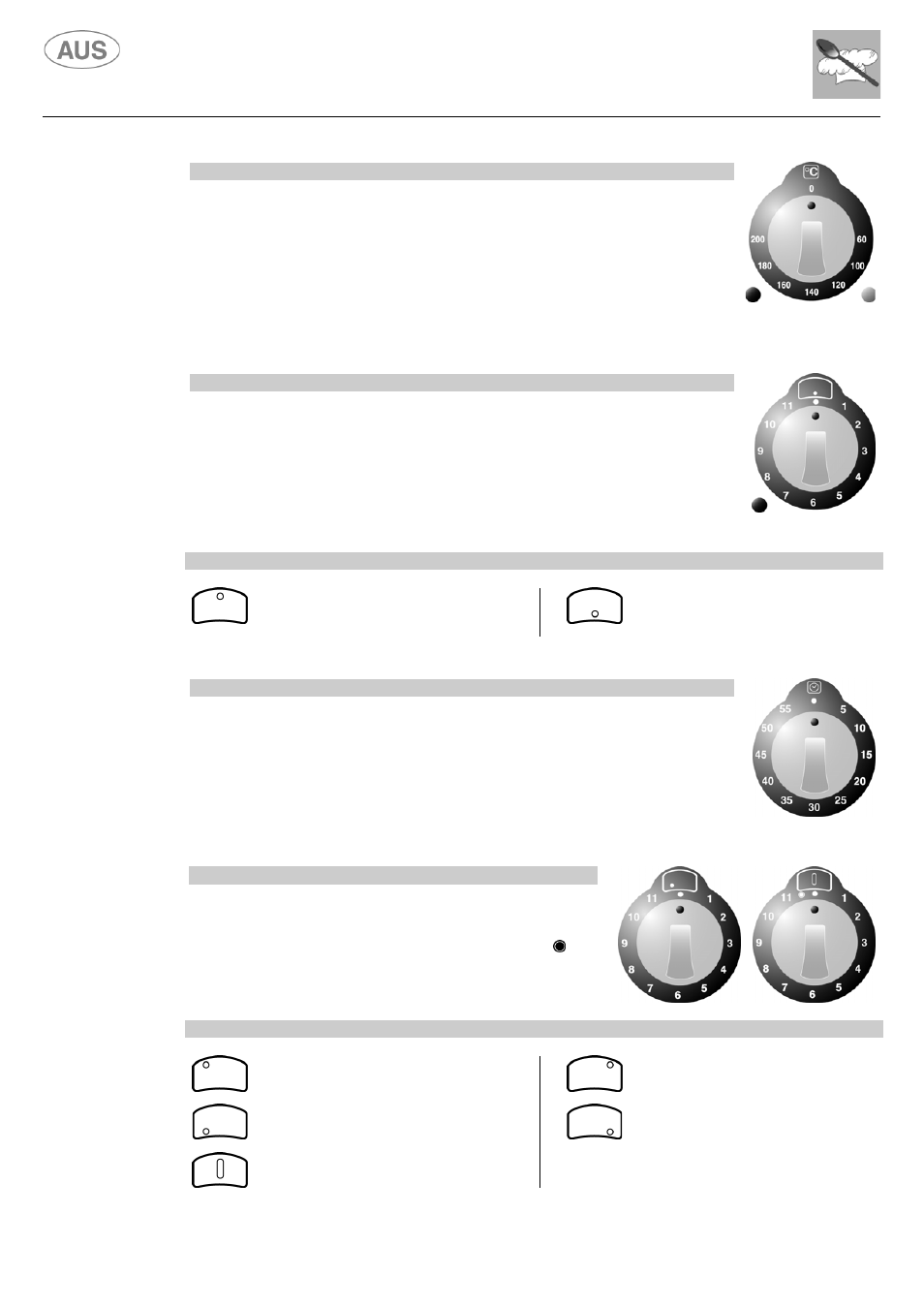

DESCRIPTION OF DEEP FRYER KNOB
The knob of the thermostat that controls the temperature of the heating
element can be adjusted between 0° and 200°C. There are also two warning
lights: the red light signals the deep fryer is working; the orange light
switches on while the appliance is heating. When the preset temperature is
reached, the orange light switches off. If the temperature of the oil should
decrease while frying, the appliance automatically begins to heat and the
orange light switches on until the temperature set on the thermostat knob is
reached.
DESCRIPTION OF FRY-TOP / STEAK GRILL AND GRILL KNOB
F
RY
-
TOP
/
STEAK GRILL
: is equipped with differentiated heating. The entire
cooking surface can be used, or only one of the two halves, front or rear. The
knobs that regulate the energy individually control the temperature of the two
heating elements. A red light indicates that the appliance is heating.
G
RILL
:
two warning lights give essential information on how the appliance is
working. The orange light switches on to indicate that the appliance is
powered (ON). A red light indicates that the heating element is heating up.
LAYOUT OF HEATING ELEMENTS - Description of symbols
REAR
FRONT
DESCRIPTION OF TIMER KNOB (DEEP FRYER AND GRILL)
A spring-loaded timer with bell makes checking the frying time easier. Turn
the knob all the way clockwise to wind the timer. It is possible to set the
required time up to a maximum of 60 min. The bell rings briefly when the
preset time has elapsed. The timer has no effect on the heating of the deep
fryer or the grill.
DESCRIPTION OF VITROCERAMIC HOB KNOBS
Besides the normal knobs that regulate the energy, the
vitroceramic hob is equipped with knobs for differentiated
heating. Settings from 1 to 11 control the heating of the
internal element, setting the knob to the symbol
the
outer element also operates.
LAYOUT OF HEATING ELEMENTS - Description of symbols
REAR LEFT
REAR RIGHT
FRONT LEFT
FRONT RIGHT
CENTRAL
