12
It is essential that you install an insulation kit between the oven and the hob (available
from your dealer’s After Sales Service). This arrangement restricts installation of the
oven to the lower position in the unit.
,,,,,
,,,,,
30 cm
,
,,
,,
,,
5 cm
Installation options
●
above an empty unit or drawer
●
above an oven of another brand
●
above an oven of the same brand

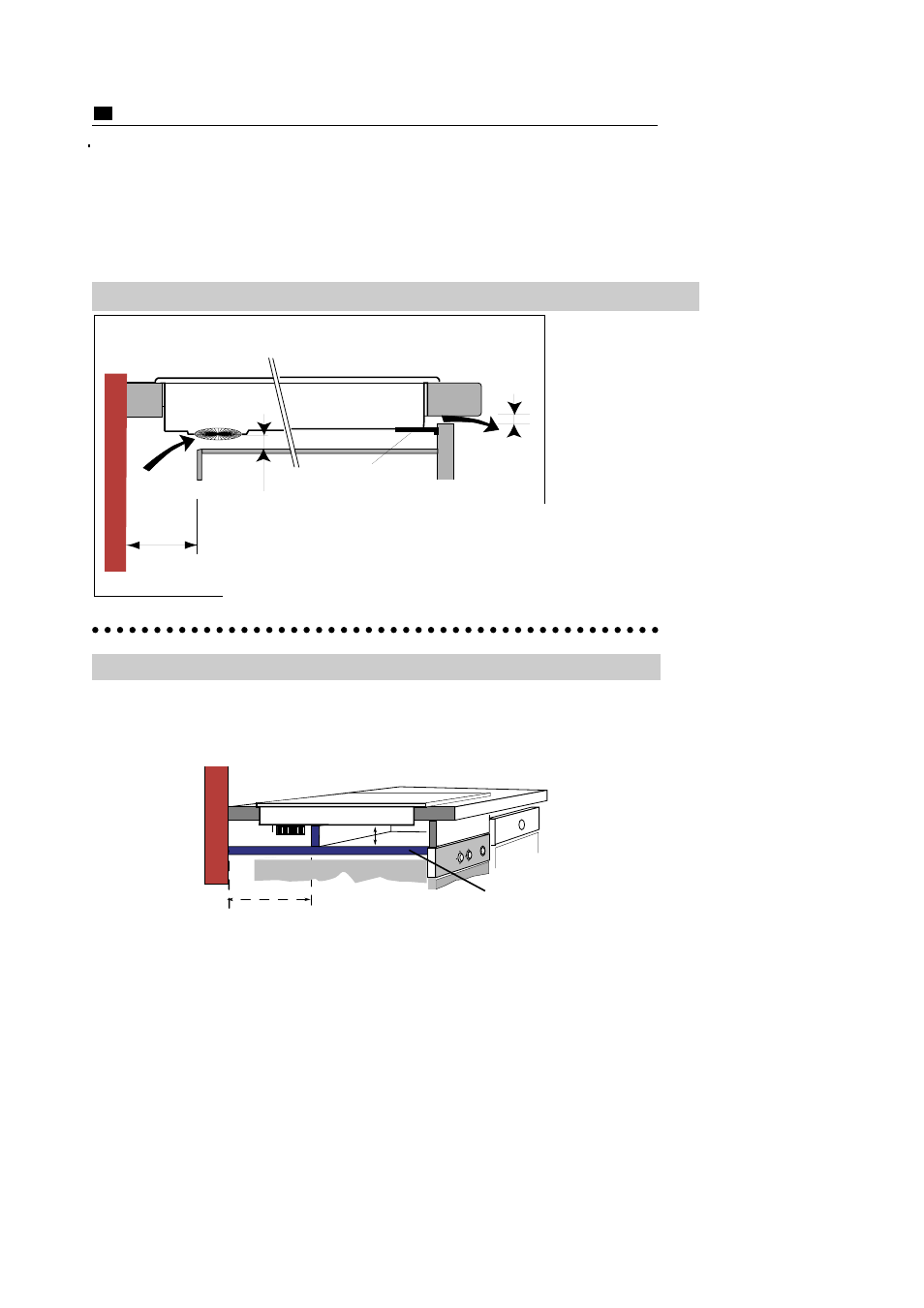

Your induction hob must always be well-ventilated.
Make sure that the flow of air through the ventilation grille at the back is completely
unobstructed.
air
gap
80mm
front of unit
AIR OUTLET
AIR INLET
5 mm
4 mm
V
Above an empty unit or drawer
Above an oven of another brand
75X 1652
Fitting the hob :
- Unscrew the screws V on the hob air guide.
- Place your hob in the cut-out.
- Pull the air guide out until it comes into contact with the front (if
this is a door or a drawer, pull the guide out more than necessary
and push it back by closing the door or drawer) then replace the
screws V on the guide
