14

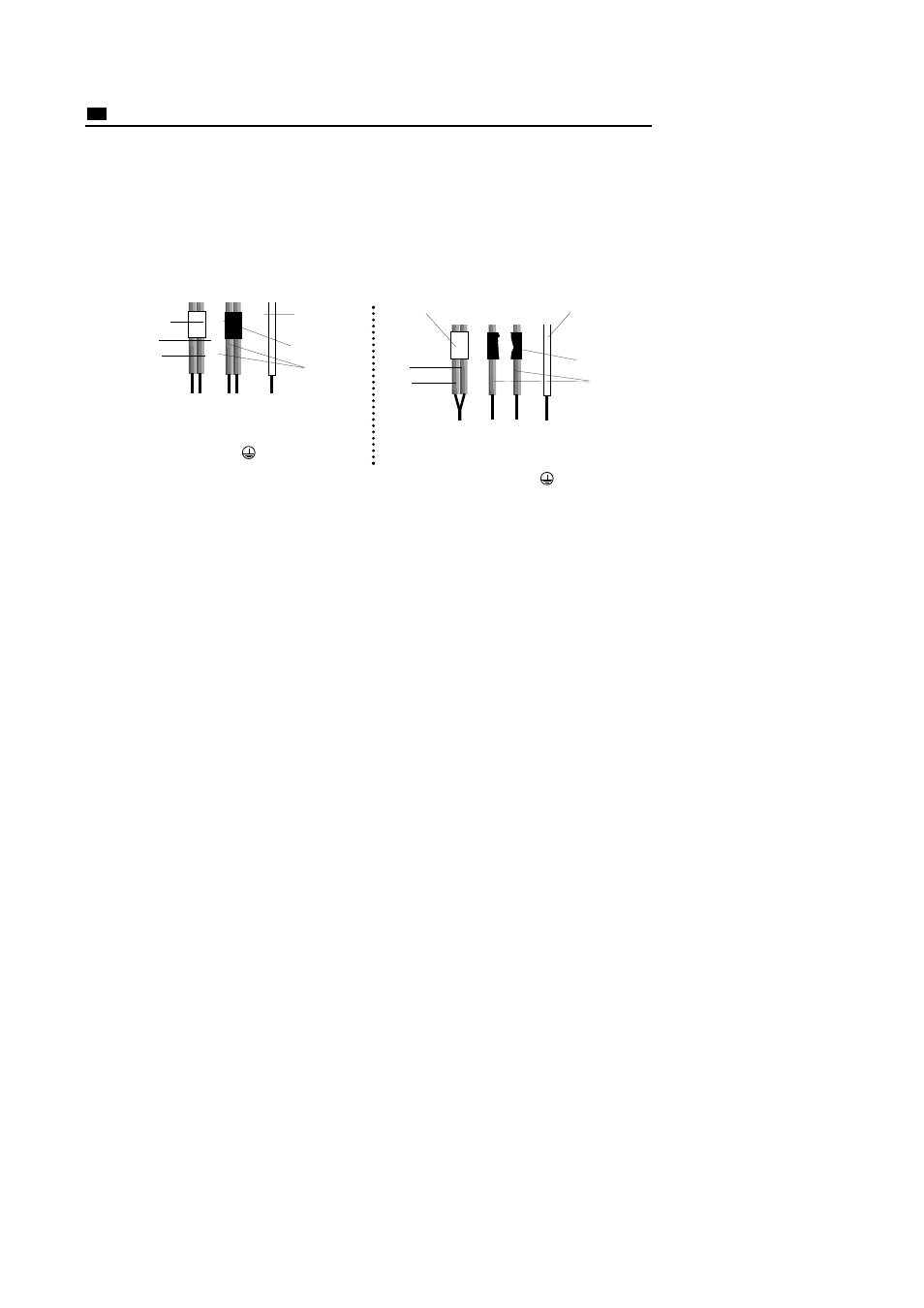

Neutral Earth Live
N L
- 220/240 V single phase
Connect the three wires to your mains supply, in
accordance to the colour of the wires.
Remarks
When your hob is first connected to the power supply or after a long power cut, a code lights
up on the keypad.
It disappears automatically after about 30 seconds or the first time any of the touch controls
on the keypad is pressed. This display is normal and reserved for the use, as required, of
your After Sales Service.
When connecting to a 400 V ~ three phase mains supply, if your hob malfunctions, check
that the neutral wire has been connected properly. These precautions will also protect your
other electronic appliances.
,
,
@
@
P
P
,
,
@
@
P
P
,
,
@
@
P
P
Neutral Earth Live 2 Live 1
N L1 L2
NB
separate the 2
live wires L1, L2
before
connecting
Blue
Blue
Green / yellow
Blue sleeve
Black
Black sleeve
- 400 V 2N three phase
Connect the four wires to your mains supply, in
accordance with the colour of the wires.
Your mains fuse must be: 32 amp
,
,
@
@
P
P
,
,
@
@
P
P
,
,
@
@
P
P
Green / yellow
Blue
Blue
Blue sleeve
Black
Black sleeve
Electrical Connection
These hobs are supplied with an 05 VVF power supply cable (cross-section 1.5 mm 2 ), with
5 cores (of which one for the earth: yellow/green) and should be connected to the mains by
a socket which complies with the EEC 7 regulations or by using a double-pole circuit
breaker with a contact gap of at least 3 mm.
If this power supply cable is damaged, or if you wish to change it, it can only be replaced by
your After Sales Service as this requires specialist tools.
